2019 Suzuki VZ1500L9 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2019 Suzuki VZ1500L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

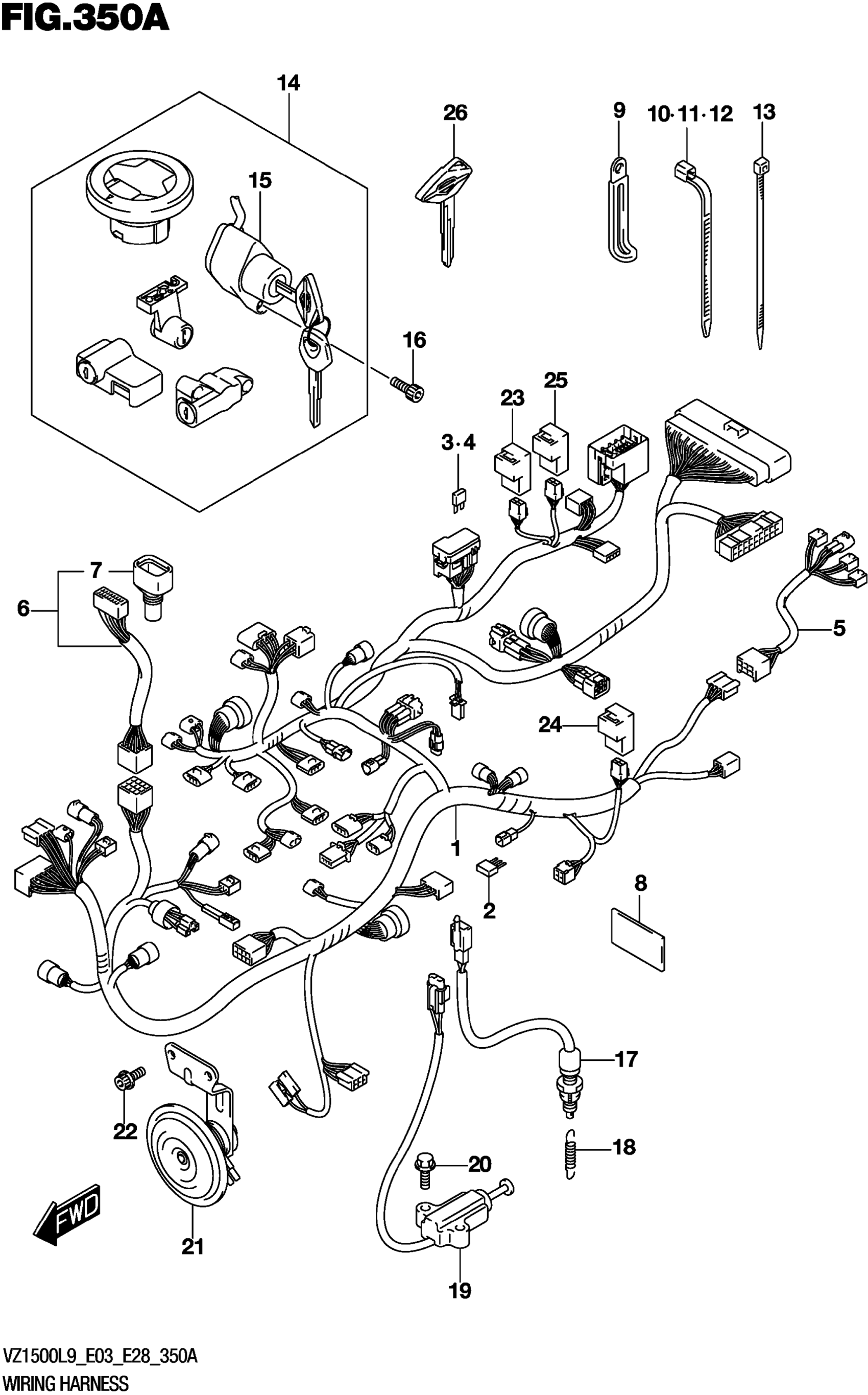

2019 Suzuki VZ1500L9 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS

36610-40HF0

—
Out of stock

2

.DIODE

36611-38A10

1
Out of stock

3

.FUSE (10A)

09481-10501

4
Out of stock

4

.FUSE (15A)

09481-15501

2
Out of stock

5

WIRE

36858-40H00

1
Out of stock

6

WIRE

36859-40H00

1
Out of stock

7

.COVER,SPEEDOMETER COUPLER

36618-33E00

1
Out of stock

8

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

1
Out of stock

9

CLAMP (L:45)

09404-06429

3
Out of stock

10

CLAMP (L:125)

09407-14403

3
Out of stock

11

CLAMP (L:190)

09407-19401

4
Out of stock

12

CLAMP (L:95)

09407-10403

3
Out of stock

13

CLAMP (L:145)

09407-14407

2
Out of stock

14

LOCK SET

37000-40880

—
Out of stock

15

SWITCH ASSY,IGN This part replaces 37110-40H31.

37110-40H32

1
Out of stock

16

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

17

SWITCH ASSY

37740-19F00

1
Out of stock

18

SPRING

09443-06077

1
Out of stock

19

SWITCH ASSY,SID This part replaces 37840-22H00.

37840-22H01

1
Out of stock

20

BOLT

01547-0620A

2
Out of stock

21

HORN ASSY

38500-40H00

1
Out of stock

22

BOLT

07120-0612B

2
Out of stock

23

RELAY ASSY | FOR FUEL PUMP

38740-24X50

1
Out of stock

24

RELAY ASSY | FOR FAN MOTOR

38740-24X50

1
Out of stock

25

RELAY ASSY | FOR HEADLAMP

38740-24A00

1
Out of stock

26

KEY,BLANK (BOULEVARD) | OPT

37146-10F00

1
Out of stock
