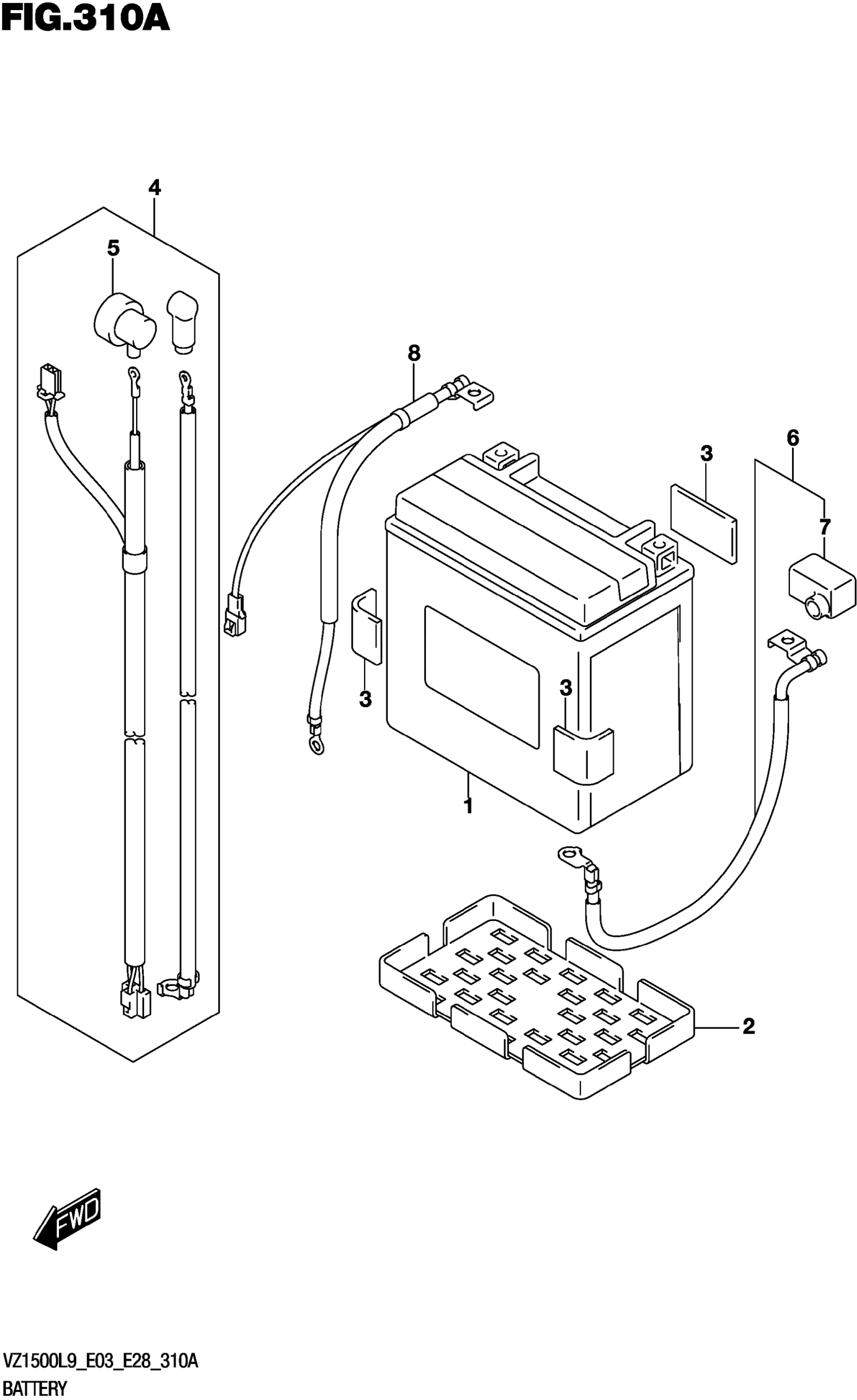

Find the part on the Battery diagram for your 2019 Suzuki VZ1500L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki VZ1500L9 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (FTZ16-BS,12V18A | FTZ16-BS, 12V18.9AH

33630-31G01

1
Out of stock

2

PROTECTOR,BATTERY

33652-16G00

1
Out of stock

3

CUSHION (30X50X3)

33652-36000

3

$2.87

In stock

4

WIRE

33810-40H01

1
Out of stock

5

.CAP,OIL PRESSURE SWITCH

36618-31J00

1
Out of stock

6

WIRE

33820-40H00

1
Out of stock

7

.CAP,BATTERY PLUS

33624-16E00

1
Out of stock

8

WIRE

33860-40H00

1
Out of stock
