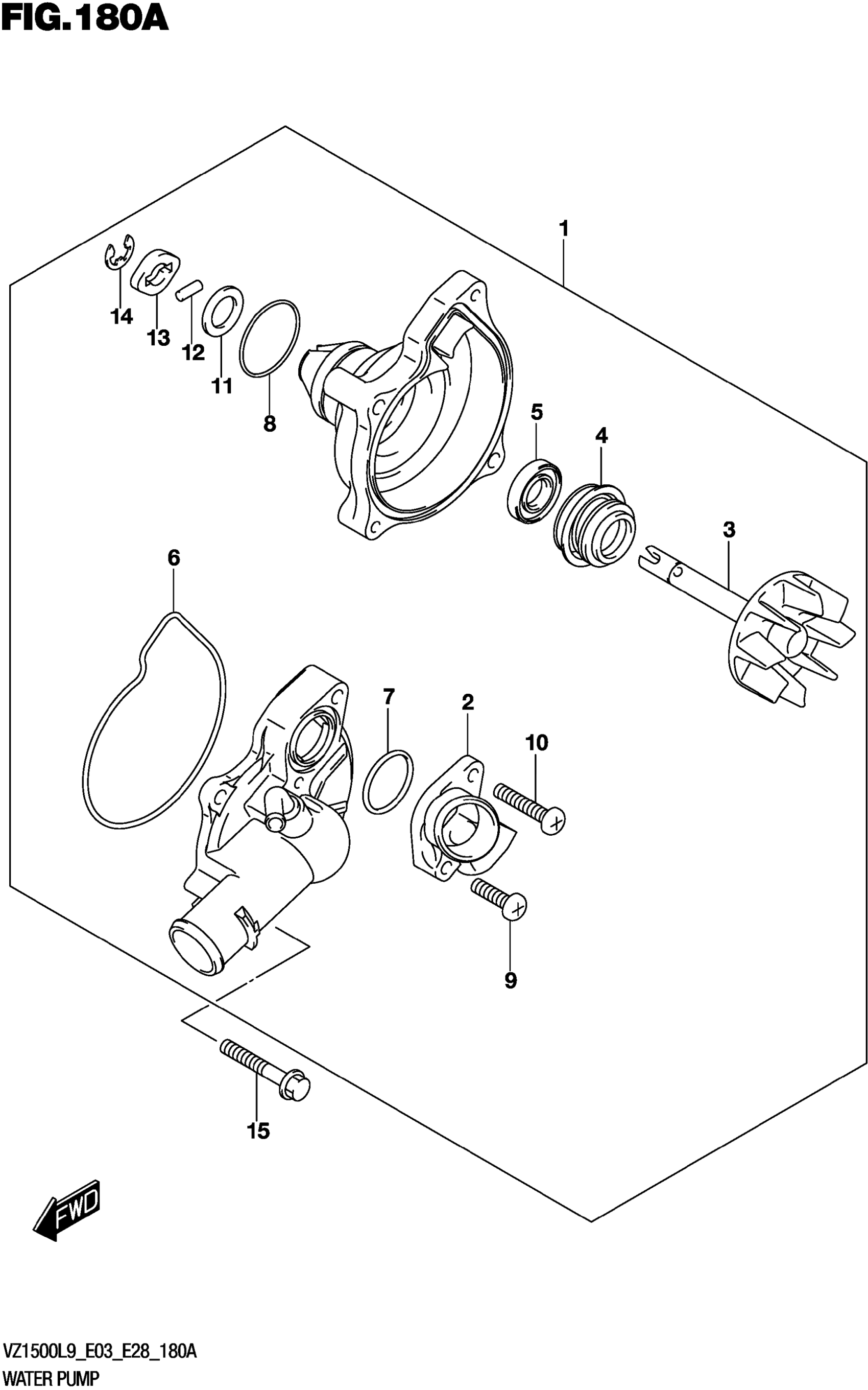

Suzuki VZ1500L9 (2019) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-40H00.

17400-40H01

$297.50

2

.CONNECTOR

17412-40H00

Unavailable

3

.IMPELLER

17491-40H00

Unavailable

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

5

.SEAL,OIL (10X21X5)

17461-48G00

$13.23

6

O RING This part replaces 17418-40H00.

17418-40H01

$8.65

7

.O RING This part replaces 17417-38A00.

17417-38A01

$3.23

8

.O-RING

17435-33400

$15.29

9

.SCREW

02112-0620A

$1.49

10

SCREW

02112-0635A

Unavailable

11

.WASHER

17432-07G00

$2.60

12

.PIN

17482-03G00

$2.63

13

.CAP

17432-11H00

Unavailable

14

.E-RING

08332-1108A

$1.78

15

BOLT

01547-0645A

$2.42
