Description

Price

1

GEAR

24911-40H00

$352.87

2

BOLT

24912-06J00

Unavailable

3

WASHER

08211-12343

Unavailable

4

GEAR

24921-40H00

Unavailable

5

SPACER, PRIMARY SHAFT

21102-31G00

$34.45

6

SHIM SET | T:0.80/0.85/0.90/0.95/1.00/1.05/1

24935-40820

$102.22

6

SHIM SET | .10/1.1

24935-40820

$102.22

7

HOUSING

24941-40H00

Unavailable

8

STOPPER,SEC DRIVEN BEARING

24942-26D00

$81.27

9

COUPLING

24943-40H00

Unavailable

10

SHIM SET | T:0.30/0.35/0.40/0.50/0.60

24945-40810

$48.82

11

SHAFT

24961-40H00

Unavailable

12

SPACER

24962-40H00

Unavailable

13

BOLT (10X30)

09106-10087

$6.75

14

NUT

09159-16003

$4.33

15

WASHER (16.5X36X4.0)

09160-16040

$12.75

16

BEARING (28X68X18) | REAR

09262-28014

$74.08

17

BEARING (32X50X22) | FRONT

09263-32021

$153.53

18

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.01

19

OIL SEAL (38X54X6)

09283-38011

$19.48

20

OIL SEAL (76X84X7)

09286-84001

$25.08

21

PIN (7X12)

09202-07005

$7.28

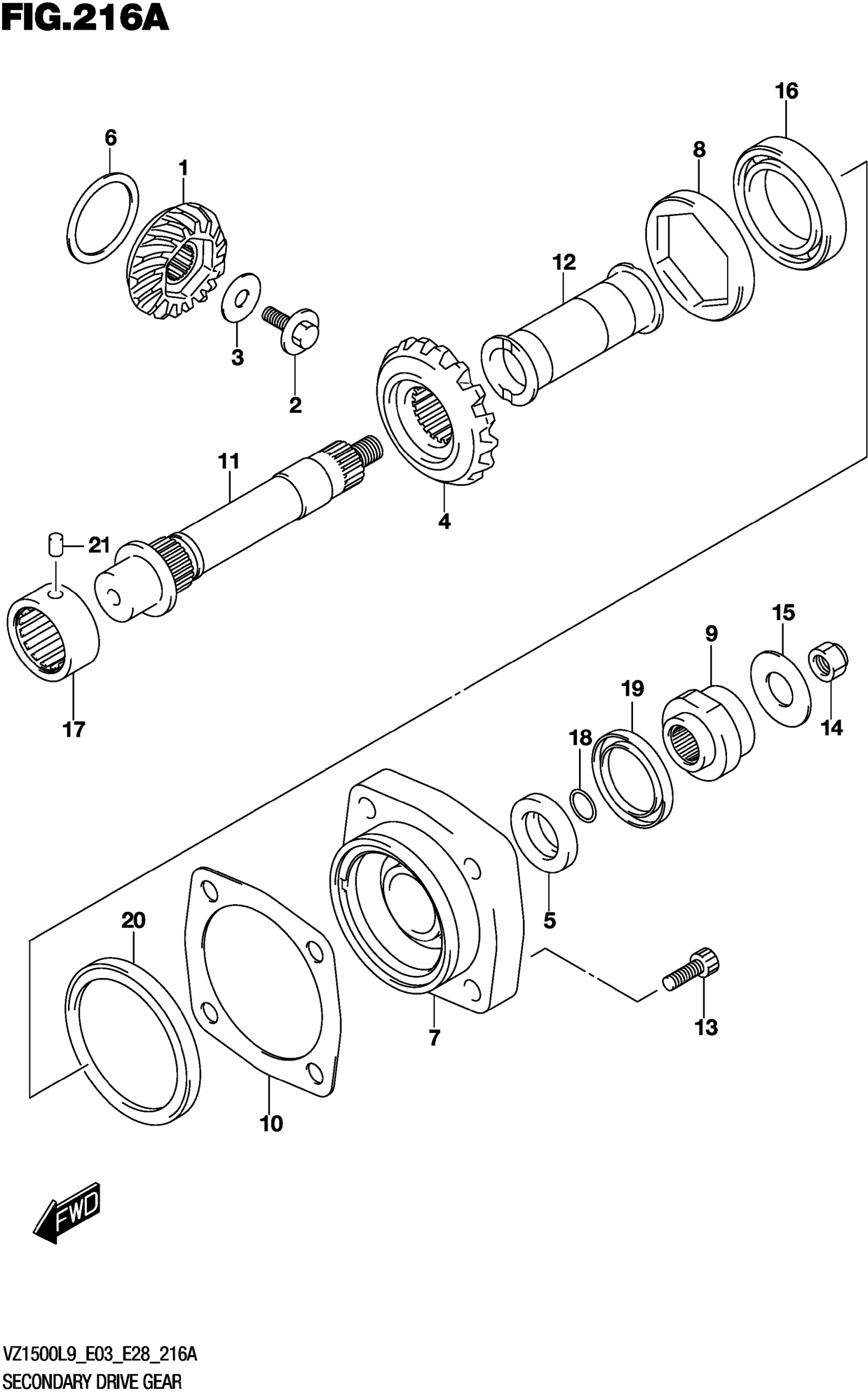

Suzuki VZ1500L9 (2019) SECONDARY DRIVE GEAR Diagram

GEAR

BOLT

WASHER

GEAR

SPACER, PRIMARY SHAFT

SHIM SET | T:0.80/0.85/0.90/0.95/1.00/1.05/1

SHIM SET | .10/1.1

HOUSING

STOPPER,SEC DRIVEN BEARING

COUPLING

SHIM SET | T:0.30/0.35/0.40/0.50/0.60

SHAFT

SPACER

BOLT (10X30)

NUT

WASHER (16.5X36X4.0)

BEARING (28X68X18) | REAR

BEARING (32X50X22) | FRONT

.O-RING (D:2.4,ID:24.7)

OIL SEAL (38X54X6)

OIL SEAL (76X84X7)

PIN (7X12)
