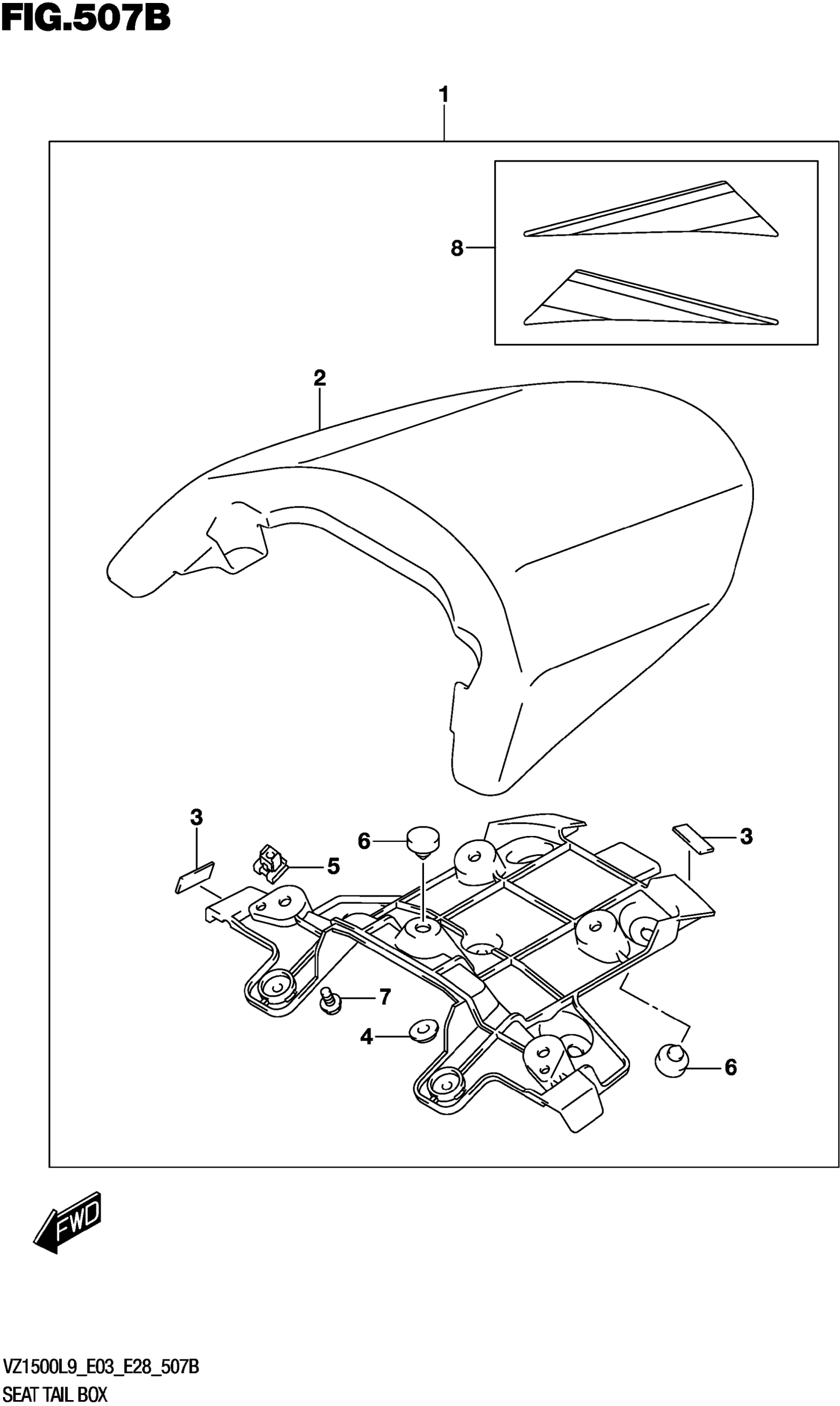

Suzuki VZ1500L9 (2019) SEAT TAIL BOX 507B Diagram

#

Description
Price

1

BOX ASSY,SEAT TAIL (GRAY)

45500-40H00-YLF

$301.98

2

BOX SET, SEAT TAIL (BLACK)

45550-40H00-YVB

$260.11

3

CUSHION

45516-01H00

$6.00

4

.COLLAR

45553-48G00

$11.18

5

NUT

09148-06018

$2.90

6

CUSHION

09321-10012

$2.80

7

BOLT

01550-0612A

$1.97

8

(BLACK,GRAY,RED)

68160-40H00-ACD

$71.43

8

(BLACK,GRAY,RED)

68160-40H00-ACD

$71.43
