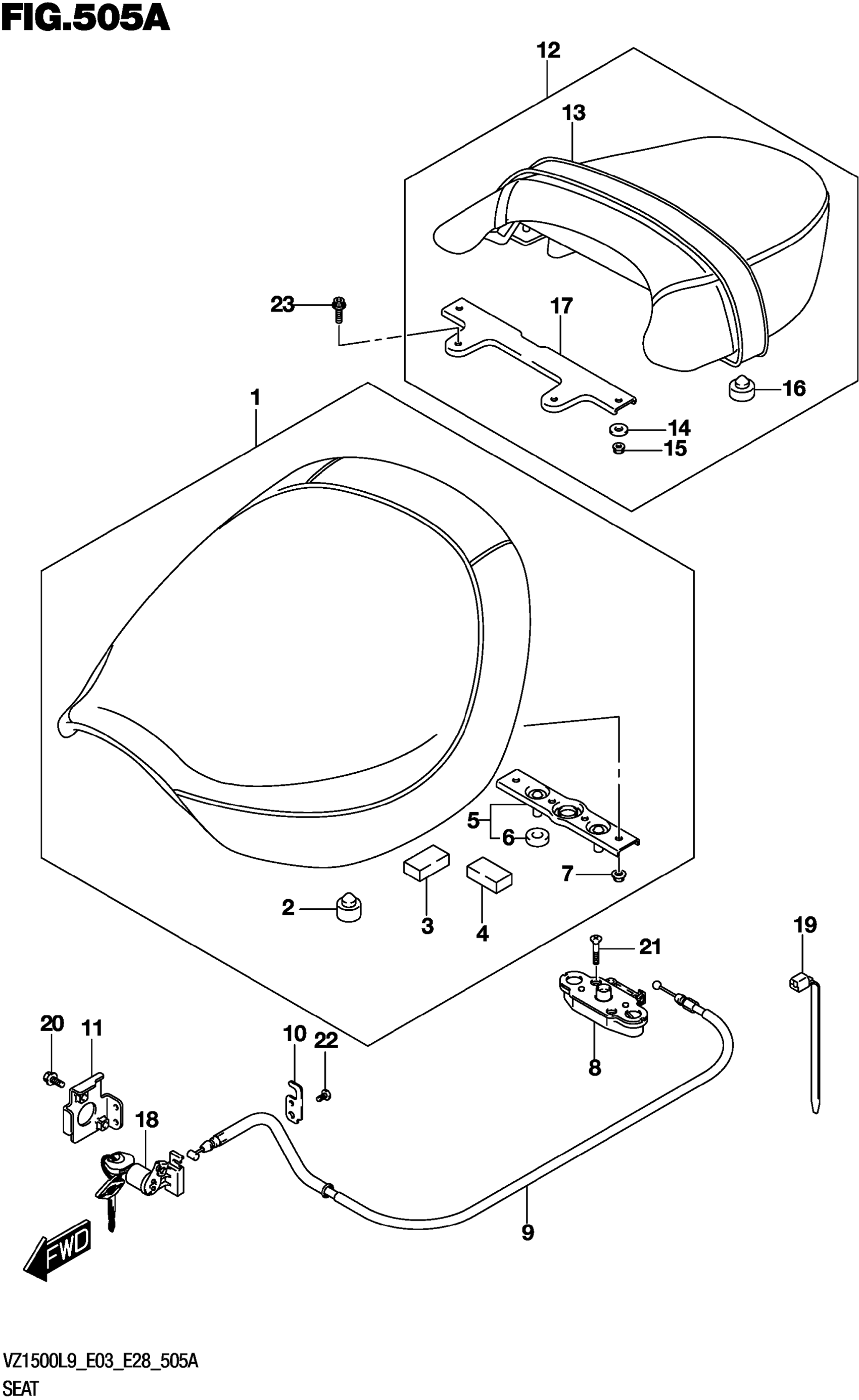

Suzuki VZ1500L9 (2019) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-40H10-DCG.

45100-40H11-DCG

$322.50

2

.CUSHION

09321-10011

$2.91

3

.CUSHION

45148-40H00

Unavailable

4

.CUSHION

45149-40H00

Unavailable

5

.STRIKER,SEAT LOCK

45290-42F02

$36.72

6

..CUSHION

45213-42F00

$5.60

7

NUT

08319-3106A

$2.03

8

BRACKET,SEAT SUPPORT

45220-47H00

$138.38

9

CABLE

45280-40H01

Unavailable

10

PLATE

45288-40H00

Unavailable

11

BRACKET

45289-40H00

Unavailable

12

SEAT ASSY,PILLI This part replaces 45300-40H00-48H.

45300-40H01-48H

$262.35

13

.BAND ASSY (BLACK)

45180-40H00-48H

Unavailable

14

.WASHER (6.5X20X1.6)

09160-06088

$1.65

15

NUT

08319-3106A

$2.03

16

.CUSHION (11.5X22X20)

09321-10002

$2.22

17

.BRACKET

45315-40H00

Unavailable

18

LOCK ASSY

95700-31841

$78.33

19

CLAMP (L:190)

09407-19401

$3.05

20

BOLT

01547-0616A

$2.03

21

SCREW

02122-0630A

$1.74

22

.SCREW

02142-0512A

$1.49

23

BOLT

07120-0616A

$2.53
