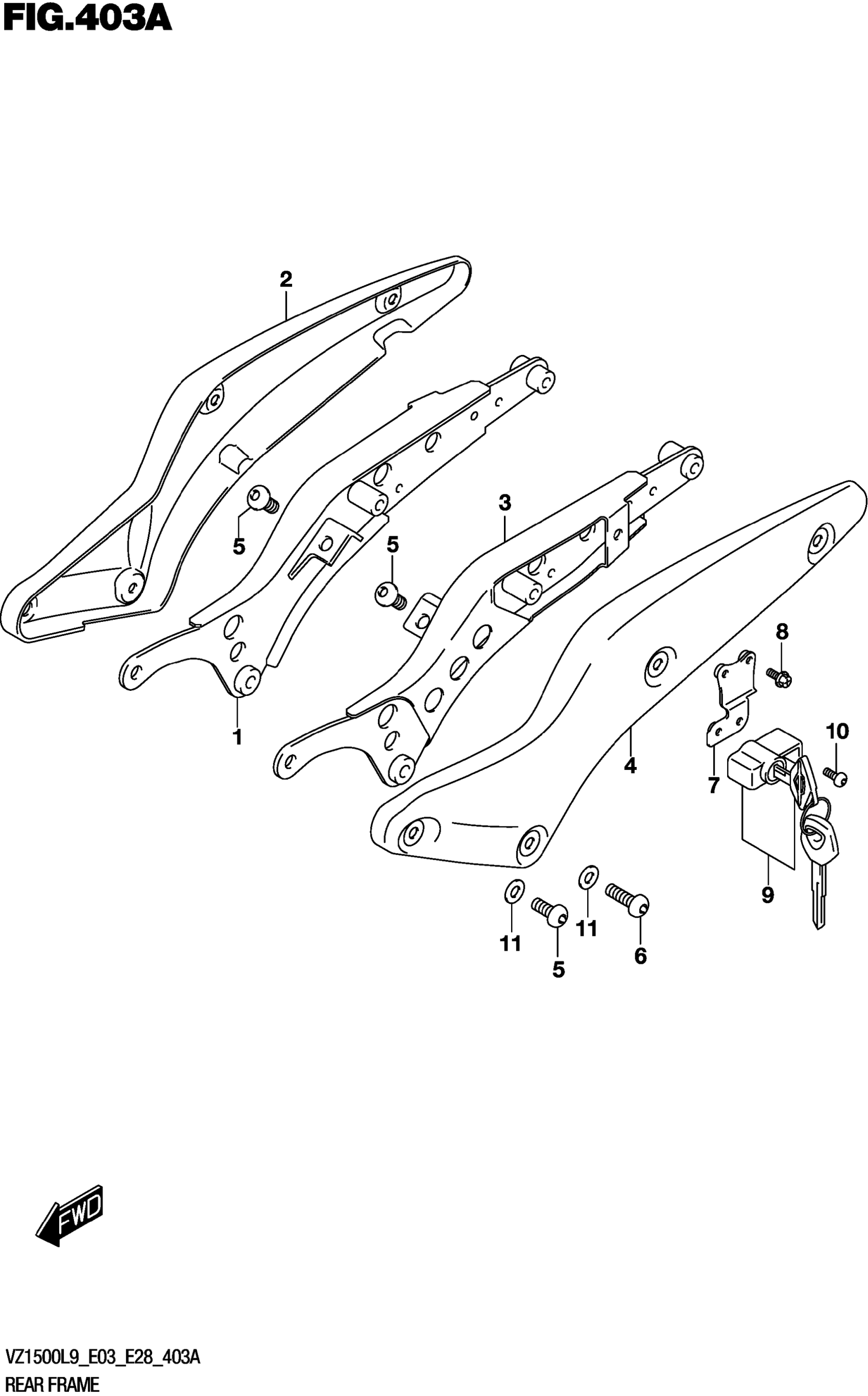

Suzuki VZ1500L9 (2019) REAR FRAME Diagram

#

Description
Price

1

FRAME

42650-40H01

$236.42

2

PLATE

42651-40H10

Unavailable

3

FRAME

42660-40H01

Unavailable

4

PLATE

42661-40H10

Unavailable

5

BOLT (10X25)

09139-10003

$6.93

6

BOLT (10X35)

09139-10005

$9.50

7

BRACKET

95710-40H00

Unavailable

8

SCREW

02162-0612A

$2.05

9

LOCK SET HELMET

95700-41821

$152.77

10

SCREW (6X14)

09139-06089

$3.03

11

WASHER (10.5X19X2.0)

09160-10082

$1.61
