Description

Price

1

FENDER,REAR (GRAY,BLACK)

63110-40H10-AA3

$360.12

2

.TAPE SET,REAR FENDER

68170-40H00-ACD

$69.03

2

.TAPE SET,REAR FENDER

68170-40H00-ACD

$69.03

3

.EMBLEM,"SUZUKI" (BLACK) This part replaces 68281-24F10-019.

68281-24F11-019

$10.89

4

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

5

BRACE

63140-40H10

$431.08

6

BOLT (8X12)

01550-0812A

$2.32

7

BOLT (8X70)

09106-08182

$4.17

8

BOLT (8X50)

09106-08183

$3.70

9

NUT

08316-1008A

$2.45

10

MUDGUARD

63112-40H00

Unavailable

11

CLIP

09409-06318

Unavailable

12

CUSHION

09320-10045

$3.76

13

SPACER (6.5X10X9.4)

09180-06286

$2.50

14

SCREW (6X16)

09139-06139

$3.23

15

CUSHION (9X18X9.5)

09320-09016

$1.97

16

SCREW (6X20)

09139-06190

$4.17

17

EXTENSION

63311-40H00

$96.22

18

CUSHION

47161-29B00

$7.50

19

BOLT (6X12)

09111-06107

$2.60

20

SCREW (6X12)

09139-06144

$2.50

21

WASHER

08322-0108A

$1.92

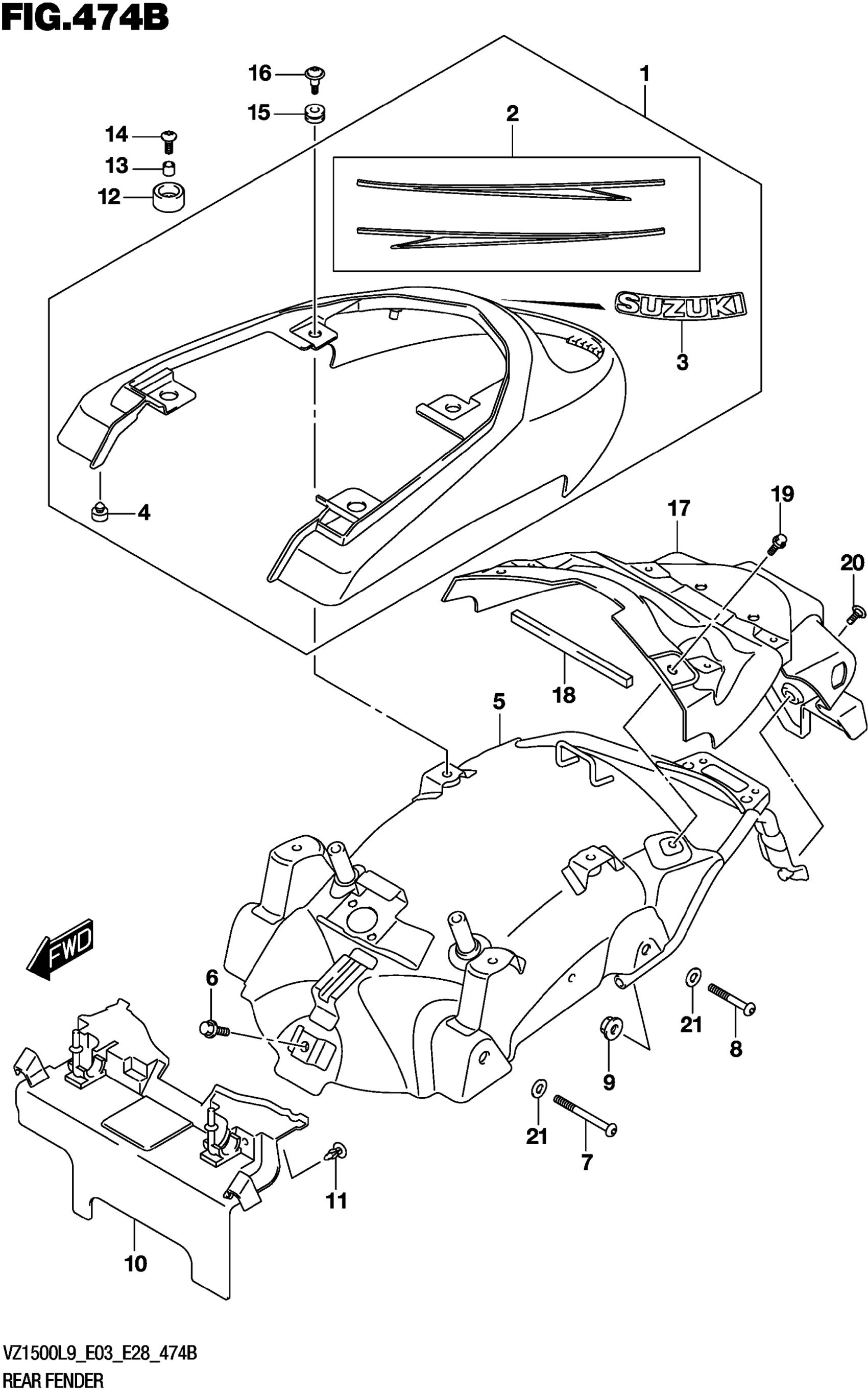

Suzuki VZ1500L9 (2019) REAR FENDER 474B Diagram

FENDER,REAR (GRAY,BLACK)

.TAPE SET,REAR FENDER

.TAPE SET,REAR FENDER

.EMBLEM,"SUZUKI" (BLACK) This part replaces 68281-24F10-019.

PLUG (OD:10) This part replaces 09250-06012.

BRACE

BOLT (8X12)

BOLT (8X70)

BOLT (8X50)

NUT

MUDGUARD

CLIP

CUSHION

SPACER (6.5X10X9.4)

SCREW (6X16)

CUSHION (9X18X9.5)

SCREW (6X20)

EXTENSION

CUSHION

BOLT (6X12)

SCREW (6X12)

WASHER
