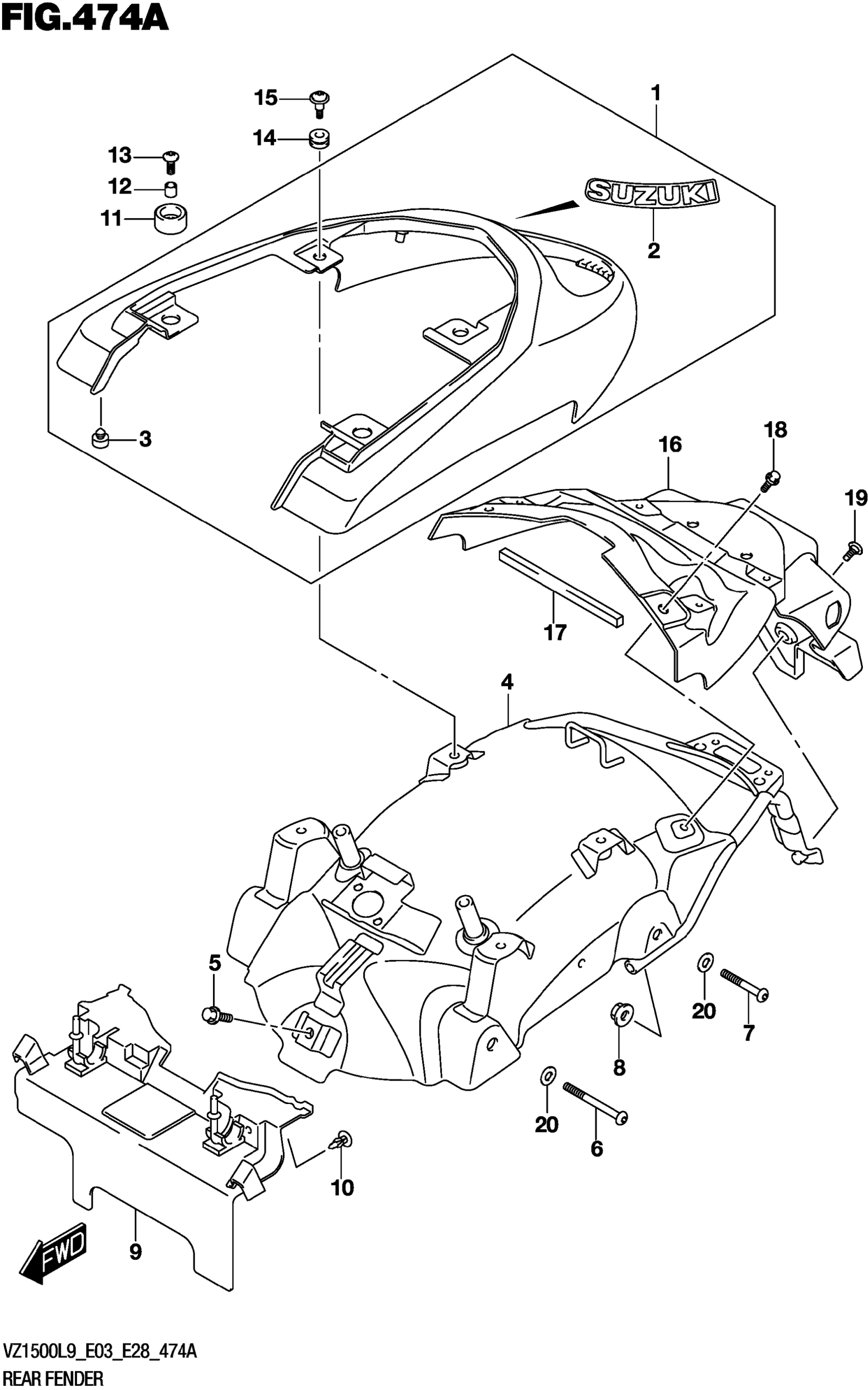

Suzuki VZ1500L9 (2019) REAR FENDER 474A Diagram

#

Description
Price

1

FENDER,REAR This part replaces 63110-40H00-6UX.

63110-40H01-6UX

$402.42

2

.EMBLEM,"SUZUKI" (GRAY) This part replaces 68641-19F00-YJH.

68641-19F01-YJH

$14.47

3

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.74

4

BRACE

63140-40H10

$475.10

5

BOLT (8X12)

01550-0812A

$2.31

6

BOLT (8X70)

09106-08182

$3.82

7

BOLT (8X50)

09106-08183

$3.38

8

NUT

08316-1008A

$2.47

9

MUDGUARD

63112-40H00

Unavailable

10

CLIP

09409-06318

Unavailable

11

CUSHION

09320-10045

$3.38

12

SPACER (6.5X10X9.4)

09180-06286

$2.53

13

SCREW (6X16)

09139-06139

$2.92

14

CUSHION (9X18X9.5)

09320-09016

$1.97

15

SCREW (6X20)

09139-06190

$3.77

16

EXTENSION

63311-40H00

$108.60

17

CUSHION

47161-29B00

$8.47

18

BOLT (6X12)

09111-06107

$2.66

19

SCREW (6X12)

09139-06144

$2.50

20

WASHER

08322-0108A

$2.18
