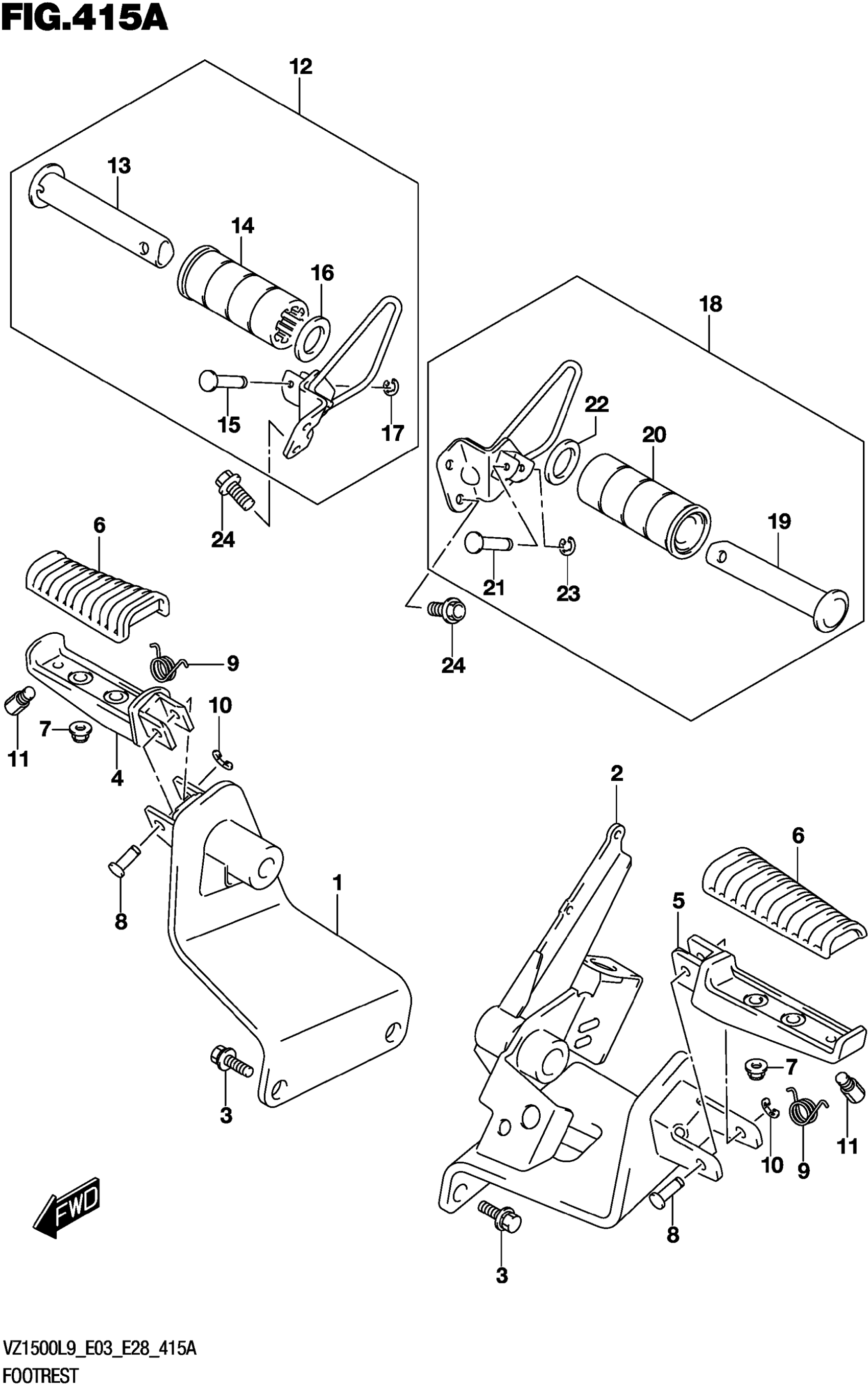

Find the part on the Footrest diagram for your 2019 Suzuki VZ1500L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki VZ1500L9 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET

43510-40H00

1

$327.23

In stock

2

BRACKET

43520-40H00

1

$216.27

In stock

3

BOLT (10X25)

09103-10378

4
Out of stock

4

BAR,FRONT FOOTREST RH

43531-48G01

1

$53.23

In stock

5

BAR,FRONT FOOTREST LH

43541-48G01

1

$51.92

In stock

6

RUBBER,FR FOOTREST

43550-48G00

2

$29.96

In stock

7

.NUT

08319-2106A

4
Out of stock

8

PIN (8X33.2)

09208-08010

2

$2.92

In stock

9

SPRING

09448-14047

2

$5.35

In stock

10

E-RING

08332-1106A

2

$1.52

In stock

11

.BOLT,BANK SENSOR

43576-07D01

2

$8.82

In stock

12

FOOTREST ASSY

43600-40H60

1
Out of stock

13

.BAR,PILLION FOOTREST

43610-39G10

1

$18.83

In stock

14

1

$7.32

In stock

15

.PIN

09208-06007

1

$3.25

In stock

16

.WASHER (19.5X32X2)

09160-19024

1

$3.22

In stock

17

E-RING

08332-1104A

1

$1.47

In stock

18

FOOTREST ASSY

43700-40H70

1

$157.48

In stock

19

.BAR,PILLION FOOTREST

43610-39G10

1

$18.83

In stock

20

1

$7.32

In stock

21

.PIN

09208-06007

1

$3.25

In stock

22

.WASHER (19.5X32X2)

09160-19024

1

$3.22

In stock

23

E-RING

08332-1104A

1

$1.47

In stock

24

BOLT (8X16)

09103-08412

4

$3.30

In stock
