Description

Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-10G30

$326.67

6

BRACKET

32830-40H10

Unavailable

7

PROTECTOR | CUT AS REQUIRED

33652-07D00

$5.64

8

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

9

COIL ASSY

33420-40H01

Unavailable

10

CUSHION,HIGH TENSION CORD (58

33442-41F00

Unavailable

10

CUSHION,HIGH TENSION CORD (58

33442-41F00

Unavailable

11

COIL ASSY, IGNITION

33410-40H01

$106.57

12

SPACER (6.4X10X22)

09180-06178

$4.50

13

SPACER (6.2X12X16)

09180-06198

$4.32

14

CLAMP (L:165)

09407-18402

$2.19

15

BOLT

01547-0635A

$2.30

16

BOLT

01547-0640A

$2.32

17

CAP,SPARK PLUG (SIDE)

33510-38B00

$31.72

18

CAP

33510-45010

$24.99

19

SEAL,SPARK PLUG

33541-47D00

$7.83

20

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

21

CONTROL UNIT

32920-40HB0

Unavailable

22

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

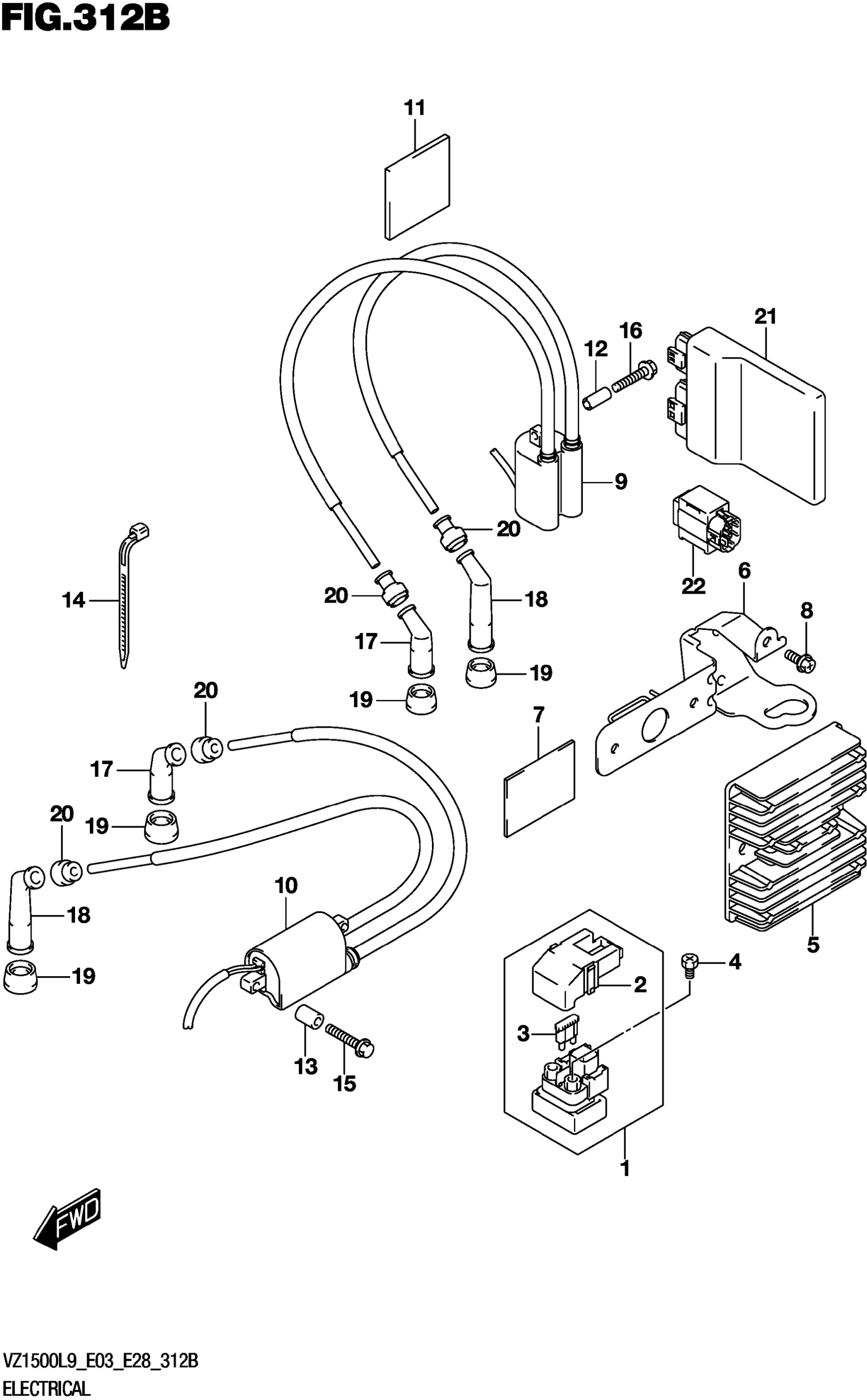

Suzuki VZ1500L9 (2019) ELECTRICAL (E33) Diagram

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

.COVER

.FUSE (30A)

SCREW (6X8)

RECTIFIER ASSY

BRACKET

PROTECTOR | CUT AS REQUIRED

SCREW This part replaces 02162-0616A.

COIL ASSY

CUSHION,HIGH TENSION CORD (58

CUSHION,HIGH TENSION CORD (58

COIL ASSY, IGNITION

SPACER (6.4X10X22)

SPACER (6.2X12X16)

CLAMP (L:165)

BOLT

BOLT

CAP,SPARK PLUG (SIDE)

CAP

SEAL,SPARK PLUG

SEAL,HIGH TENSION CORD (SIDE)

CONTROL UNIT

SENSOR ASSY,FUEL CUT
