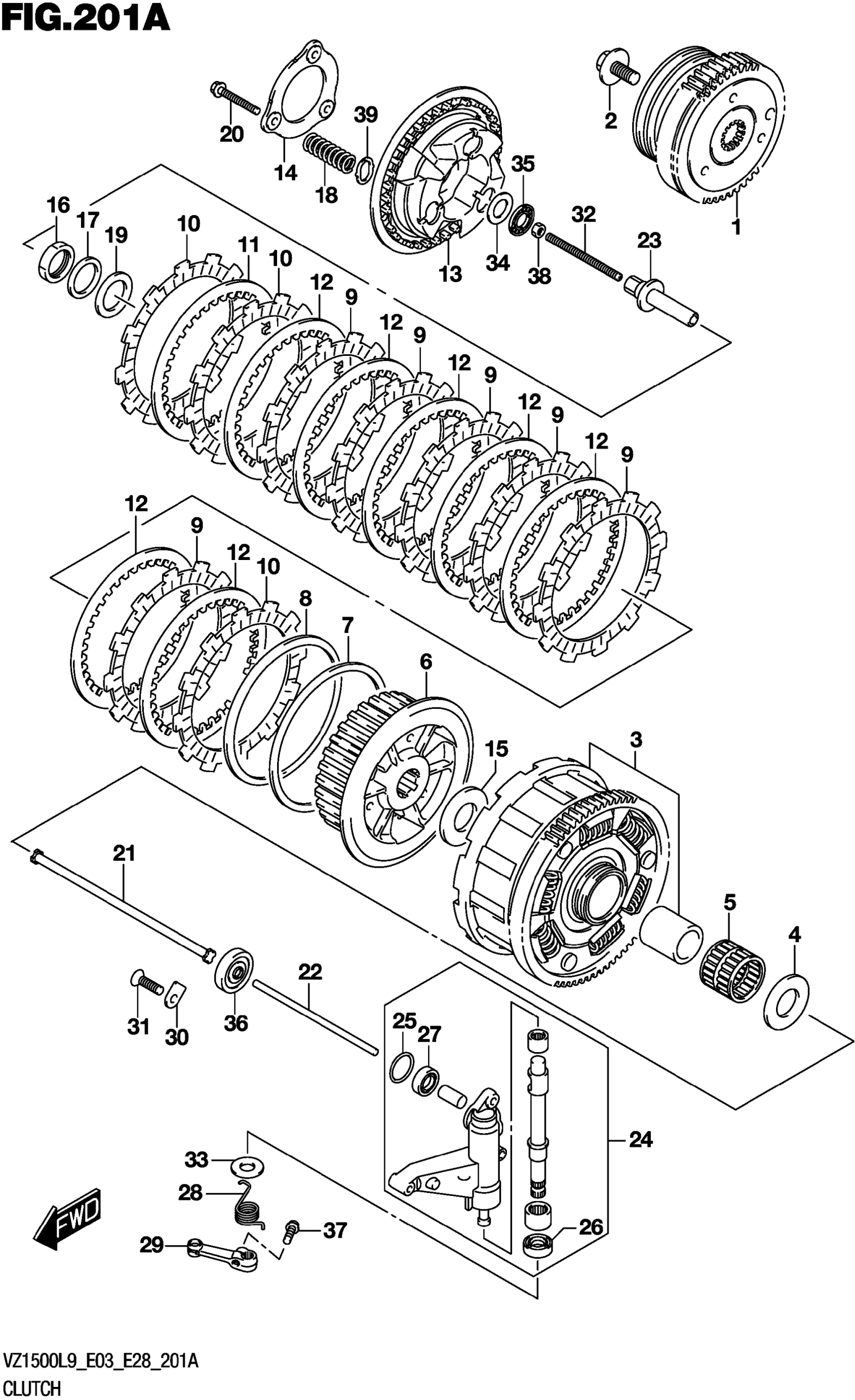

Suzuki VZ1500L9 (2019) CLUTCH Diagram

#

Description
Price

1

GEAR

21100-40832

$745.57

2

BOLT (14X28)

09103-14010

$17.50

3

GEAR

21200-40891

$551.97

4

WASHER (25X52X2.5)

09160-25074

$7.82

5

BEARING (35X40X39.8)

09263-35013

$35.56

6

HUB

21411-06J10

$162.35

7

.SEAT,WAVE WASHER

21471-24F00

$14.26

8

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$15.50

9

PLATE,CLUTCH DRIVE NO.1 (T:3.

21441-31J00

$24.15

9

PLATE,CLUTCH DRIVE NO.1 (T:3.

21441-31J00

$24.15

10

.PLATE,CLUTCH DRIVE NO.2 (T:3

21442-31J00

$24.15

10

.PLATE,CLUTCH DRIVE NO.2 (T:3

21442-31J00

$24.15

11

.PLATE,CLUTCH DRIVEN NO.2 (T:

21452-31J00

$14.75

11

.PLATE,CLUTCH DRIVEN NO.2 (T:

21452-31J00

$14.75

12

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$11.59

12

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$11.59

13

.DISC,CLUTCH PRESSURE

21462-31J10

$98.92

14

.PLATE,STOPPER

21414-31J00

$19.43

15

.WASHER (25X50X2.5)

09160-25056

$11.61

16

NUT

09159-24010

$13.22

17

WASHER (24.2X35X2.7)

09164-24008

$4.60

18

SPRING

21413-06J10

$6.28

19

SHIM (25X38X1)

09181-25223

$3.21

20

.BOLT,CLUTCH SPRING

21412-31J00

$4.12

21

ROD,CLUTCH (L:195.5)

23110-24F00

$22.23

22

ROD

23111-40H00

Unavailable

23

PIECE,CLUTCH PUSH

23121-41G00

$49.02

24

CAMSHAFT SET

23120-41810

Unavailable

25

O RING (D:2.5,ID:21)

09280-21008

$1.91

26

SEAL,OIL (10X20X6)

09282-10012

$7.98

27

SEAL,OIL (10X17X5)

09285-10004

$3.37

28

SPRING,CLUTCH RELEASE RETURN

23125-48G00

$3.95

29

ARM

23271-48G10

$91.12

30

RETAINER

24741-20A00

$2.81

31

SCREW (6X12)

09126-06011

$2.03

32

SCREW (6X73)

09134-06015

$6.88

33

WASHER (10.5X24X1.0)

09160-10020

$2.05

34

WASHER (15.5X28X1)

09160-15045

$3.89

35

BEARING (15X28X2)

09263-15003

$8.29

36

OIL SEAL (6X18X5)

09283-06005

$11.28

37

BOLT

01547-0620A

$2.03

38

NUT

08310-0006A

$1.84

39

.SEAT,CLUTCH SPRING

21415-31J00

$15.45
