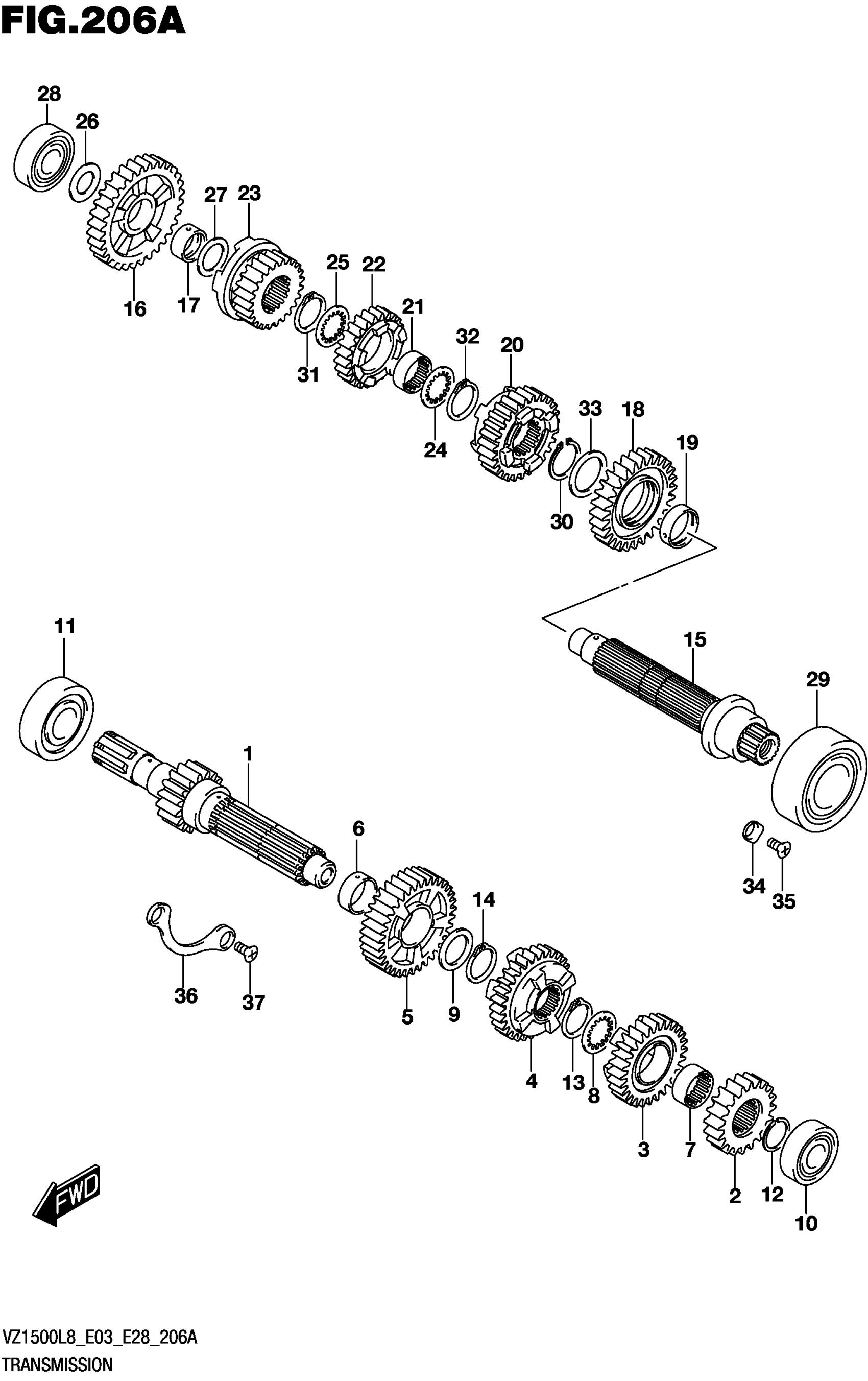

Suzuki VZ1500L8 (2018) TRANSMISSION Diagram

#

Description
Price

1

SHAFT

24120-40H00

$245.70

2

GEAR,2ND DRIVE (NT:20)

24221-48G00

$153.55

3

GEAR,3RD DRIVE (NT:28)

24231-48G10

$185.15

4

GEAR

24241-06J00

$223.38

5

GEAR

24251-40H00

$216.72

6

BUSH,5TH DRIVE GEAR

24252-24F10

$35.47

7

BUSH,6TH DRIVE GEAR

24262-24F10

$35.47

8

LOCK WASHER (27X36X2.5)

09167-27003

$6.80

9

SHIM (27X36X2.5)

09181-27014

$6.32

10

BEARING (20X52X15) | LH

09262-20080

$38.77

11

BEARING (25X62X17) | RH

09262-25153

$70.70

12

CIRCLIP

09380-27004

$3.70

13

CIRCLIP

09380-27006

$2.73

14

CIRCLIP

09380-27006

$2.73

15

SHAFT

24130-40H10

$274.77

16

GEAR,1ST DRIVEN (NT:35)

24311-48G00

$208.75

17

BUSH,1ST DRIVEN GEAR

24312-24F10

$35.47

18

GEAR,2ND DRIVEN (NT:28)

24321-48G10

$208.75

19

BUSH,2ND DRIVEN GEAR

24322-48G00

$32.12

20

GEAR

24331-06J00

$223.95

21

BUSH,DRIVEN GEAR

24332-24F10

$34.15

22

GEAR

24341-40H00

$195.10

23

GEAR

24351-40H00

$209.20

24

WASHER,LOCK (30X38X2) | LH

09167-30008

$6.12

25

WASHER,LOCK (30X38X2) | RH

09167-30008

$6.12

26

SHIM (22X34X1) | RH

09181-22223

$3.12

27

SHIM (24X34X1) | LH

09181-24005

$3.55

28

BEARING (22X56X16) | RH

09262-22024

$70.13

29

BEARING (35X72X27) | LH

09267-35004

Unavailable

30

CIRCLIP

09380-30009

$3.49

31

CIRCLIP | RH

09380-30009

$3.49

32

CIRCLIP | LH

09380-30009

$3.49

33

WASHER

08211-30403

$4.10

34

RETAINER

24741-20A00

$2.81

35

SCREW (6X12)

09126-06011

$2.03

36

RETAINER

24741-27A00

$10.07

37

SCREW (6X12)

09126-06011

$2.03
