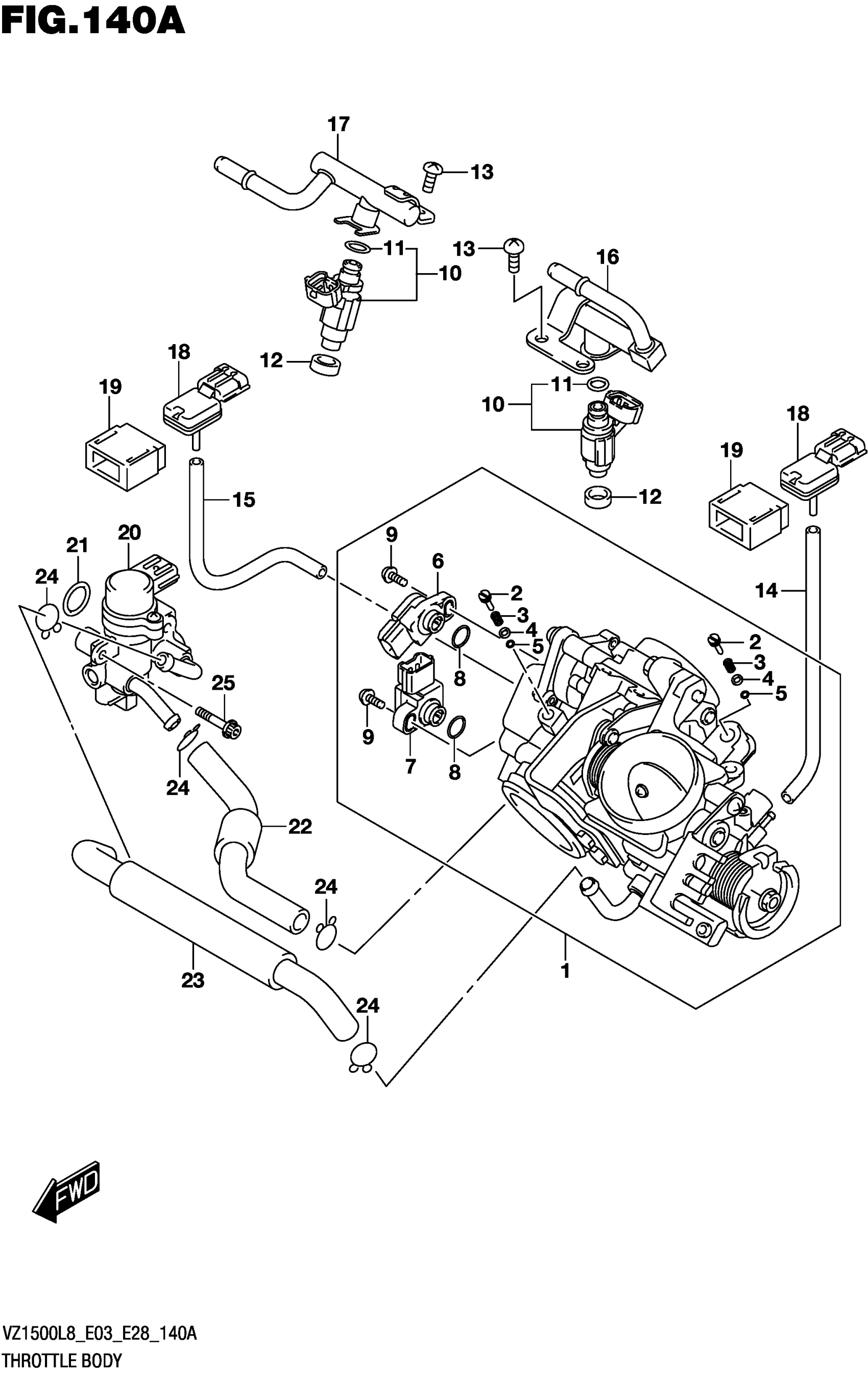

Suzuki VZ1500L8 (2018) THROTTLE BODY (VZ1500L8 E03) Diagram

#

Description
Price

1

BODY

13405-40H00

Unavailable

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING This part replaces 13295-29900.

13295-29901

$4.34

6

.SENSOR ASSY

13580-48G10

$151.08

7

.SENSOR ASSY

13580-48G00

$203.42

8

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

9

.SCREW

13605-02F00

$3.71

10

INJECTOR ASSY

15710-48G00

$269.36

11

.O-RING

15717-58B00

$9.95

12

SEAL

15722-29G00

$10.93

13

.SCREW

13602-06148

$3.62

14

HOSE This part replaces 13683-48G00.

13683-48G01

$31.87

15

HOSE

13683-40H10

Unavailable

16

PIPE ASSY

15730-40H00

Unavailable

17

PIPE ASSY

15730-40H10

Unavailable

18

SENSOR

18591-41F00

Unavailable

19

HOLDER

18595-33G00

Unavailable

20

VALVE

18117-40H01

$314.42

21

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

22

HOSE

13697-40H00

Unavailable

23

HOSE

13698-40H00

Unavailable

24

CLIP

09401-13102

$3.15

25

BOLT

07120-0525A

Unavailable
