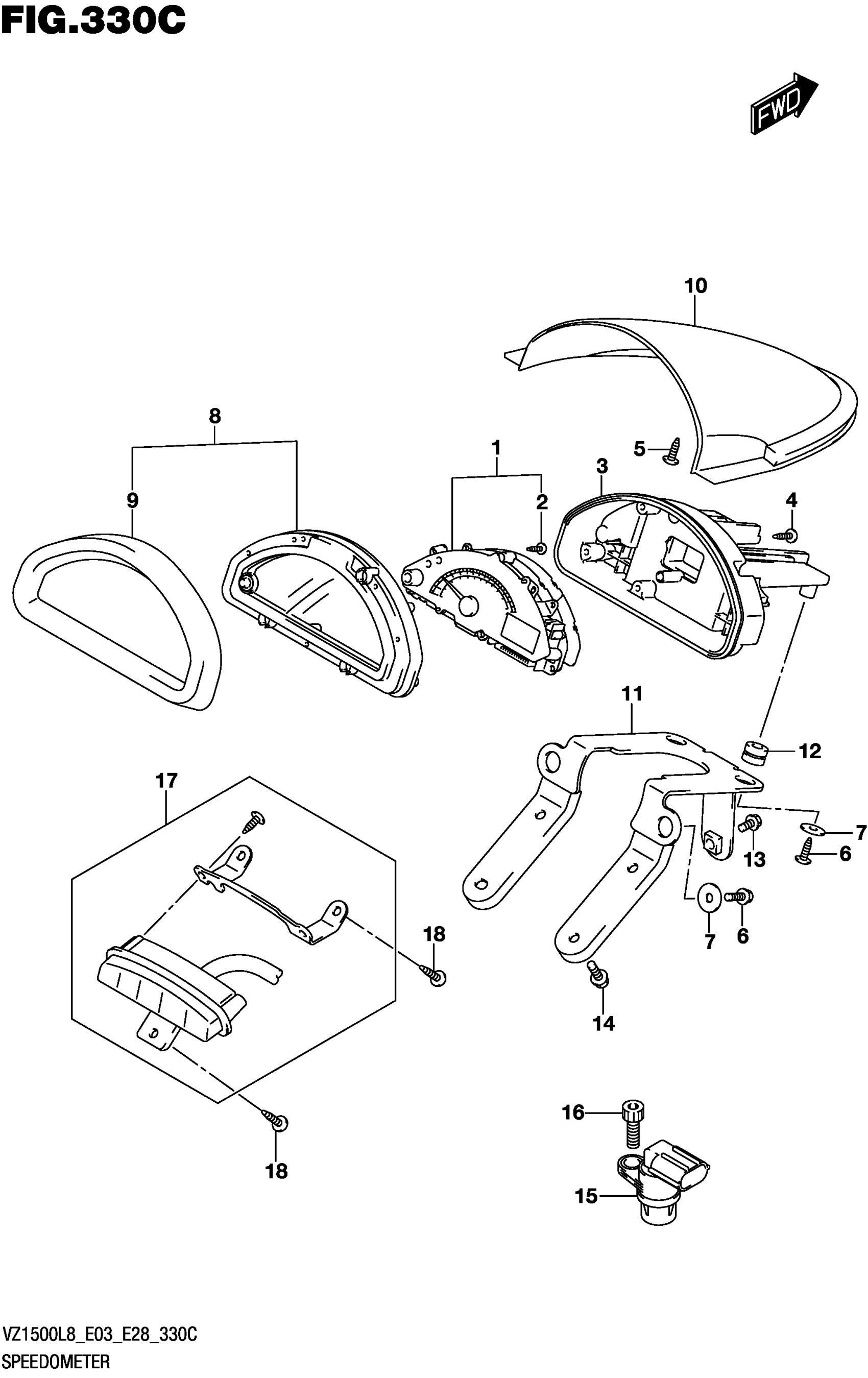

Suzuki VZ1500L8 (2018) SPEEDOMETER (VZ1500L8 E33) Diagram

#

Description
Price

1

COMBINATION METER

34120-40H10

Unavailable

2

SCREW (3X14)

34149-03G00

$3.71

3

COVER

34111-40H00

Unavailable

4

SCREW (3X14)

34149-03G00

$3.71

5

SCREW (4X14)

34149-17E10

$6.23

6

SCREW (5X16)

34149-40H00

Unavailable

7

WASHER (5.2X20X1.0)

34189-40H00

Unavailable

8

UPPER CASE

34150-40H20

$167.90

9

.UPPER COVER

34256-40H20

Unavailable

10

LOWER COVER

34257-40H20

$142.00

11

BRACKET

34952-40H00

Unavailable

12

DAMPER

34955-40H00

Unavailable

13

BOLT

01550-0610A

$1.97

14

BOLT

07120-0612B

$3.04

15

SENSOR, SPEED

34990-31G01

$112.55

16

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

17

BOX ASSY

36380-40H01

$217.78

18

SCREW

03541-0512A

$1.49
