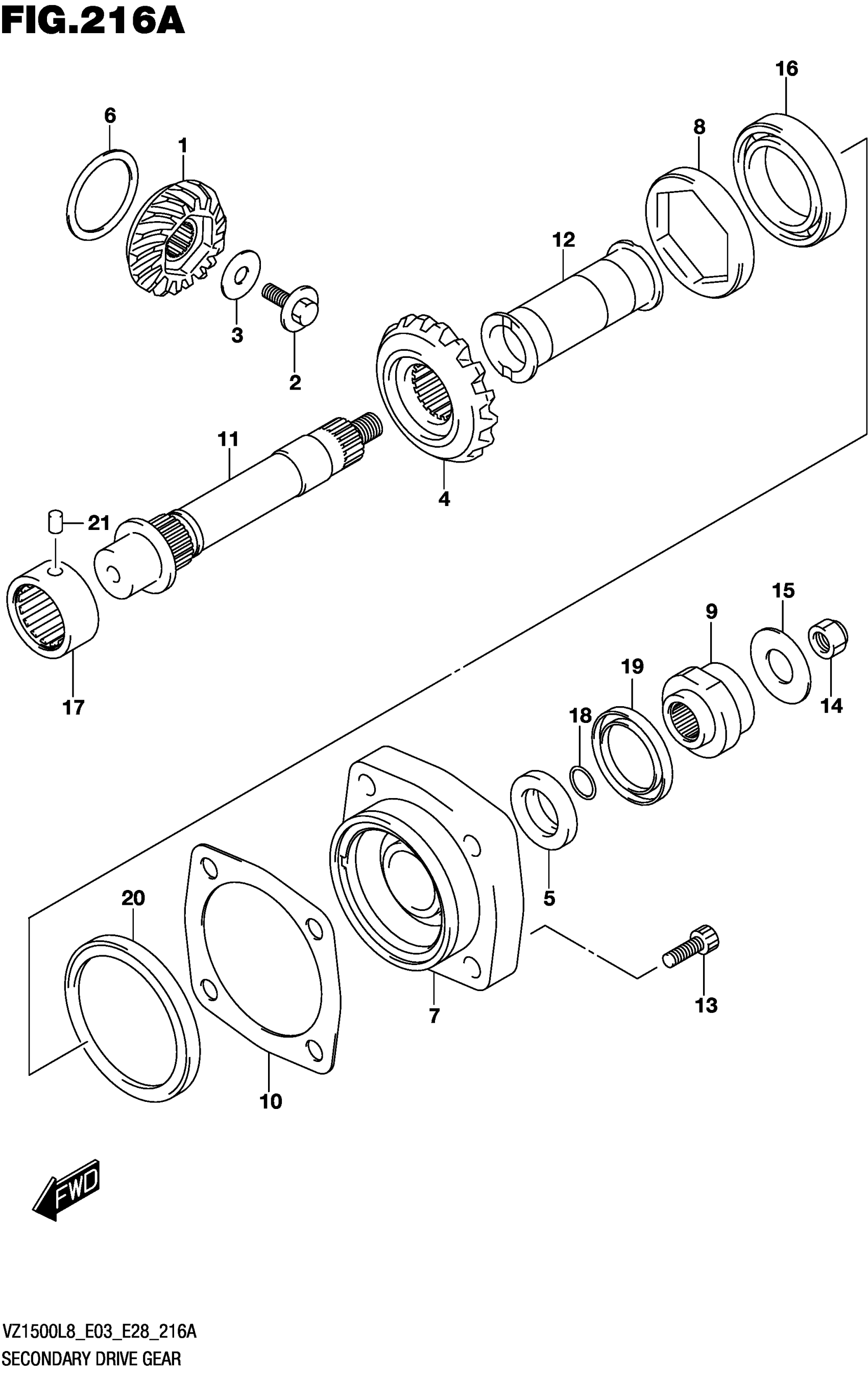

Suzuki VZ1500L8 (2018) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR

24911-40H00

$317.10

2

BOLT

24912-06J00

Unavailable

3

WASHER

08211-12343

Unavailable

4

GEAR

24921-40H00

Unavailable

5

SPACER, PRIMARY SHAFT

21102-31G00

$25.95

6

SHIM SET | T:0.80/0.85/0.90/0.95/1.00/

24935-40820

$90.57

6

SHIM SET | 1.05/1.10/1.15/1.20

24935-40820

$90.57

7

HOUSING

24941-40H00

Unavailable

8

STOPPER,SEC DRIVEN BEARING

24942-26D00

$72.00

9

COUPLING

24943-40H00

Unavailable

10

SHIM SET | T:0.30/0.35/0.40/0.50/0.60

24945-40810

$43.27

11

SHAFT

24961-40H00

Unavailable

12

SPACER

24962-40H00

Unavailable

13

BOLT (10X30)

09106-10087

$6.20

14

NUT

09159-16003

$4.00

15

WASHER (16.5X36X4.0)

09160-16040

$11.73

16

BEARING (28X68X18) | REAR

09262-28014

$57.95

17

BEARING (32X50X22) | FRONT

09263-32021

$141.27

18

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.03

19

OIL SEAL (38X54X6)

09283-38011

$17.92

20

OIL SEAL (76X84X7)

09286-84001

$23.07

21

PIN (7X12)

09202-07005

$6.70
