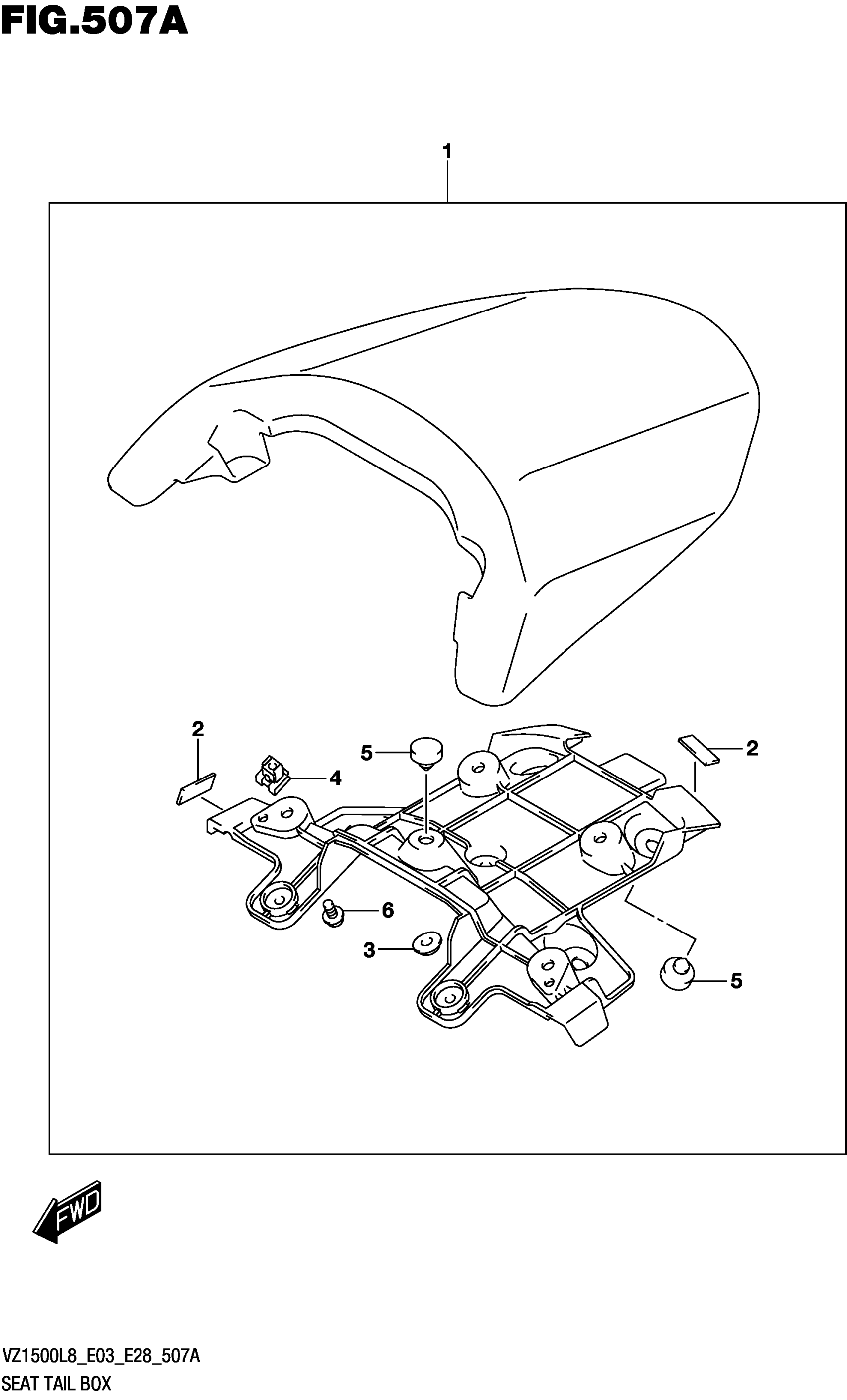

Suzuki VZ1500L8 (2018) SEAT TAIL BOX Diagram

#

Description

Price

1

BOX SET

45550-40H00-QEB

$255.30

2

CUSHION

45516-01H00

$6.00

3

.COLLAR

45553-48G00

$11.18

4

NUT

09148-06018

$3.00

5

CUSHION

09321-10012

$2.80

6

BOLT

01550-0612A

$2.01
