2018 Suzuki VZ1500L8 Frame Cover Diagram

← All diagrams

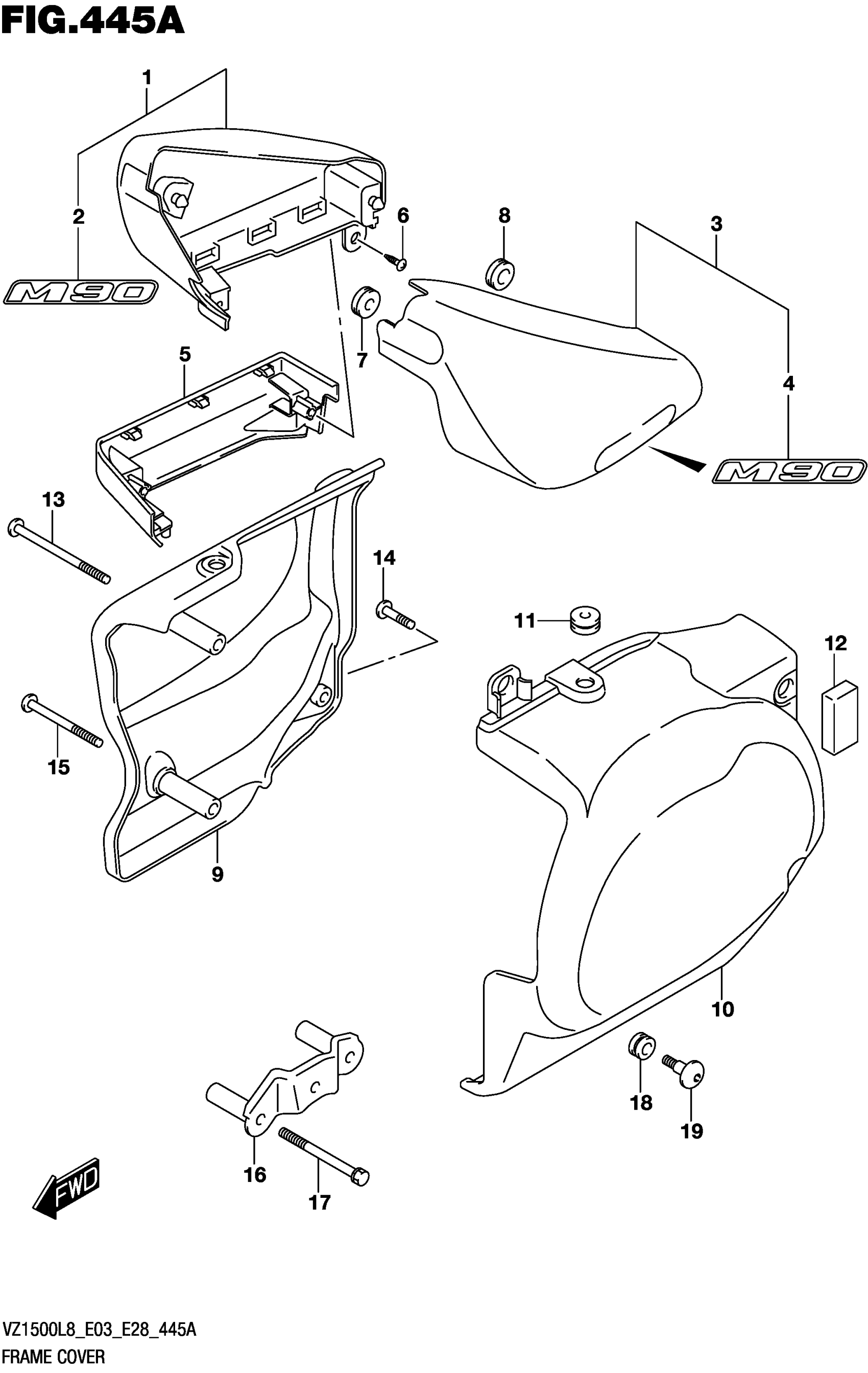

Find the part on the Frame Cover diagram for your 2018 Suzuki VZ1500L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VZ1500L8 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

47110-40HA0-YKV

1
Out of stock

2

.EMBLEM (BLACK)

68131-40HA0-DEY

—
Out of stock

3

COVER

47210-40HA0-YKV

1
Out of stock

4

.EMBLEM (BLACK)

68131-40HA0-DEY

—
Out of stock

5

COVER

47121-40H00

1
Out of stock

6

SCREW

03541-0516A

2
Out of stock

7

CUSHION

09320-08049

2
Out of stock

8

CUSHION (8x26x7)

09320-08018

2
Out of stock

9

COVER

47130-40H20

—
Out of stock

10

COVER

47231-40H20

1
Out of stock

11

CUSHION (6X18X6)

09320-06504

2
Out of stock

12

CUSHION

51827-01A00

1
Out of stock

13

SCREW

47139-40H00

1
Out of stock

14

SCREW (6X16)

09139-06140

1
Out of stock

15

SCREW

47138-40H00

1
Out of stock

16

BRACKET

47250-06J00

1
Out of stock

17

BOLT

01547-0650A

2
Out of stock

18

CUSHION (9X18X9.5)

09320-09016

3
Out of stock

19

SCREW (6X20)

09139-06126

3
Out of stock
