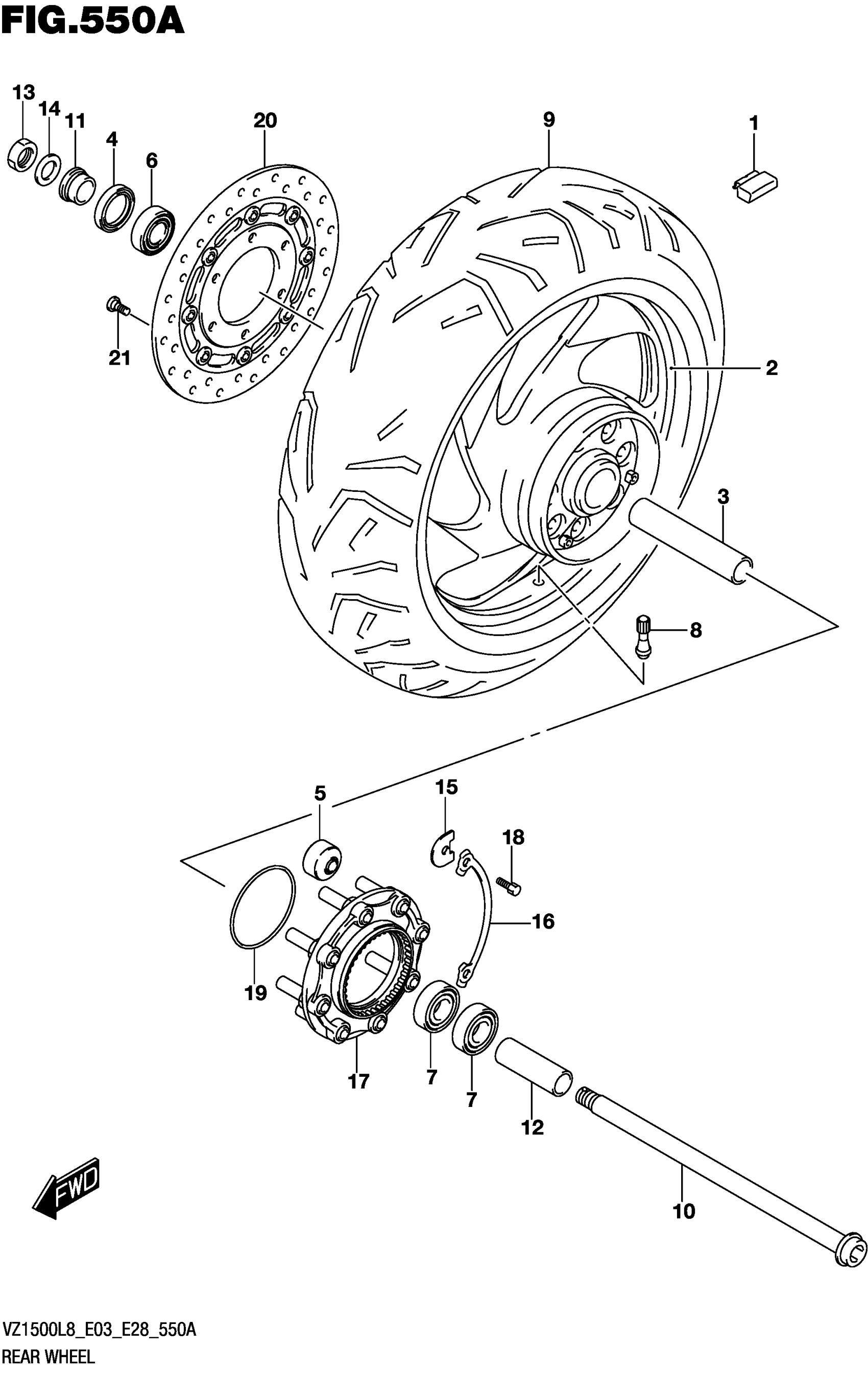

Suzuki VZ1500L8 (2018) REAR WHEEL Diagram

#

Description
Price

1-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$8.60

1-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$10.07

1-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$11.47

2

WHEEL

64111-40H00-019

$1,162.95

2

WHEEL

64111-40H00-019

$1,162.95

3

SPACER

64731-40H00

$41.63

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

BUSH (12X41X34)

09319-12019

$13.11

6

.BEARING (25X52X15) | RH

09262-25186

$37.28

7

BEARING (25X52X15) | LH

08143-62057

$24.40

8

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

9

TIRE | G852 RADIAL G (T/L)

65110-40H00

Unavailable

9

TIRE | BRIDGESTONE

65110-40H00

Unavailable

10

AXLE,REAR

64711-48G00

$217.48

11

SPACER,REAR AXLE RH

64741-48G00

$26.48

12

SPACER,REAR AXLE LH

64772-48G00

$40.22

13

NUT

09159-22007

$19.20

14

WASHER (22X35X2)

09160-22081

$3.04

15

WASHER,THRUST

64677-48G10

$7.42

16

WASHER,REAR HUB DRIVEN JOINT

64679-48G00

$6.28

17

JOINT ASSY,REAR HUB DRIVEN

64680-48G00

$382.13

18

BOLT (6X16)

09119-06049

$1.56

19

O-RING (D:2.4,ID:79.8)

09280-80001

$3.89

20

DISC,RR BRAKE

69210-10F60

$289.83

21

BOLT (8X21)

09106-08160

$3.57
