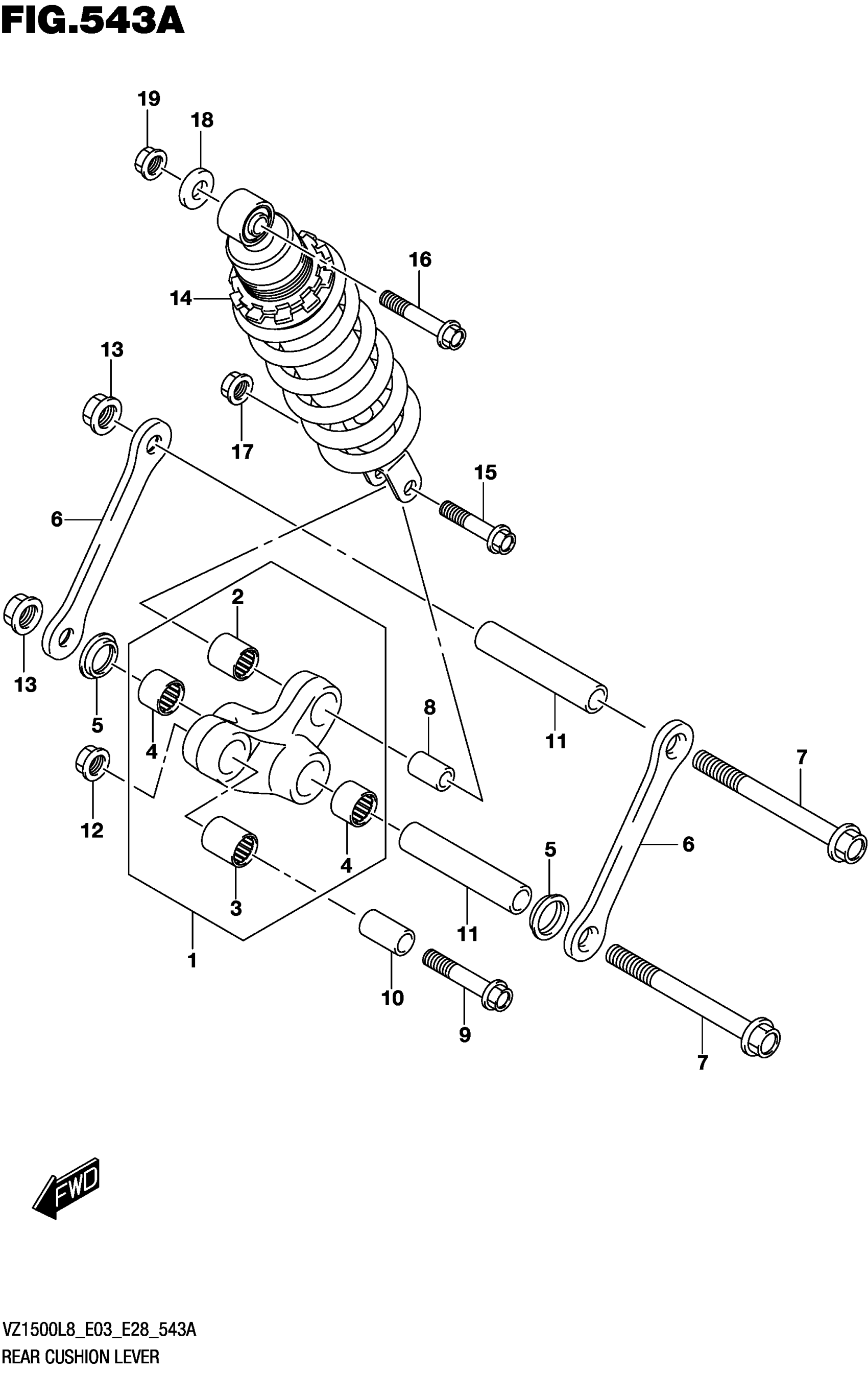

Suzuki VZ1500L8 (2018) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER

62600-40840

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

4

.BEARING (22X28X20)

09263-22062

$31.08

5

SEAL

62624-37E00

$8.98

6

ROD

62641-40H00

Unavailable

7

BOLT

62658-44G10

Unavailable

8

SPACER

62684-01D00

$19.37

9

BOLT (14X66)

09103-14016

Unavailable

10

SPACER (14X20X34)

09180-14014

$17.50

11

SPACER (16X22X105)

09180-16049

Unavailable

12

NUT

09159-14034

Unavailable

13

NUT

08319-3116A

$14.74

14

ABSORBER ASSY

62100-40H70

Unavailable

15

BOLT (12X62)

62668-42A02

$10.67

16

BOLT

62658-27C10

$11.68

17

NUT

09159-12072

Unavailable

18

SPACER (12.1X25X14.5)

09180-12157

Unavailable

19

NUT

09159-12072

Unavailable
