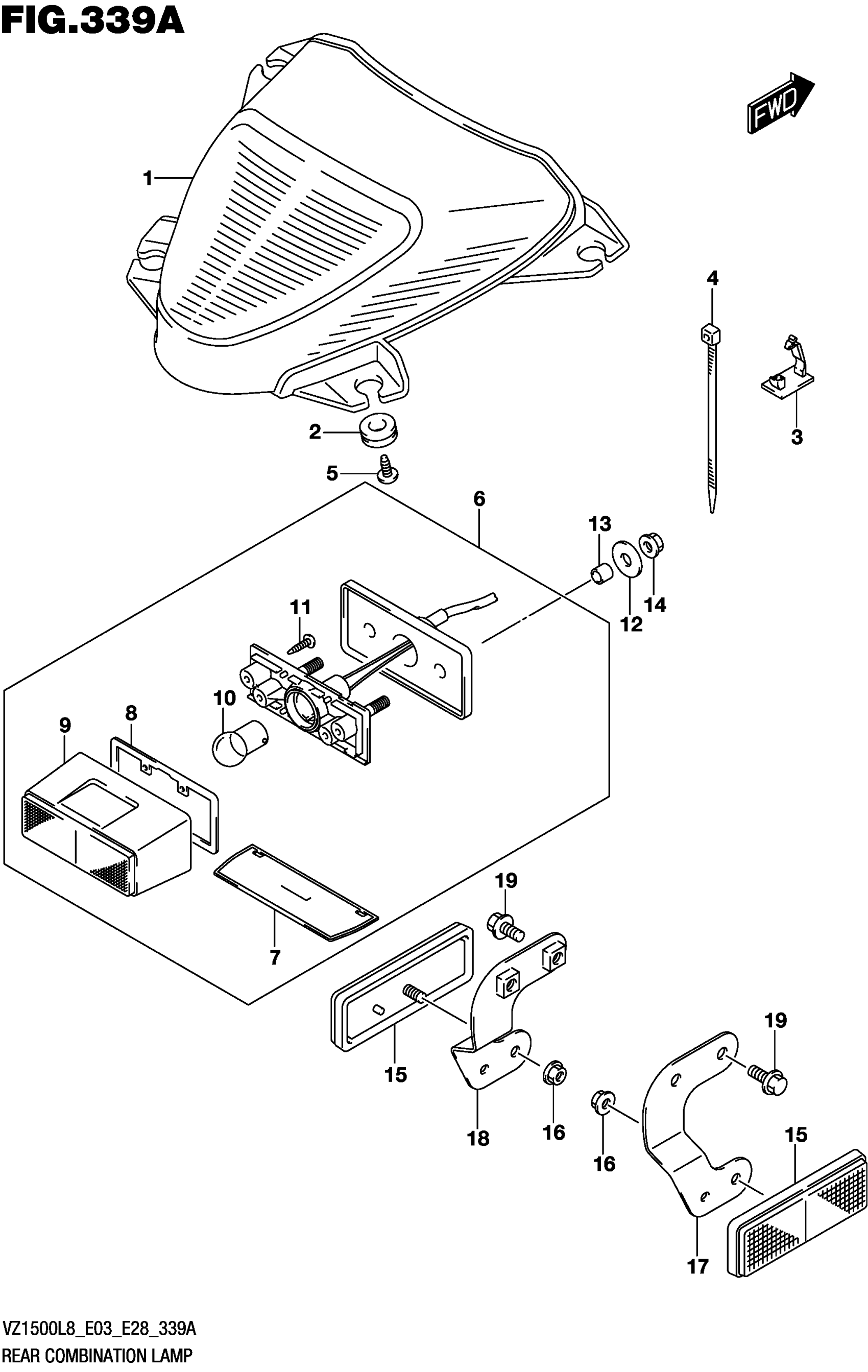

Suzuki VZ1500L8 (2018) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY

35710-40H00

$469.67

2

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

3

CLAMP

09403-04310

$5.35

4

CLAMP (L:145)

09407-14407

$3.57

5

SCREW

03541-0512A

$1.49

6

LAMP ASSY,LICENSE

35910-41G02

$73.97

7

.LENS,LICENSE LAMP

35912-41G01

$13.28

8

.GASKET

35913-41G00

$14.23

9

.COVER,LICENSE LAMP

35917-41G00

$35.32

10

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

11

.SCREW

03211-0416A

$1.49

12

WASHER (6.5X20X1.2)

09160-06077

$1.91

13

SPACER (6.5X9X8)

09180-06261

$1.91

14

NUT (6X12)

08316-1006A

$2.19

15

REFLECTOR ASSY,RR

35970-07F01

$20.88

16

NUT

08316-1005A

$2.19

17

BRACKET

35975-40H00

Unavailable

18

BRACKET

35976-40H00

Unavailable

19

SCREW

02162-0612A

$2.05
