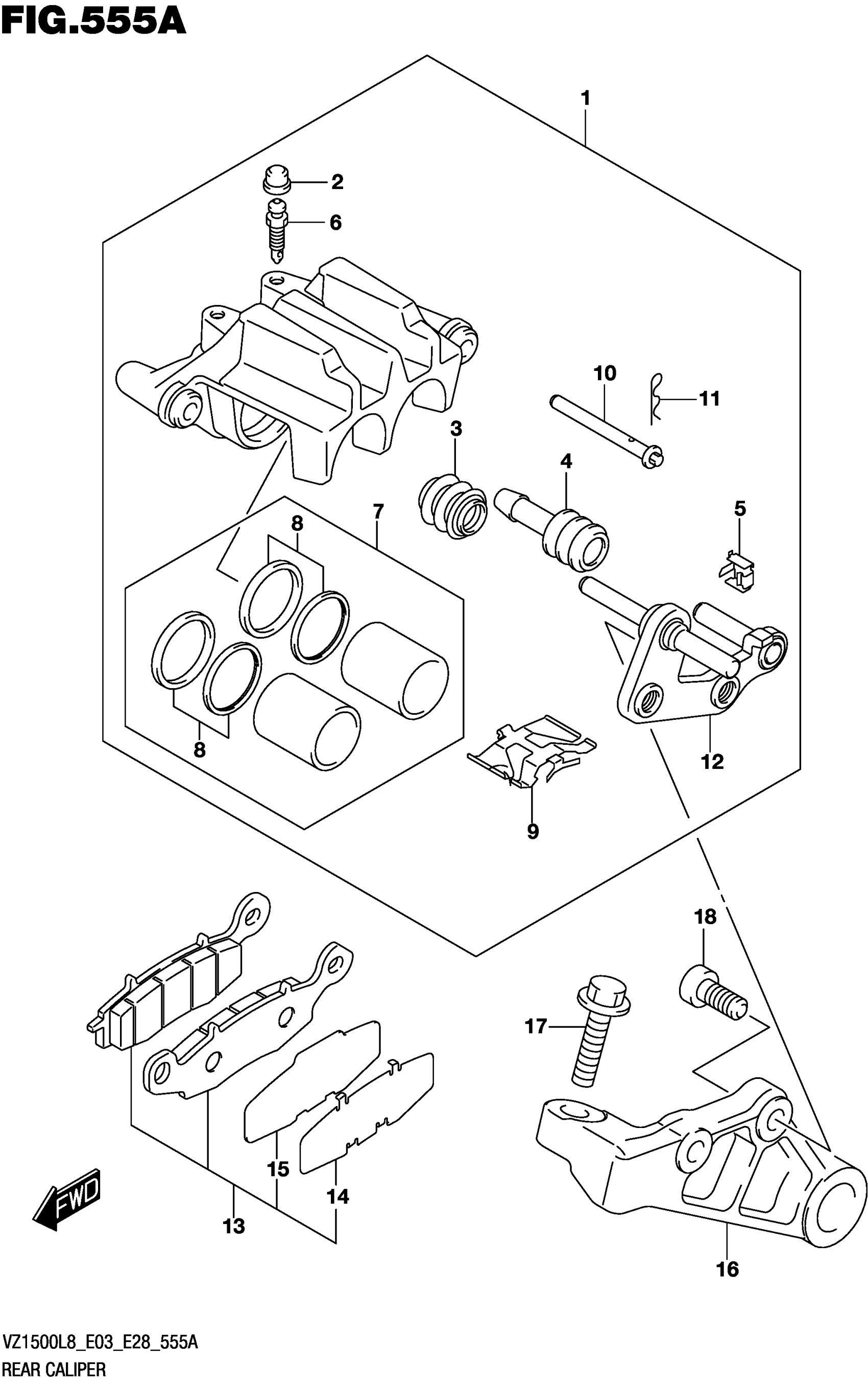

Suzuki VZ1500L8 (2018) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY

69100-01DB0-999

Unavailable

2

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$5.17

3

.BOOT,AXLE

59112-44B00

$8.91

4

.INSULATOR,AXLE

59113-01D00

$10.17

5

.GUIDE, PAD

59116-33D00

$7.97

6

.BLEEDER

59121-18410

$8.73

7

.PISTON SET

69100-01840

$124.75

8

..SEAL SET,PISTON

59300-33841

$15.45

9

.SPRING,PAD

69115-01D40

$18.35

10

.PIN,PAD

69141-01D40

$12.48

11

.CLIP, PAD PIN

69142-45000

$4.34

12

.CARRIER,CALIPER

69150-01D40

Unavailable

13

PAD & SHIM SET

69100-01890

$86.58

14

.SHIM, PAD NO.2

59172-33D00

$16.78

15

.INSULATOR NO.2

69172-01D40

$25.92

16

BRACKET

69721-48G30

Unavailable

17

BOLT (12X40)

09103-12109

$5.28

18

BOLT (10X20)

09106-10062

Unavailable
