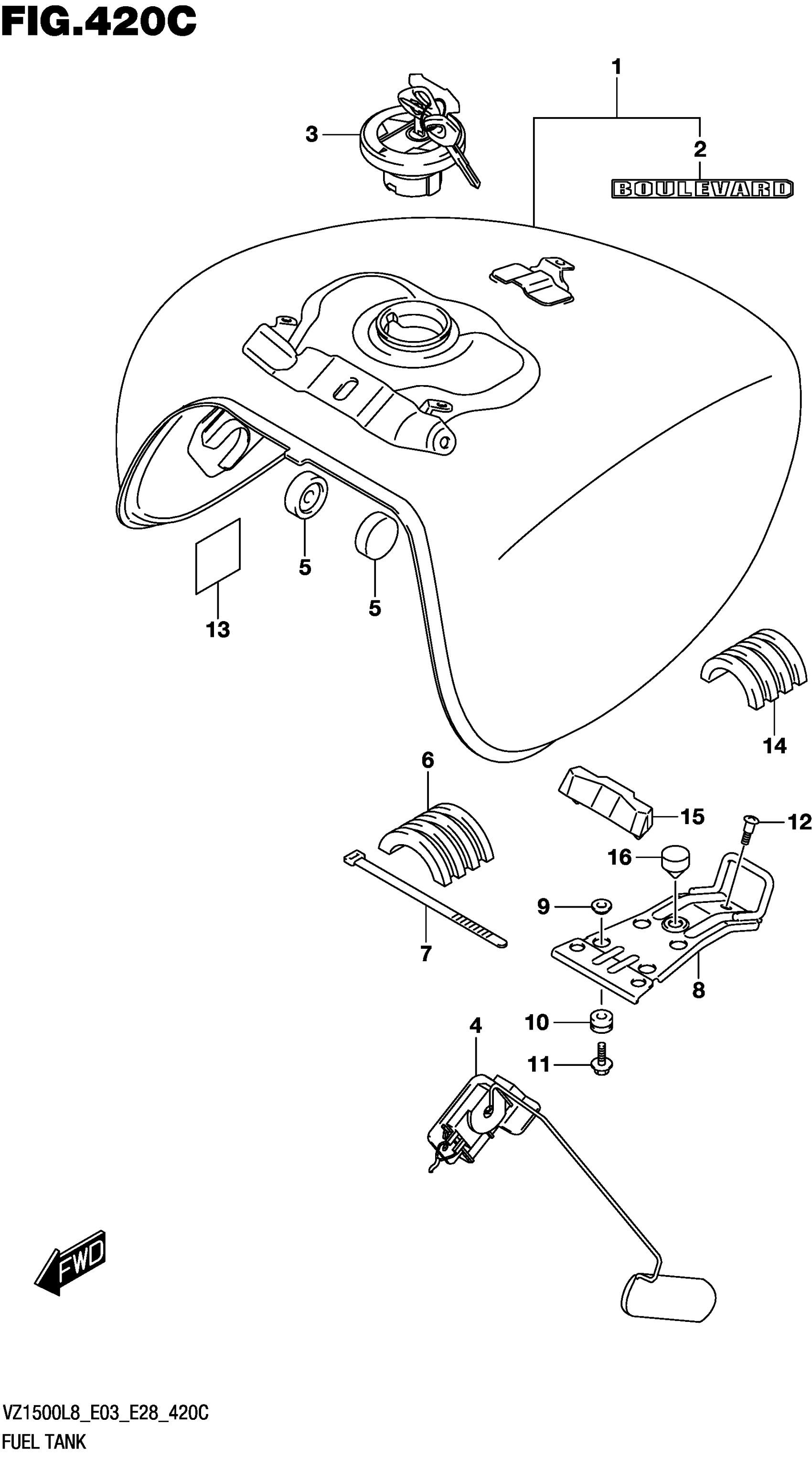

Suzuki VZ1500L8 (2018) FUEL TANK (VZ1500L8 E33) Diagram

TANK ASSY

44100-40H70-QEB

$1,432.75

.EMBLEM (GRAY)

68111-48G20-QN2

Unavailable

CAP SET,FUEL TANK This part replaces 44200-39870.

44200-39871

$263.97

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$109.73

CUSHION This part replaces 09329-10007.

09329-10026

$1.98

CUSHION

44541-04F00

Unavailable

CLAMP (L:300)

09407-30402

$3.90

BRACKET

44530-06J00

$42.58

WASHER (6.3X17X1.6)

09169-06062

$2.57

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.14

BOLT (6X20)

09116-06192

$2.44

BOLT (8X12)

01550-0812A

$2.38

PROTECTOR

44283-40H00

Unavailable

CUSHION

44541-06J00

Unavailable

CUSHION

44545-06J00

Unavailable

.CUSHION

09321-10011

$2.80
