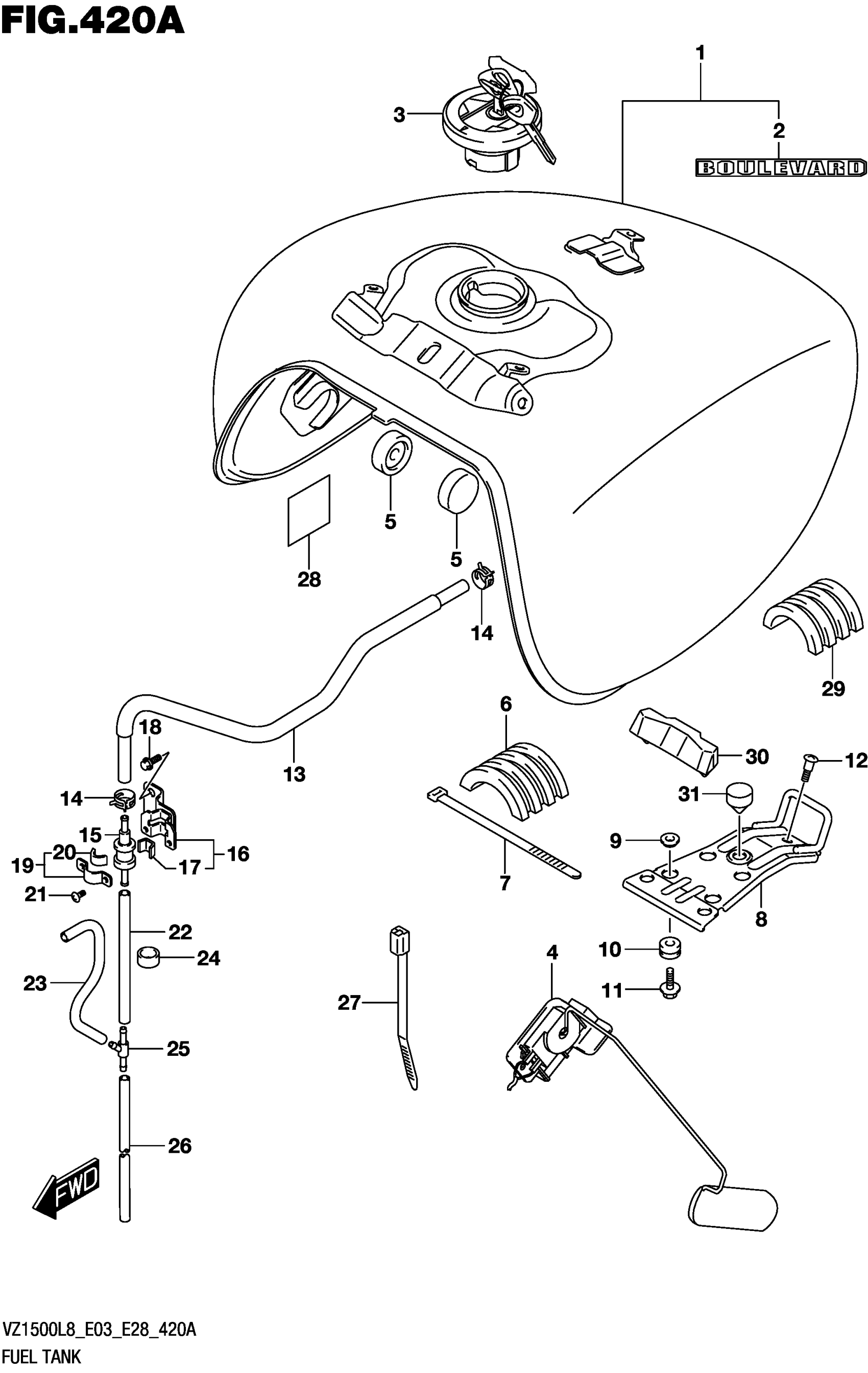

Suzuki VZ1500L8 (2018) FUEL TANK (VZ1500L8 E03) Diagram

#

Description
Price

1

TANK ASSY

44100-40H70-QEB

$1,312.27

2

.EMBLEM (GRAY)

68111-48G20-QN2

Unavailable

3

CAP SET,FUEL TANK This part replaces 44200-39870.

44200-39871

$237.20

4

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$83.05

5

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

6

CUSHION

44541-04F00

Unavailable

7

CLAMP (L:300)

09407-30402

$4.11

8

BRACKET

44530-06J00

$37.73

9

WASHER (6.3X17X1.6)

09169-06062

$2.50

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

11

BOLT (6X20)

09116-06192

$2.30

12

BOLT (8X12)

01550-0812A

$2.32

13

HOSE | CUT AS REQUIRED

44434-40H00

Unavailable

14

CLIP (ID:11,H:8)

09401-11413

$2.26

15

VALVE,FUEL TANK BREATHER

44240-38A00

$61.15

16

BRACKET

44880-40H00

Unavailable

17

CUSHION (10X30X2)

44894-24A00

$1.72

18

BOLT

01547-0610A

$2.45

19

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

20

CUSHION (10X30X2)

44894-24A00

$1.72

21

SCREW

02142-0408A

$1.55

22

.HOSE | L:600->100 This part replaces 09352-50903-600.

09352-50006-600

$7.48

23

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

24

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

25

3 WAY

09367-06007

$3.46

26

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

27

CLAMP (L:190)

09407-19401

$3.05

28

PROTECTOR

44283-40H00

$6.05

29

CUSHION

44541-06J00

Unavailable

30

CUSHION

44545-06J00

Unavailable

31

.CUSHION

09321-10011

$2.91
