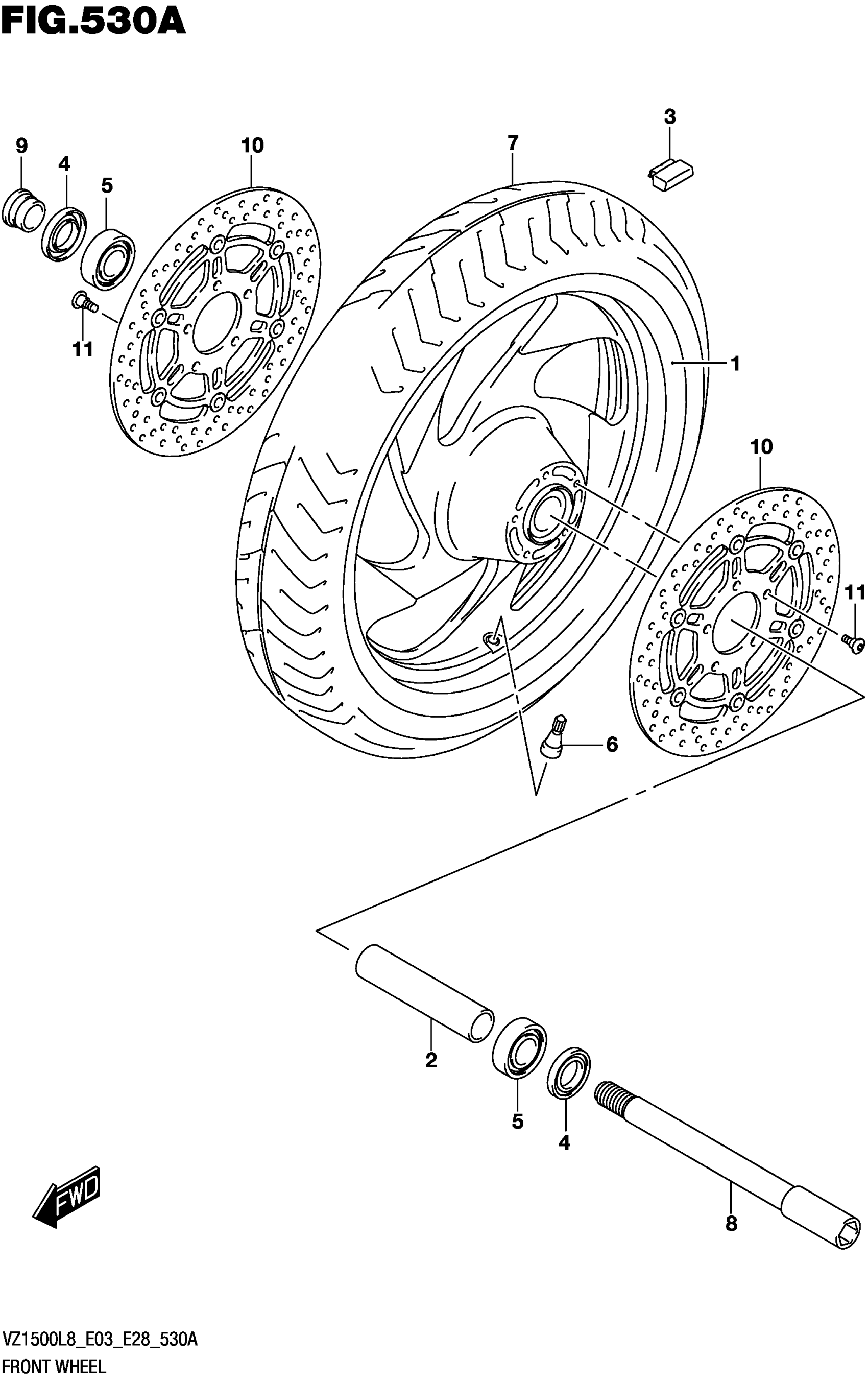

Suzuki VZ1500L8 (2018) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL

54111-40H00-019

$958.37

1

WHEEL

54111-40H00-019

$958.37

2

SPACER,FRONT WHEEL BEARING

54731-48G00

$65.62

3-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$8.60

3-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$10.07

3-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$11.47

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

.BEARING (25X52X15)

09262-25186

$37.28

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

7

TIRE | G853 RADIAL G (T/L)

55110-40H00

Unavailable

7

TIRE | BRIDGESTONE

55110-40H00

Unavailable

8

AXLE,FRONT

54711-48G00

Unavailable

9

SPACER,FRONT AXLE LH

54741-48G00

$31.57

10

DISC

59210-08F11

$463.53

11

BOLT (8X21)

09106-08160

$3.57
