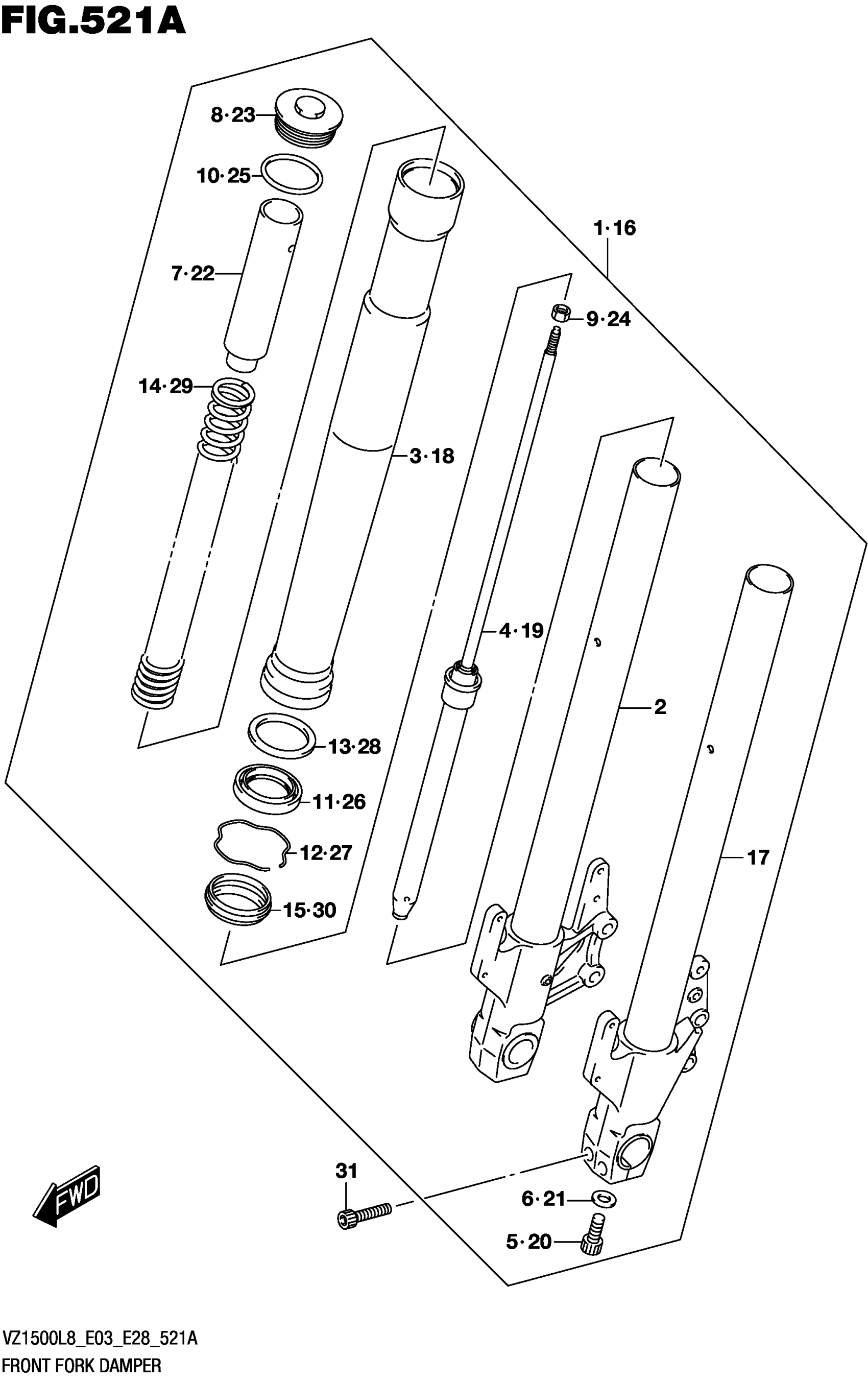

Suzuki VZ1500L8 (2018) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY

51103-40H30

Unavailable

2

.TUBE

51110-40H30

Unavailable

3

.TUBE

51130-40H30

$553.18

4

.CYLINDER

51146-40H00

Unavailable

5

.BOLT

51147-05H00

$5.40

6

.GASKET

51148-41310

$2.26

7

.SPACER,SPRING

51176-21H00

$27.40

8

.CAP

51351-40H30

Unavailable

9

.NUT, ROD

51352-13A60

$3.03

10

..O RING

62278-14100

$4.03

11

.SEAL,OIL

51153-41G00

$25.17

12

.RING,STOPPER

51156-14200

$5.05

13

.WASHER

51158-14200

$5.05

14

.SPRING

51171-40H00

Unavailable

15

.SEAL,DUST

51173-41G00

$26.58

16

DAMPER ASSY

51104-40H30

Unavailable

17

.TUBE

51120-40H30

$731.18

18

.TUBE

51130-40H30

$553.18

19

.CYLINDER

51146-40H00

Unavailable

20

.BOLT

51147-05H00

$5.40

21

.GASKET

51148-41310

$2.26

22

.SPACER,SPRING

51176-21H00

$27.40

23

.CAP

51351-40H30

Unavailable

24

.NUT, ROD

51352-13A60

$3.03

25

..O RING

62278-14100

$4.03

26

.SEAL,OIL

51153-41G00

$25.17

27

.RING,STOPPER

51156-14200

$5.05

28

.WASHER

51158-14200

$5.05

29

.SPRING

51171-40H00

Unavailable

30

.SEAL,DUST

51173-41G00

$26.58

31

BOLT

51328-31F30

Unavailable
