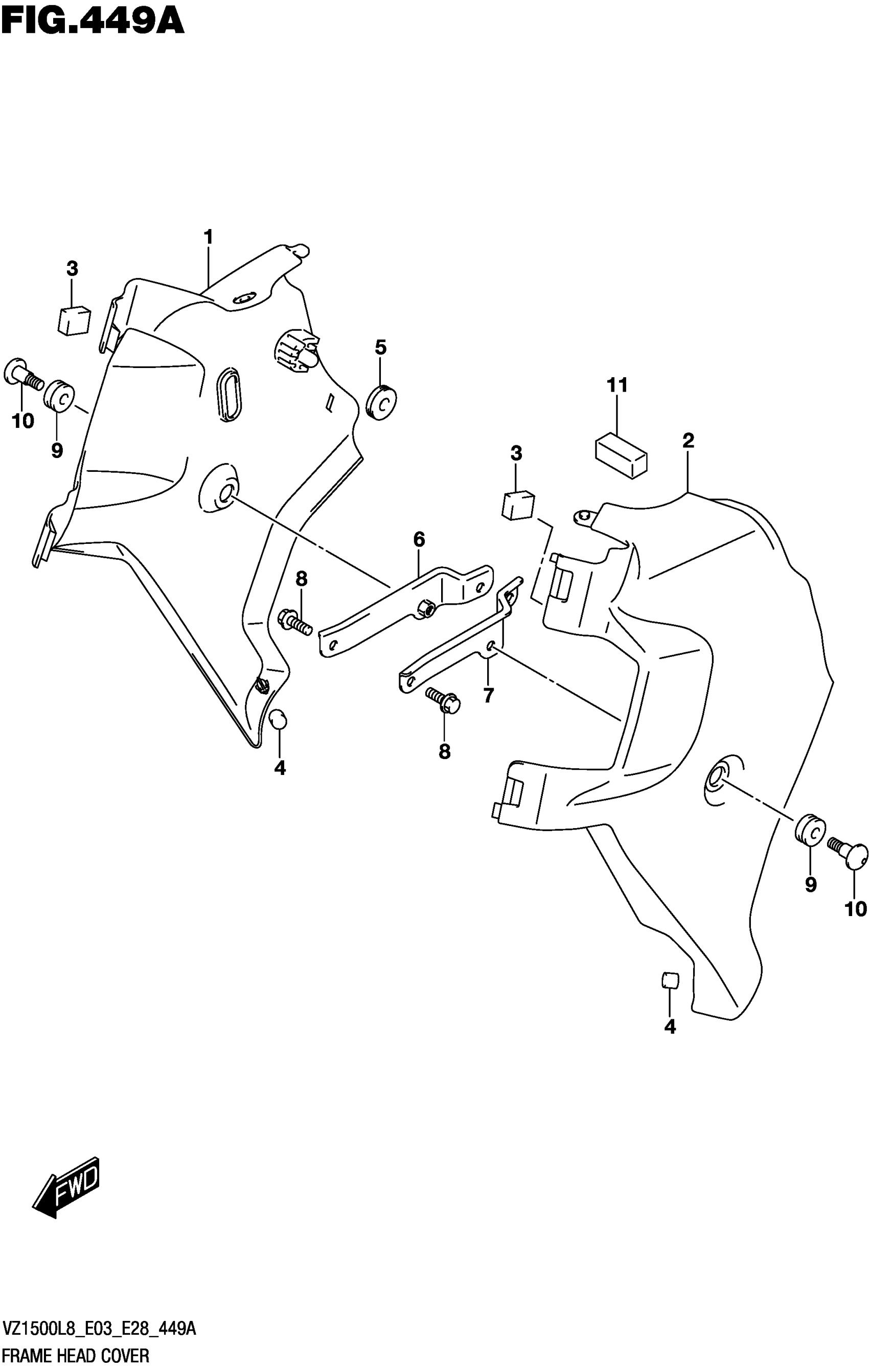

Find the part on the Frame Head Cover diagram for your 2018 Suzuki VZ1500L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VZ1500L8 Frame Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

47351-40H00-019

1
Out of stock

2

COVER

47361-40H00-019

1
Out of stock

3

5

$6.65

In stock

4

2

$0.72

In stock

5

CUSHION (8x26x7)

09320-08018

2
Out of stock

6

PLATE

47370-40H01

1

$14.98

In stock

7

PLATE

47380-40H01

1

$15.22

In stock

8

BOLT

01550-0616A

4
Out of stock

9

CUSHION (9X18X9.5)

09320-09016

2
Out of stock

10

BOLT (6X20)

09139-06179

2

$5.52

In stock

11

1

$5.65

In stock
