2018 Suzuki VZ1500L8 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2018 Suzuki VZ1500L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

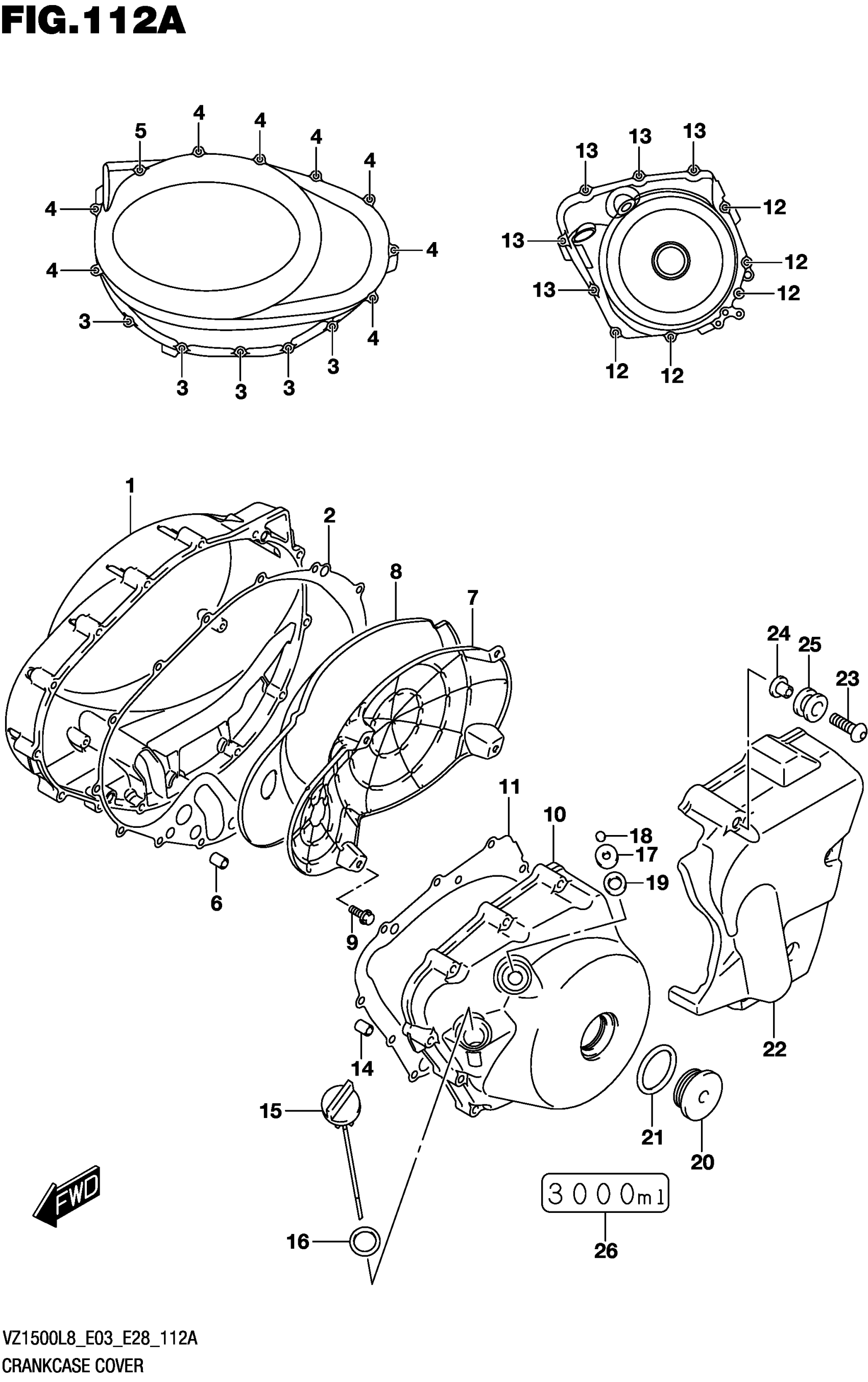

2018 Suzuki VZ1500L8 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

11341-40H20

1

$852.60

In stock

2

.GASKET

11482-40H00

1

$31.62

In stock

3

BOLT (6X30)

09103-06213

5
Out of stock

4

BOLT (6X40)

09103-06215

8

$2.92

In stock

5

BOLT (6X50)

09103-06238

1
Out of stock

6

PIN

04211-09189

2
Out of stock

7

PLATE

11342-40H00

1
Out of stock

8

DAMPER

11343-40H00

1
Out of stock

9

BOLT

01547-0612A

4
Out of stock

10

COVER

11351-40H20

1

$624.62

In stock

11

.GASKET

11483-40H00

1

$21.80

In stock

12

BOLT (6X30)

09103-06213

5
Out of stock

13

BOLT (6X40)

09103-06215

5

$2.92

In stock

14

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

15

GAUGE,OIL LEVEL

11971-09403

1

$13.50

In stock

16

O-RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

17

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

18

CAP (OD:12)

09250-08012

1

$2.35

In stock

19

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

20

PLUG (36X10)

09259-36008

1

$11.37

In stock

21

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

22

COVER

11361-40H20

1

$128.58

In stock

23

SCREW (6X20)

09139-06028

3
Out of stock

24

WASHER (6.3X17X1.6)

09169-06062

3
Out of stock

25

CUSHION (9X18X10)

09320-09501

3

$2.22

In stock

26

NOTE

68322-40H00

1
Out of stock
