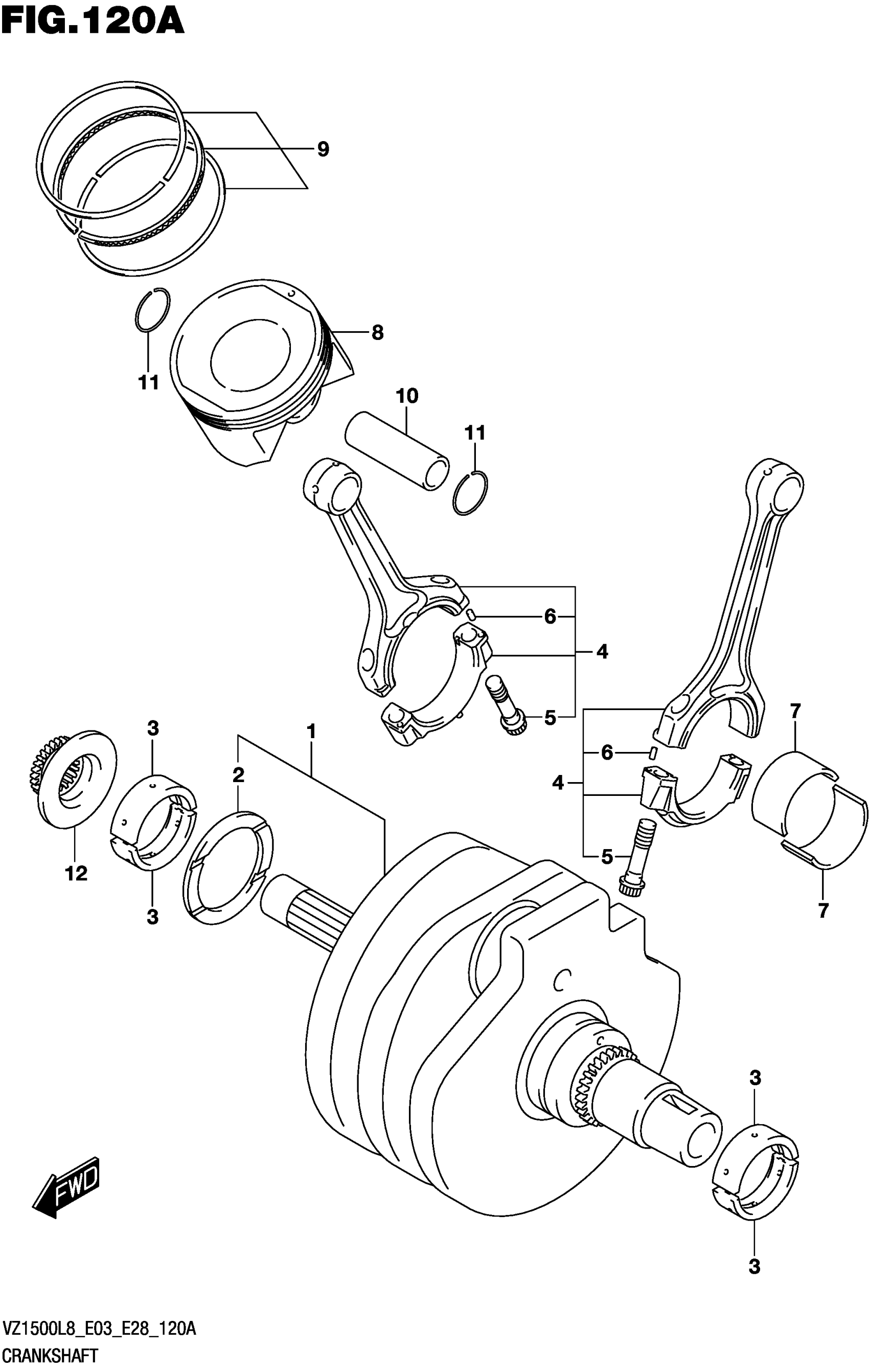

Suzuki VZ1500L8 (2018) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12000-40851

$1,736.83

2-1

.BEARING

12228-40H00-0A0

Unavailable

2-1

.BEARING

12228-40H00-0A0

Unavailable

2-2

.BEARING

12228-40H00-0B0

Unavailable

2-2

.BEARING

12228-40H00-0B0

Unavailable

2-3

.BEARING

12228-40H00-0C0

Unavailable

2-3

.BEARING

12228-40H00-0C0

Unavailable

2-4

.BEARING

12228-40H00-0D0

Unavailable

2-4

.BEARING

12228-40H00-0D0

Unavailable

2-5

.BEARING

12228-40H00-0E0

Unavailable

2-5

.BEARING

12228-40H00-0E0

Unavailable

2-6

.BEARING

12228-40H00-0F0

Unavailable

2-6

.BEARING

12228-40H00-0F0

Unavailable

3-1

BEARING

12229-40H00-0A0

Unavailable

3-2

BEARING

12229-40H00-0B0

Unavailable

3-3

BEARING

12229-40H00-0C0

$28.85

4

CONNROD ASSY

12160-40H00

$274.80

5

.BOLT,CONNROD

12163-06G00

$20.85

6

PIN (4X13.8)

04221-04089

$1.49

7-1

BEARING

12164-40H00-0A0

Unavailable

7-2

BEARING

12164-40H00-0B0

$22.52

7-3

BEARING

12164-40H00-0C0

Unavailable

7-4

BEARING

12164-40H00-0D0

Unavailable

8

PISTON (YELLOW)

12111-40H10-0F0

$171.07

9

RING SET

12140-40H01

$92.00

10

PIN,PISTON

12151-02F10

$29.15

11

CIRCLIP

09381-22002

$1.65

12

SPROCKET

12731-40H00

Unavailable

12

SPROCKET

12731-40H00

Unavailable
