2018 Suzuki VZ1500L8 Clutch Diagram

← All diagrams

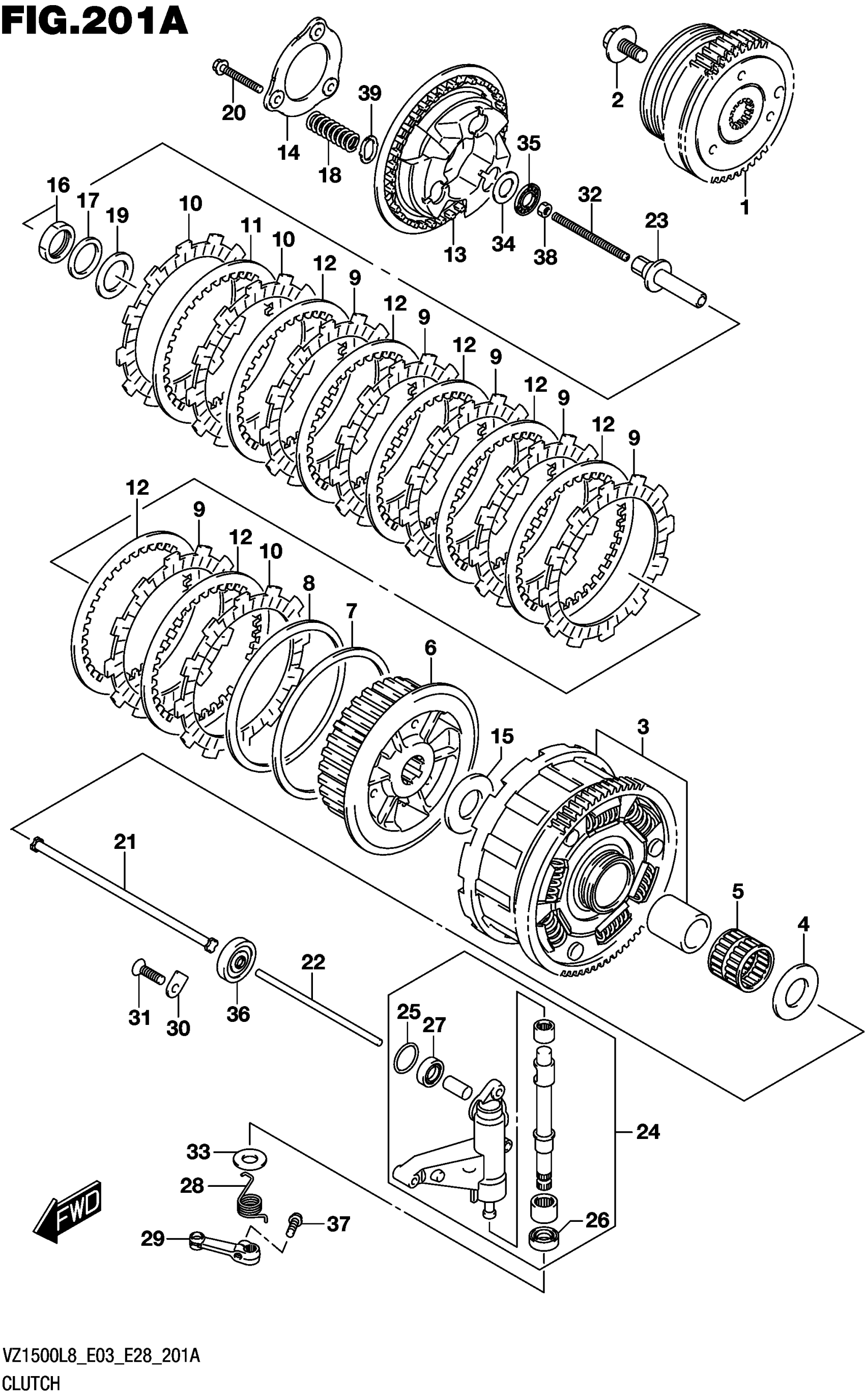

Find the part on the Clutch diagram for your 2018 Suzuki VZ1500L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VZ1500L8 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR

21100-40832

1
Out of stock

2

BOLT (14X28)

09103-14010

1
Out of stock

3

GEAR

21200-40891

1
Out of stock

4

WASHER (25X52X2.5)

09160-25074

1
Out of stock

5

BEARING (35X40X39.8)

09263-35013

1
Out of stock

6

HUB

21411-06J10

1
Out of stock

7

.SEAT,WAVE WASHER

21471-24F00

1
Out of stock

8

.WASHER,CLUTCH PLATE WAVE

21472-24F00

1
Out of stock

9

PLATE,CLUTCH DRIVE NO.1 (T:3.

21441-31J00

6
Out of stock

10

.PLATE,CLUTCH DRIVE NO.2 (T:3

21442-31J00

3
Out of stock

11

.PLATE,CLUTCH DRIVEN NO.2 (T:

21452-31J00

1
Out of stock

12

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

7
Out of stock

13

.DISC,CLUTCH PRESSURE

21462-31J10

1
Out of stock

14

.PLATE,STOPPER

21414-31J00

1
Out of stock

15

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

16

NUT

09159-24010

1
Out of stock

17

WASHER (24.2X35X2.7)

09164-24008

1
Out of stock

18

SPRING

21413-06J10

3
Out of stock

19

SHIM (25X38X1)

09181-25223

1
Out of stock

20

.BOLT,CLUTCH SPRING

21412-31J00

3
Out of stock

21

ROD,CLUTCH (L:195.5)

23110-24F00

1
Out of stock

22

ROD

23111-40H00

1
Out of stock

23

PIECE,CLUTCH PUSH

23121-41G00

1
Out of stock

24

CAMSHAFT SET

23120-41810

1
Out of stock

25

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock

26

SEAL,OIL (10X20X6)

09282-10012

1
Out of stock

27

SEAL,OIL (10X17X5)

09285-10004

1
Out of stock

28

SPRING,CLUTCH RELEASE RETURN

23125-48G00

1
Out of stock

29

ARM

23271-48G10

1
Out of stock

30

RETAINER

24741-20A00

1
Out of stock

31

SCREW (6X12)

09126-06011

1
Out of stock

32

SCREW (6X73)

09134-06015

1
Out of stock

33

WASHER (10.5X24X1.0)

09160-10020

1
Out of stock

34

WASHER (15.5X28X1)

09160-15045

1
Out of stock

35

BEARING (15X28X2)

09263-15003

1
Out of stock

36

OIL SEAL (6X18X5)

09283-06005

1
Out of stock

37

BOLT

01547-0620A

1
Out of stock

38

NUT

08310-0006A

1
Out of stock

39

.SEAT,CLUTCH SPRING

21415-31J00

3
Out of stock
