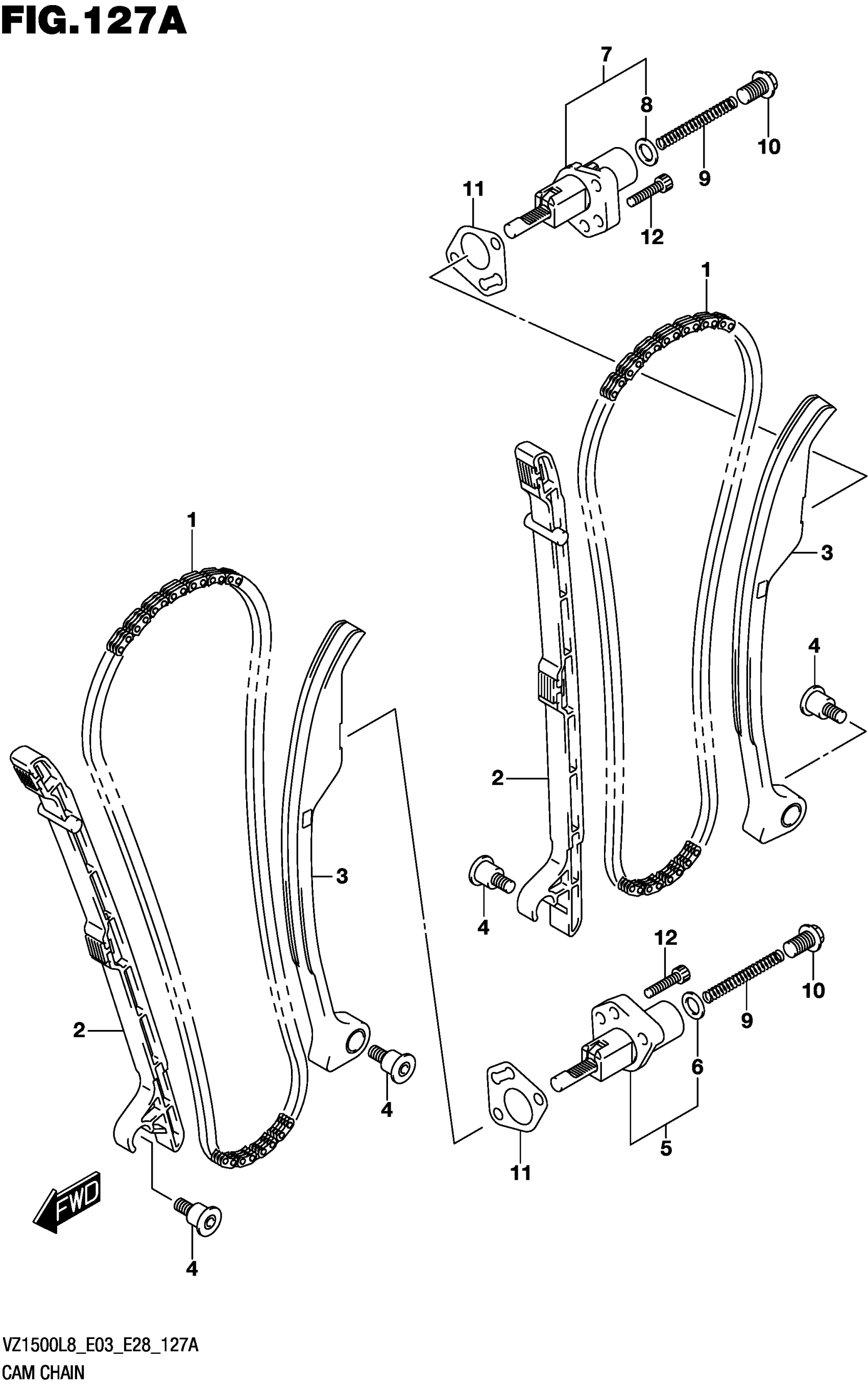

Suzuki VZ1500L8 (2018) CAM CHAIN Diagram

#

Description
Price

1

CHAIN

12760-40H00

Unavailable

2

GUIDE,CAM CHAIN This part replaces 12771-40H00.

12771-40H01

$35.50

3

TENSIONER

12811-40H00

Unavailable

4

BOLT,CAM CHAIN TENSIONER

12812-31G00

$4.58

5

ADJUSTER ASSY

12830-40H00

Unavailable

6

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.78

7

ADJUSTER ASSY

12830-40H10

Unavailable

8

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.78

9

SPRING

12831-41G00

$5.62

10

PLUG,TENSIONER ADJUSTER

12833-17G00

$7.87

11

.GASKET,TENSIONER ADJUSTER

12837-27G00

$4.72

12

BOLT (6X25)

07130-0625A

$2.62
