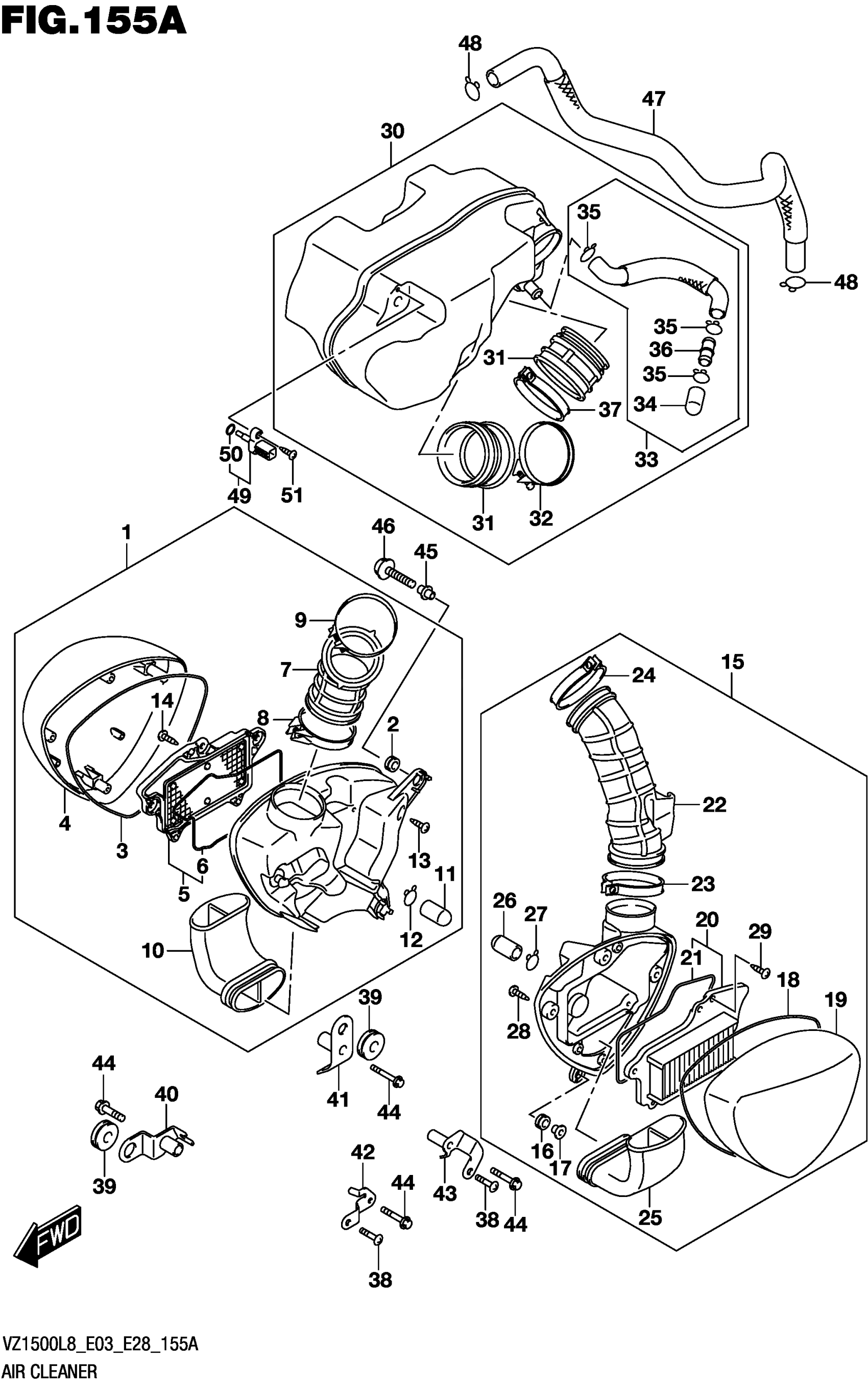

Find the part on the Air Cleaner diagram for your 2018 Suzuki VZ1500L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VZ1500L8 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER

13701-40H20

—
Out of stock

2

CUSHION (9X18X9.5)

09320-09016

2
Out of stock

3

.GASKET

13756-40H00

1
Out of stock

4

.CAP

13741-40HB0

1
Out of stock

5

.FILTER ASSY

13780-40H00

1
Out of stock

6

..GASKET

13787-40H00

1
Out of stock

7

.TUBE

13738-40H00

1
Out of stock

8

.CLAMP

13826-40HA0

1
Out of stock

9

.CLAMP

13826-40H00

1
Out of stock

10

.TUBE

13891-40H01

1
Out of stock

11

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

1
Out of stock

12

.CLIP (ID:14.5)

09401-14101

1
Out of stock

13

.SCREW

03211-0520A

4
Out of stock

14

SCREW

03541-0516A

3
Out of stock

15

CLEANER

13702-40HB0

1
Out of stock

16

CUSHION (9X18X9.5)

09320-09016

2
Out of stock

17

.COLLAR,CLEANER CASE

13812-29C50

2
Out of stock

18

.GASKET

13756-40H00

1
Out of stock

19

.CAP

13741-40HB0

1
Out of stock

20

.FILTER ASSY

13780-40H00

1
Out of stock

21

..GASKET

13787-40H00

1
Out of stock

22

.TUBE

13739-40H00

1
Out of stock

23

.CLAMP

13826-40HA0

1
Out of stock

24

CLAMP,INTAKE PIPE

13827-40H01

1
Out of stock

25

.TUBE

13891-40H01

1
Out of stock

26

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

1
Out of stock

27

.CLIP (ID:14.5)

09401-14101

1
Out of stock

28

.SCREW

03211-0520A

4
Out of stock

29

SCREW

03541-0516A

3
Out of stock

30

CHAMBER

13710-40H01

1
Out of stock

31

.TUBE

13881-40H01

2
Out of stock

32

.CLAMP

13170-39H00

1
Out of stock

33

.TUBE

13870-40H00

1
Out of stock

34

.PLUG

13859-41B10

1
Out of stock

35

.CLIP (ID:14.5)

09401-14101

3
Out of stock

36

JOINT 2ND AIR CLEANER HOSE

13888-19B00

1
Out of stock

37

.CLAMP

13826-40HB0

1
Out of stock

38

SCREW (6X20)

09139-06056

2
Out of stock

39

CUSHION (8X26X7)

09320-08028

2
Out of stock

40

BRACKET

13760-40H00

1
Out of stock

41

BRACKET

13770-40H00

1
Out of stock

42

BRACKET

13770-40H11

1
Out of stock

43

BRACKET

13770-40H20

1
Out of stock

44

BOLT (6X30)

09103-06509

4
Out of stock

45

SPACER

13838-40H00

2
Out of stock

46

SCREW (6X35)

09136-06167

2
Out of stock

47

TUBE

13850-40H00

1
Out of stock

48

CLIP

09401-20405

2
Out of stock

49

SENSOR,AIR TEMP

13650-41F10

1
Out of stock

50

O-RING

13655-41F10

1
Out of stock

51

SCREW

03511-0516B

1
Out of stock
