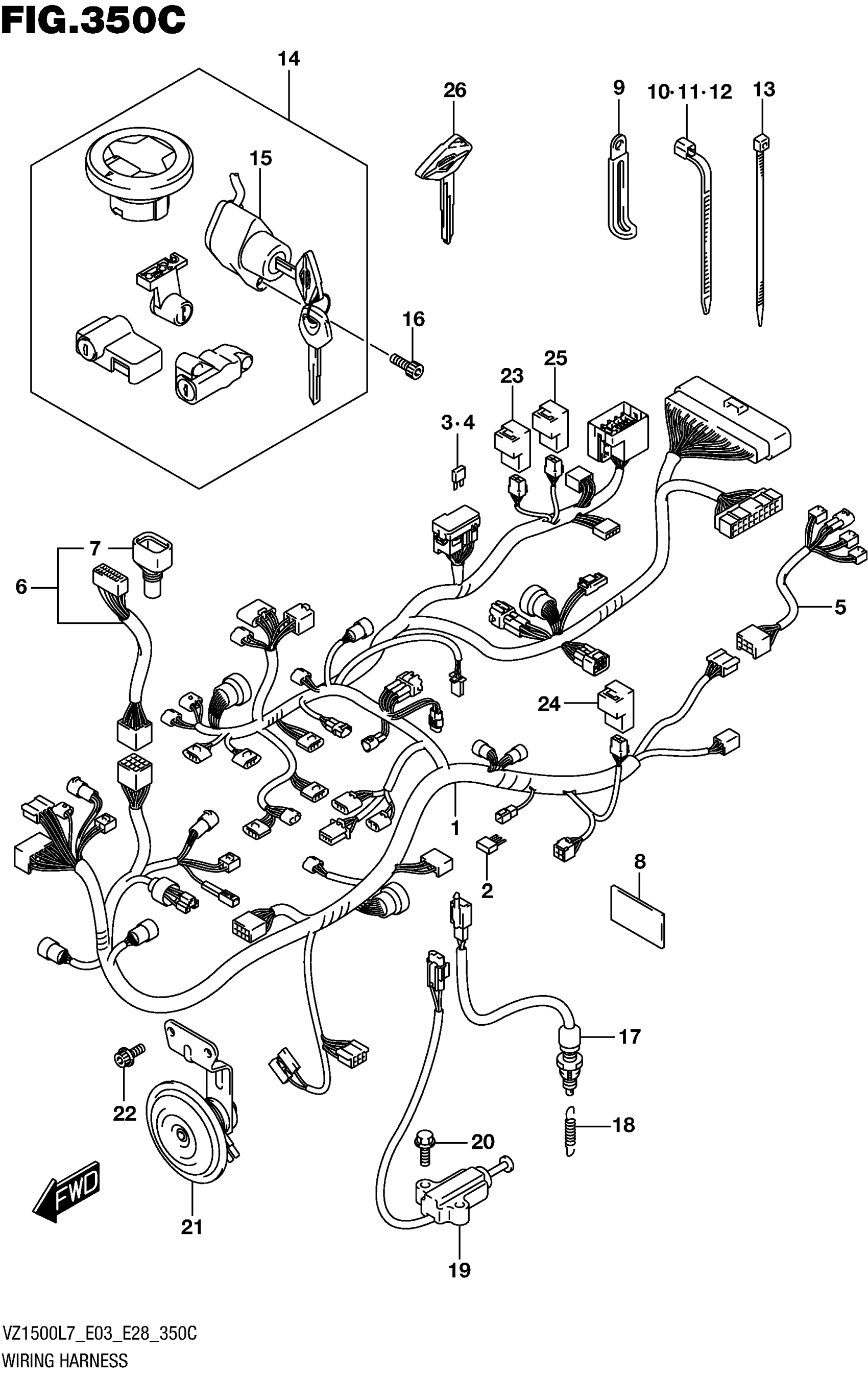

Suzuki VZ1500L7 (2017) WIRING HARNESS (VZ1500L7 E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-40HG0

$1,141.37

2

.DIODE

36611-38A10

$13.16

3

.FUSE (10A)

09481-10501

$2.06

4

.FUSE (15A)

09481-15501

$2.02

5

WIRE, REAR CORD

36858-40H00

Unavailable

6

WIRE, METER LEAD

36859-40H00

Unavailable

7

.BOOT

36618-33E00

$8.77

8

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$3.70

9

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:190)

09407-19401

$3.05

12

CLAMP (L:95)

09407-10403

Unavailable

13

CLAMP (L:145)

09407-14407

$3.57

14

LOCK SET

37000-40880

Unavailable

15

SWITCH ASSY,IGN This part replaces 37110-40H31.

37110-40H32

$148.48

16

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

17

SWITCH ASSY, STOP LAMP

37740-19F00

$31.28

18

SPRING

09443-06077

$5.60

19

SWITCH ASSY,SID This part replaces 37840-22H00.

37840-22H01

$85.15

20

BOLT

01547-0620A

$2.03

21

HORN ASSY

38500-40H00

$87.70

22

BOLT

07120-0612B

$3.04

23

RELAY ASSY | FOR FUEL PUMP

38740-24X50

$45.20

24

RELAY ASSY | FOR FAN MOTOR

38740-24X50

$45.20

25

RELAY ASSY | FOR HEADLAMP

38740-24A00

$63.30

26

KEY, BLANK (BOULEVARD) | OPT

37146-10F00

$50.63
