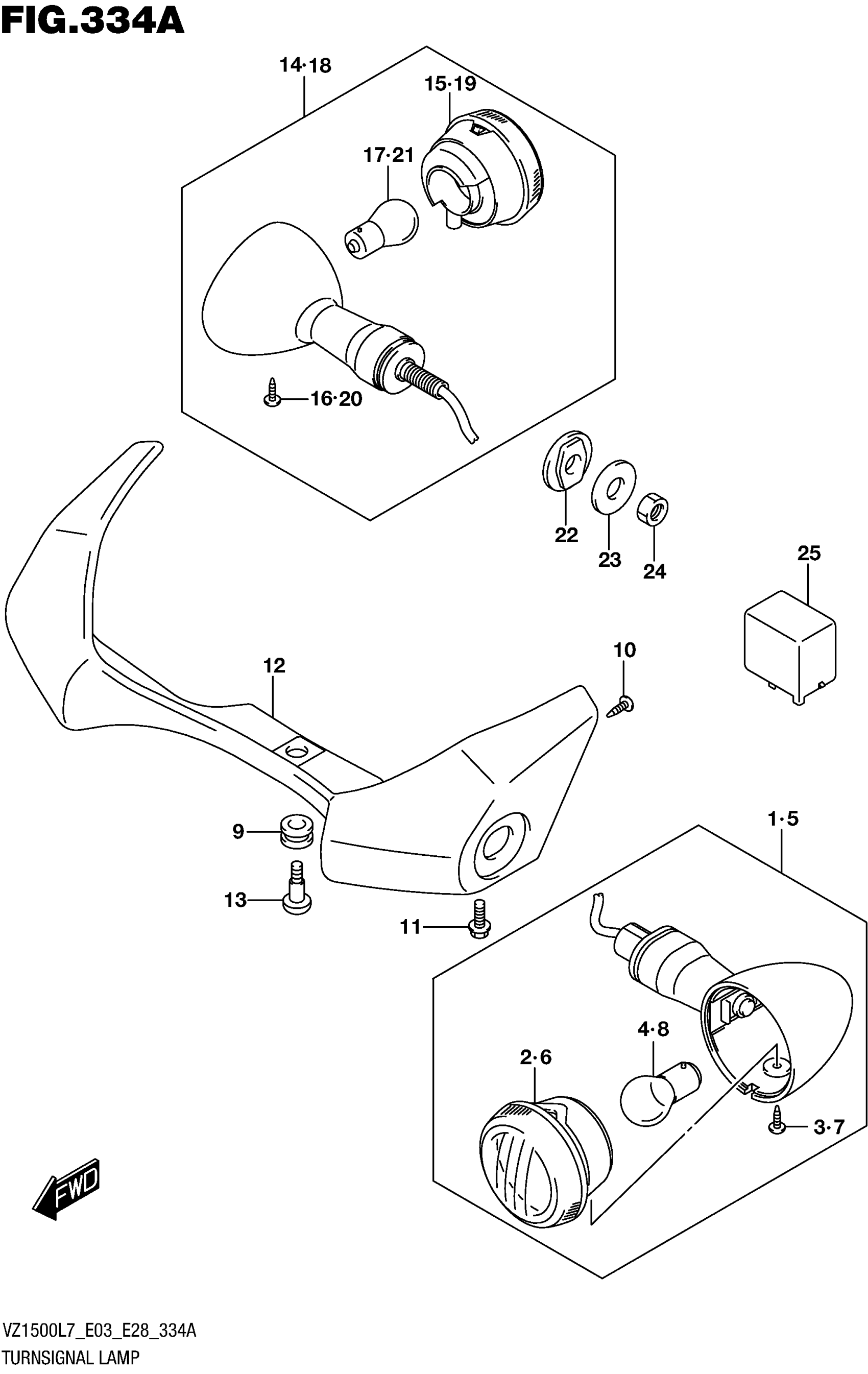

Suzuki VZ1500L7 (2017) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-38AF0

$151.52

2

.LENS

35610-38AA0

$28.79

3

.SCREW (4X10)

35623-38AA0

$4.67

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-38AF0

$107.97

6

.LENS

35630-38AA0

$29.21

7

.SCREW (4X10)

35623-38AA0

$4.67

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

9

CUSHION

09320-09016

$1.97

10

SCREW

03541-0512A

$1.37

11

BOLT

01547-0612A

$2.01

12

STAY, FRONT TURNSIGNAL

35641-40HB0

$148.85

13

SCREW (6X16)

09139-06146

$2.80

14

LAMP ASSY,RR TU This part replaces 35603-38AG0.

35603-38AG1

$126.07

15

.LENS

35630-38AE1

$29.21

16

.SCREW (4X10)

35623-38AA0

$4.67

17

.BULB (12V,21W)

09471-12045

$2.95

18

LAMP ASSY,RR TU This part replaces 35604-38AG0.

35604-38AG1

$113.63

19

.LENS

35610-38AE1

$28.79

20

.SCREW (4X10)

35623-38AA0

$4.67

21

.BULB (12V,21W)

09471-12045

$2.95

22

SPACER, REAR TURNSIGNAL

35695-17C00

$3.69

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT

08310-0010A

$1.86

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
