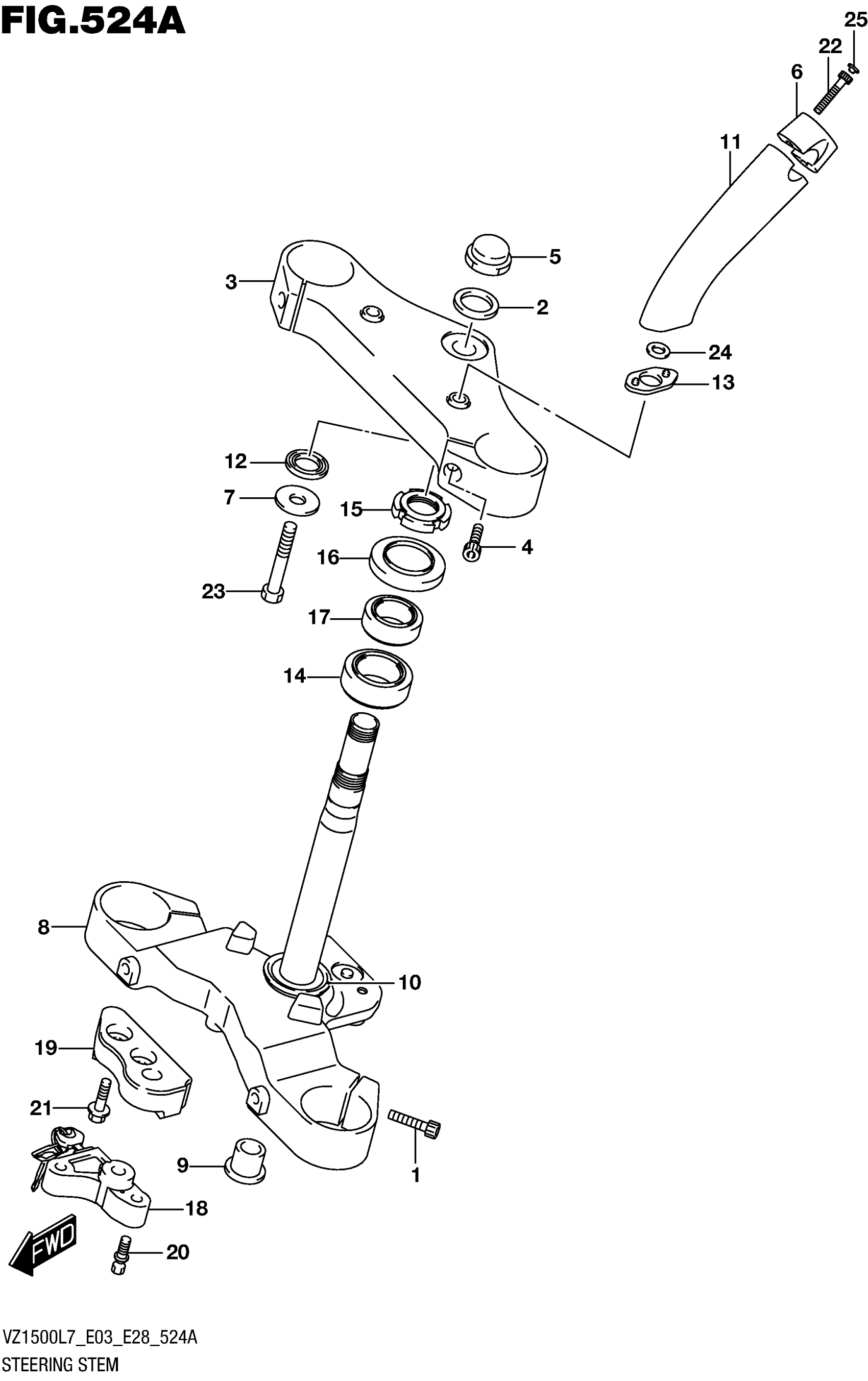

Suzuki VZ1500L7 (2017) STEERING STEM Diagram

#

Description
Price

1

BOLT

51451-32E40

$6.23

2

WASHER, LOWER

51356-10D03

$7.50

3

BRACKET, UPPER

51311-40H30

$516.08

4

BOLT

51328-05H00

$5.75

5

NUT, CAP

51353-24B00

$30.67

6

HOLDER, HANDLE

56211-39G60

$83.93

7

WASHER

51355-16G00

$5.77

8

BRACKET, UNDER

51410-40H30

Unavailable

9

CAP

51482-44G00

Unavailable

10

SEAL, STEERING LOWER

51644-12C00

$9.44

11

HOLDER, HANDLE

56221-39G60

$501.20

12

RUBBER, HANDLE HOLDER

56245-16G00

$7.05

13

RUBBER, HANDLE HOLDER

56245-39G00

$9.42

14

BEARING (30X55X17)

09265-30020

$44.41

15

NUT, STEERING STEM

51631-31F00

$19.87

16

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

17

BEARING (25X47X15)

09265-25038

$45.57

18

LOCK ASSY, STEERING

51900-22820

Unavailable

19

BRACKET, STEERING LOCK

51921-40H00

Unavailable

20

SCREW, STEERING LOCK

51925-48G00

$8.05

21

BOLT (8X30)

09103-08197

$1.70

22

BOLT

51451-32E40

$6.23

23

BOLT

51226-23H00

$37.82

24

WASHER

51354-42F00

$4.58

25

CAP (OD:11)

09250-06011

$2.50
