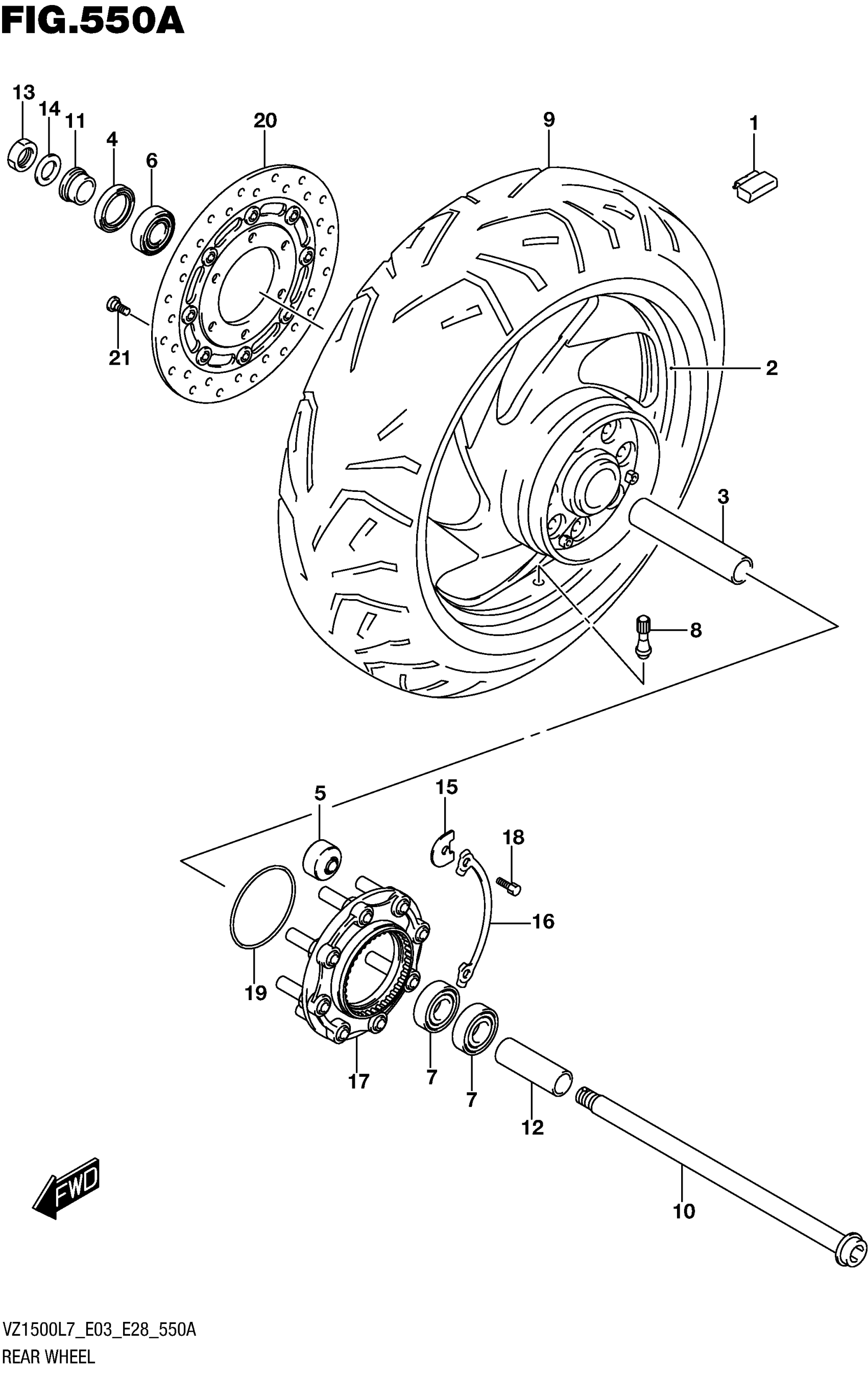

Find the part on the Rear Wheel diagram for your 2017 Suzuki VZ1500L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki VZ1500L7 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

1
Out of stock

1-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

1
Out of stock

1-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

1
Out of stock

2

WHEEL, REAR (17M/CXMT6.00)

64111-40H00-019

1

$1,269.72

In stock

2

(BLACK)

64111-40H00-019

1

$1,269.72

In stock

3

1

$46.98

In stock

4

.SEAL,OIL (32X52X7)

09285-32004

1
Out of stock

5

BUSH

09319-12019

8
Out of stock

6

1

$41.35

In stock

7

2

$23.75

In stock

8

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

9

TIRE, REAR (200/50ZR17M/C) | G852 RADIAL G (T/L)

65110-40H00

1
Out of stock

9

TIRE | BRIDGESTONE

65110-40H00

1
Out of stock

10

AXLE, REAR

64711-48G00

1

$242.02

In stock

11

SPACER, REAR AXLE RH

64741-48G00

1

$29.88

In stock

12

SPACER, REAR AXLE LH

64772-48G00

1

$45.40

In stock

13

NUT

09159-22007

1

$18.59

In stock

14

WASHER (22X35X2)

09160-22081

1
Out of stock

15

WASHER, THRUST

64677-48G10

4

$8.37

In stock

16

2

$7.10

In stock

17

1

$425.25

In stock

18

BOLT (6X16)

09119-06049

4
Out of stock

19

1

$3.79

In stock

20

DISC, REAR BRAKE

69210-10F60

1

$322.53

In stock

21

BOLT (8X21)

09106-08160

6
Out of stock
