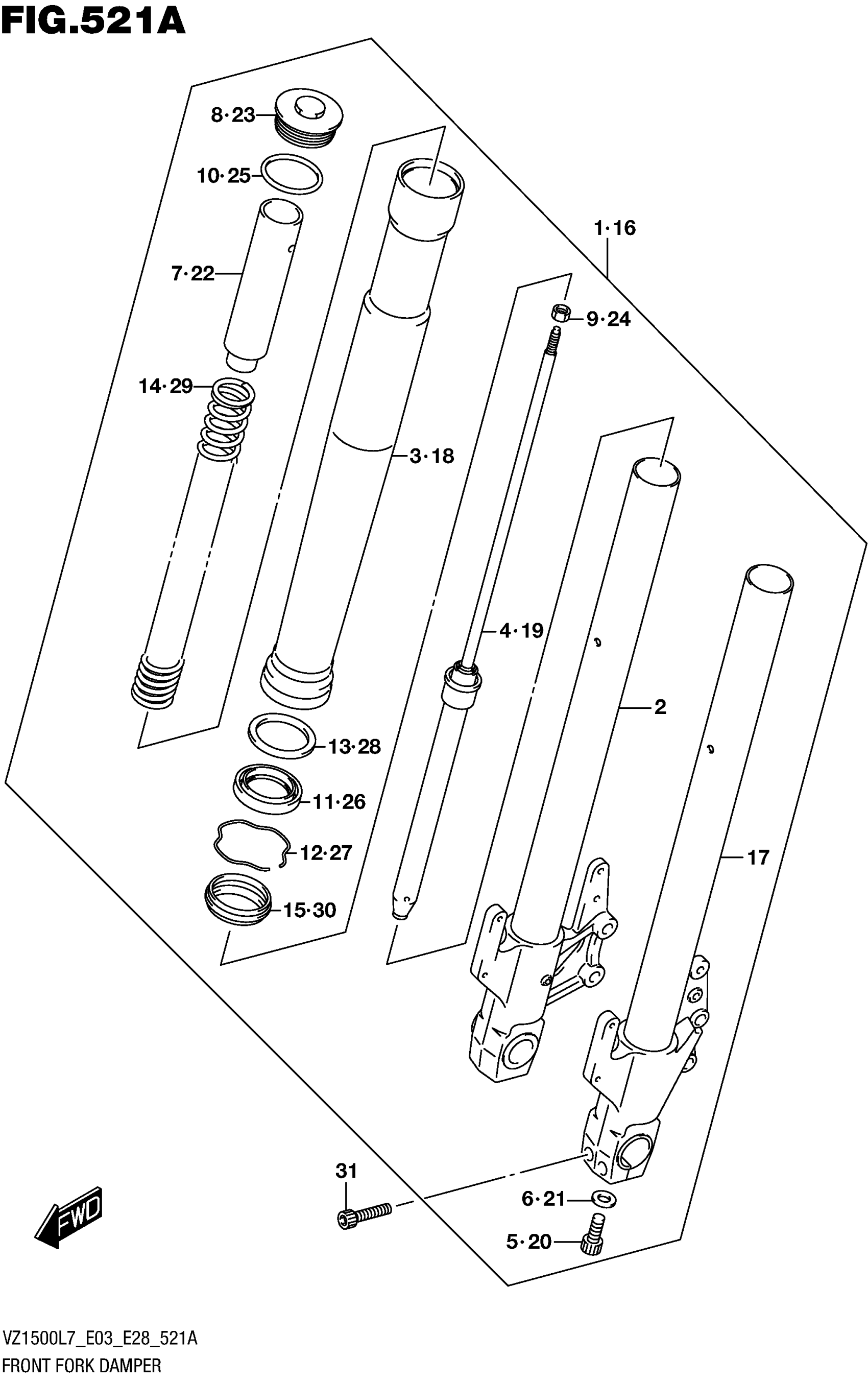

Find the part on the Front Fork Damper diagram for your 2017 Suzuki VZ1500L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki VZ1500L7 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-40H30

1
Out of stock

2

.TUBE, INNER RH

51110-40H30

1
Out of stock

3

.TUBE, OUTER

51130-40H30

1
Out of stock

4

.CYLINDER

51146-40H00

1
Out of stock

5

.BOLT

51147-05H00

1
Out of stock

6

.GASKET

51148-41310

1
Out of stock

7

.SPACER, SPRING

51176-21H00

1

$30.92

In stock

8

.CAP

51351-40H30

1
Out of stock

9

.NUT, ROD

51352-13A60

1
Out of stock

10

..O RING

62278-14100

1
Out of stock

11

.SEAL, OIL

51153-41G00

1
Out of stock

12

.RING, STOPPER

51156-14200

1
Out of stock

13

.WASHER

51158-14200

1
Out of stock

14

.SPRING

51171-40H00

1
Out of stock

15

.SEAL, DUST

51173-41G00

1
Out of stock

16

DAMPER ASSY, FRONT FORK LH

51104-40H30

1
Out of stock

17

.TUBE, INNER LH

51120-40H30

1
Out of stock

18

.TUBE, OUTER

51130-40H30

1
Out of stock

19

.CYLINDER

51146-40H00

1
Out of stock

20

.BOLT

51147-05H00

1
Out of stock

21

.GASKET

51148-41310

1
Out of stock

22

.SPACER, SPRING

51176-21H00

1

$30.92

In stock

23

.CAP

51351-40H30

1
Out of stock

24

.NUT, ROD

51352-13A60

1
Out of stock

25

..O RING

62278-14100

1
Out of stock

26

.SEAL, OIL

51153-41G00

1
Out of stock

27

.RING, STOPPER

51156-14200

1
Out of stock

28

.WASHER

51158-14200

1
Out of stock

29

.SPRING

51171-40H00

1
Out of stock

30

.SEAL, DUST

51173-41G00

1
Out of stock

31

BOLT

51328-31F30

—
Out of stock
