GEAR SHIFTING

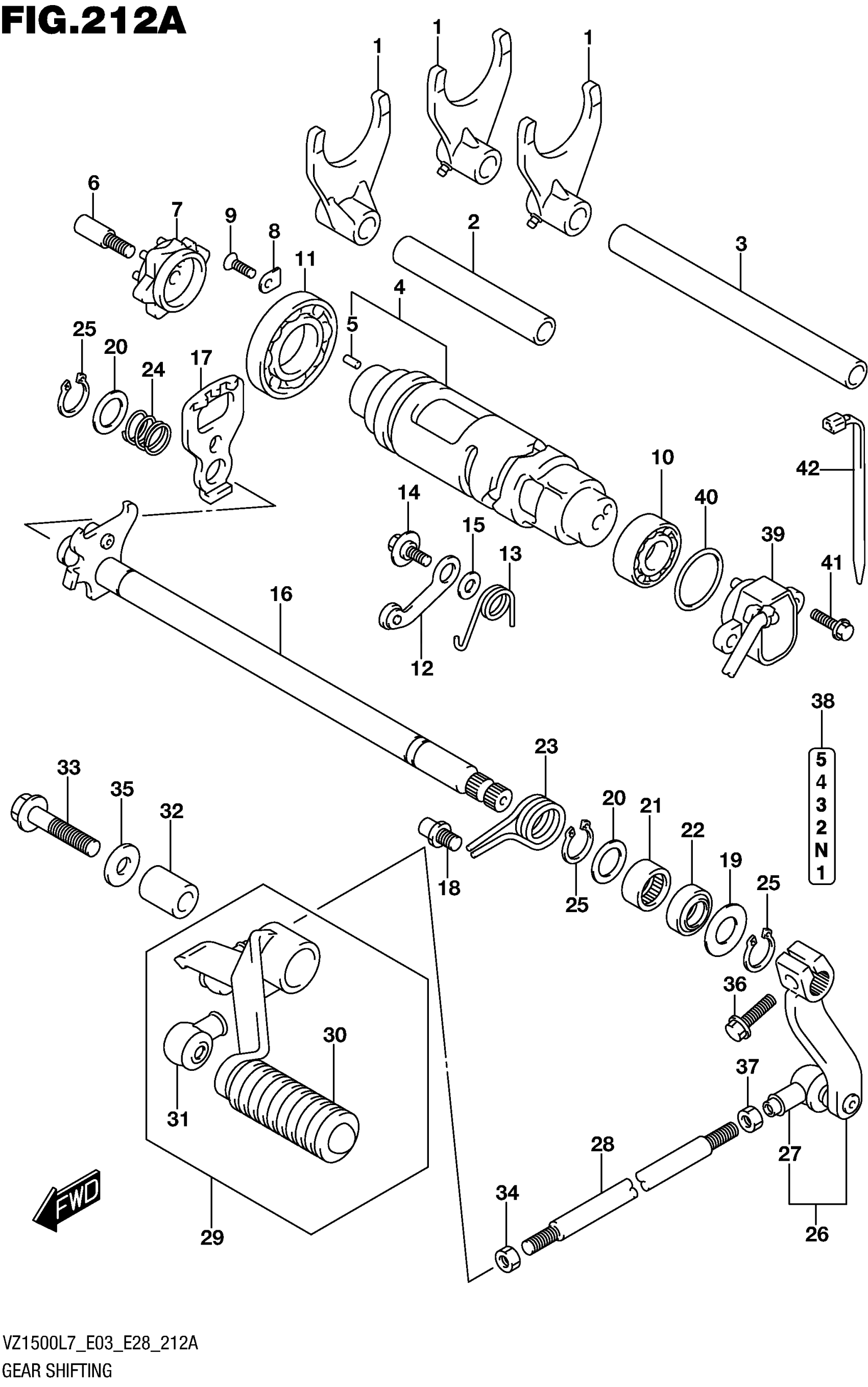

2017 Suzuki VZ1500L7 Gear Shifting Diagram
Find the part on the Gear Shifting diagram for your 2017 Suzuki VZ1500L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
SHAFT,GEAR SHIFT FORK NO.1
25411-44B00
5
PIN (4X13.8)
04221-04089
6
STOPPER, SHIFT CAM DRIVE
25312-42F01
9
SCREW (6X12)
09126-06011
10
BEARING | RH
08113-69050
15
WASHER
08211-06141
16
SHAFT, GEAR SHIFT
25510-40H00
17
PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.
25512-06G20
18
STOPPER, GEAR SHIFT ARM
25671-01011
20
SHIM (14X22X1)
09181-14167
23
SPRING
09440-17009
25
CIRCLIP
08331-3114A
27
.COVER, DUST This part replaces 25526-47000.
25526-47001
31
.COVER, DUST This part replaces 25526-47000.
25526-47001
34
NUT
09140-06025
36
BOLT
01547-0620A
37
NUT
08310-0006A
38
LABEL, GEAR SHIFT
68392-38B00
41
BOLT
07120-0516A
42
CLAMP (L:125)
09407-14403
