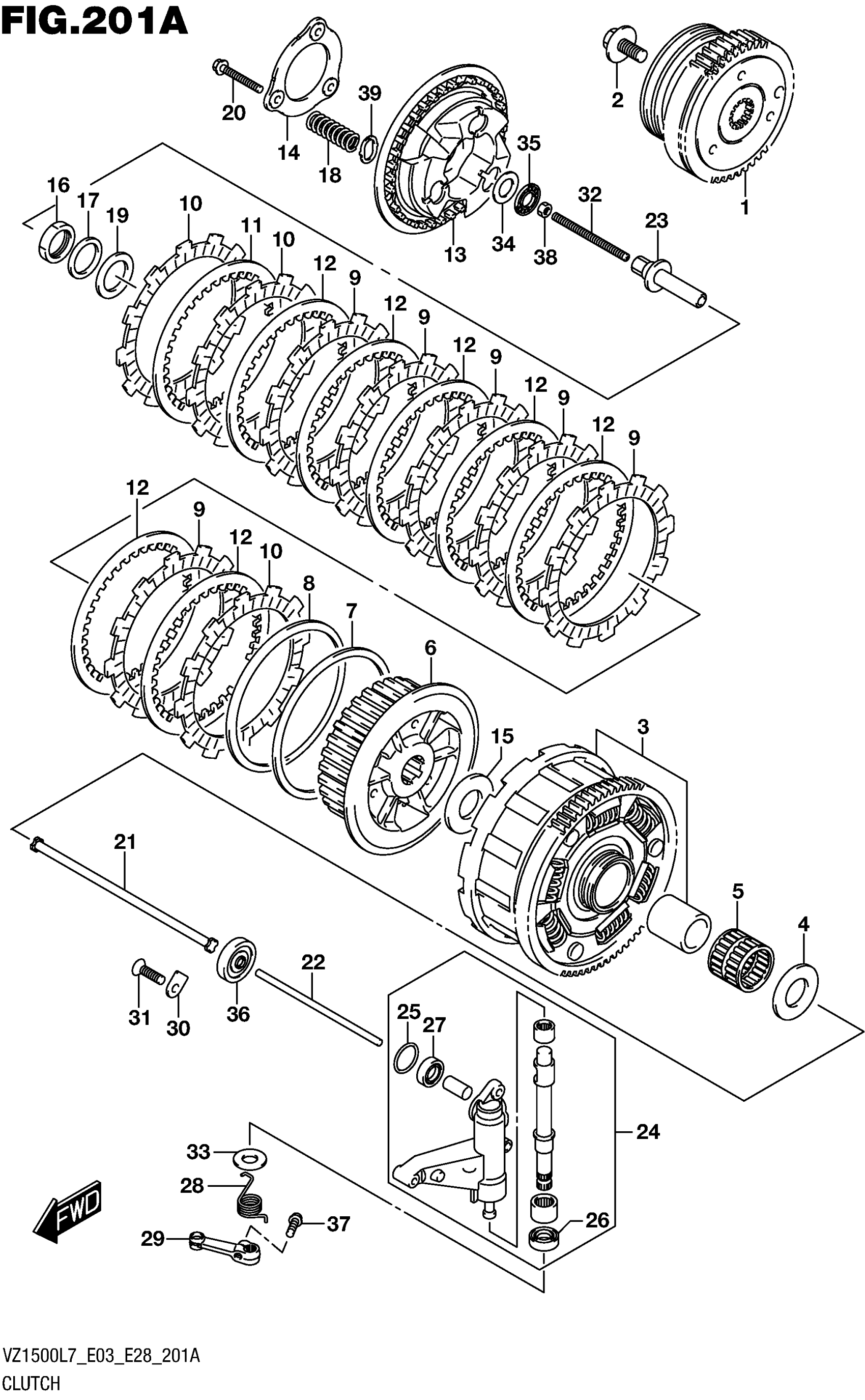

Suzuki VZ1500L7 (2017) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:54)

21100-40831

Unavailable

2

BOLT (14X28)

09103-14010

$19.02

3

GEAR This part replaces 21200-40890.

21200-40891

$608.33

4

WASHER (25X52X2.5)

09160-25074

$10.00

5

BEARING (35X40X39.8)

09263-35013

$32.08

6

HUB, CLUTCH SLEEVE

21411-06J10

$180.67

7

.SEAT,WAVE WASHER

21471-24F00

$13.05

8

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$14.59

9

PLATE, CLUTCH DRIVE (T:3.8)

21441-31J00

$22.73

10

.PLATE,CLUTCH DRIVE NO.2 (T:3

21442-31J00

$22.73

11

.PLATE,CLUTCH DRIVEN NO.2 (T:

21452-31J00

$16.65

12

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$10.61

13

.DISC,CLUTCH PRESSURE

21462-31J10

$111.10

14

.PLATE,STOPPER

21414-31J00

$21.93

15

.WASHER (25X50X2.5)

09160-25056

$10.63

16

NUT

09159-24010

$11.92

17

WASHER

09164-24008

$5.00

18

SPRING, CLUTCH

21413-06J10

$7.10

19

SHIM (25X38X1)

09181-25223

$2.90

20

.BOLT,CLUTCH SPRING

21412-31J00

$4.63

21

ROD, CLUTCH

23110-24F00

$20.93

22

ROD, CLUTCH PUSH LH

23111-40H00

Unavailable

23

PIECE, CLUTCH PUSH

23121-41G00

$55.32

24

CAMSHAFT SET, CLUTCH RELEASE

23120-41810

Unavailable

25

O RING (D:2.5,ID:21)

09280-21008

$1.89

26

.OIL SEAL (10X20X6)

09282-10012

$7.20

27

.OIL SEAL (10X17X5)

09285-10004

$3.04

28

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$4.47

29

ARM, CLUTCH RELEASE

23271-48G10

$102.83

30

RETAINER

24741-20A00

$2.80

31

SCREW (6X12)

09126-06011

$2.01

32

SCREW (6X73)

09134-06015

$6.21

33

WASHER (10.5X24X1)

09160-10020

$1.86

34

WASHER (15.5X28X1)

09160-15045

$3.52

35

BEARING (15X28X2)

09263-15003

$7.49

36

OIL SEAL (6X18X5)

09283-06005

$12.27

37

BOLT

01547-0620A

$2.01

38

NUT

08310-0006A

$1.83

39

.SEAT,CLUTCH SPRING

21415-31J00

$17.43
