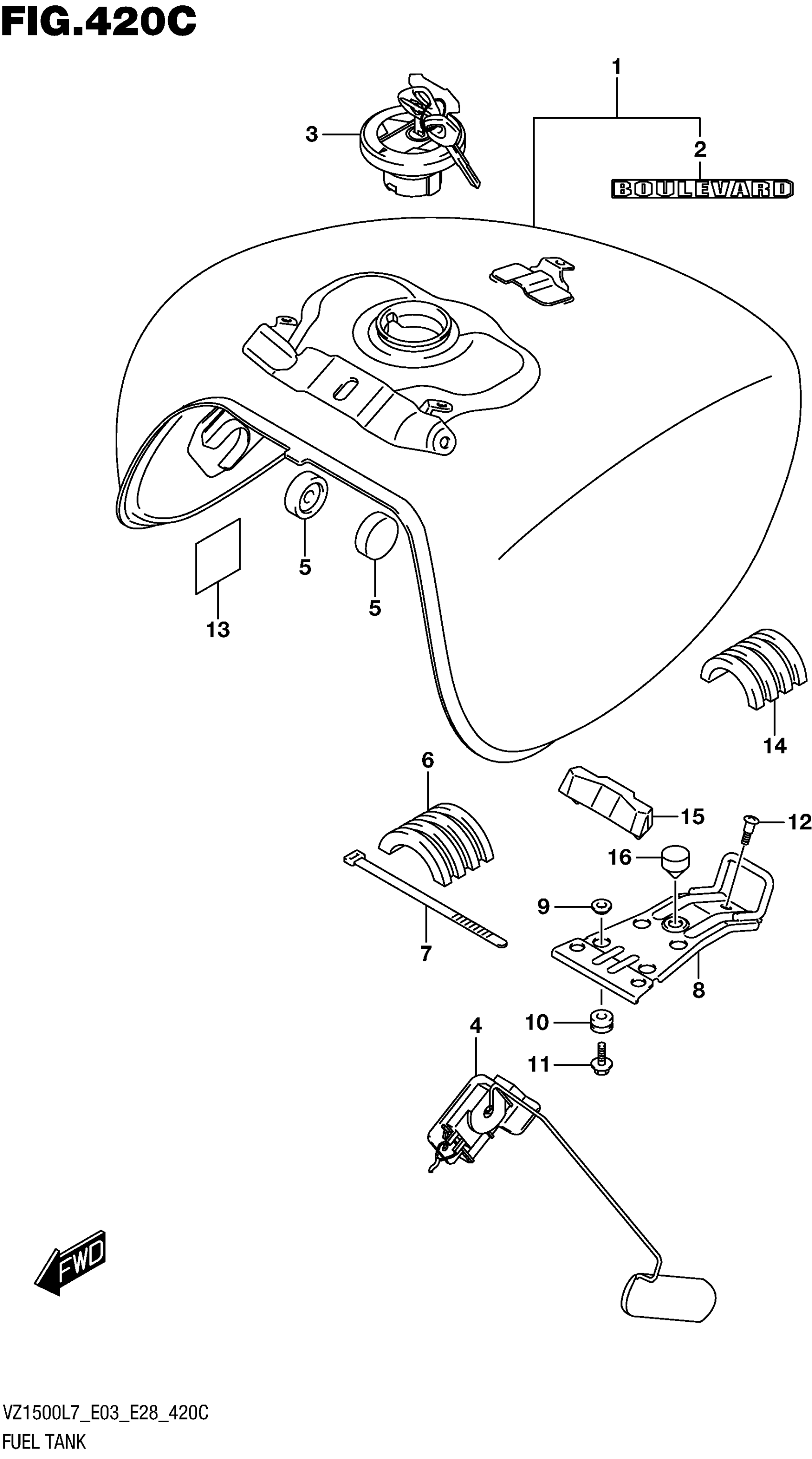

Suzuki VZ1500L7 (2017) FUEL TANK (VZ1500L7 E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLACK)

44100-40H70-YVB

$1,339.05

1-2

TANK ASSY, FUEL (RED)

44100-40H70-YYG

$1,406.02

2-1

.EMBLEM (GRAY) | FOR YVB

68111-48G20-YHG

$25.62

2-2

.EMBLEM (BLACK) | FOR YYG

68111-48G20-019

$26.12

3

CAP SET,FUEL TANK This part replaces 44200-39870.

44200-39871

$237.20

4

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$83.05

5

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

6

CUSHION, FUEL TANK, UPPER

44541-04F00

Unavailable

7

CLAMP (L:300)

09407-30402

$4.11

8

BRACKET, REAR

44530-06J00

$37.73

9

WASHER

09169-06062

$2.50

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

11

BOLT (6X20)

09116-06192

$2.30

12

BOLT (8X12)

01550-0812A

$2.32

13

PROTECTOR

44283-40H00

$6.05

14

CUSHION, TANK SIDE

44541-06J00

Unavailable

15

CUSHION, FUEL TANK BRACKET

44545-06J00

Unavailable

16

CUSHION

09321-10011

$2.91
