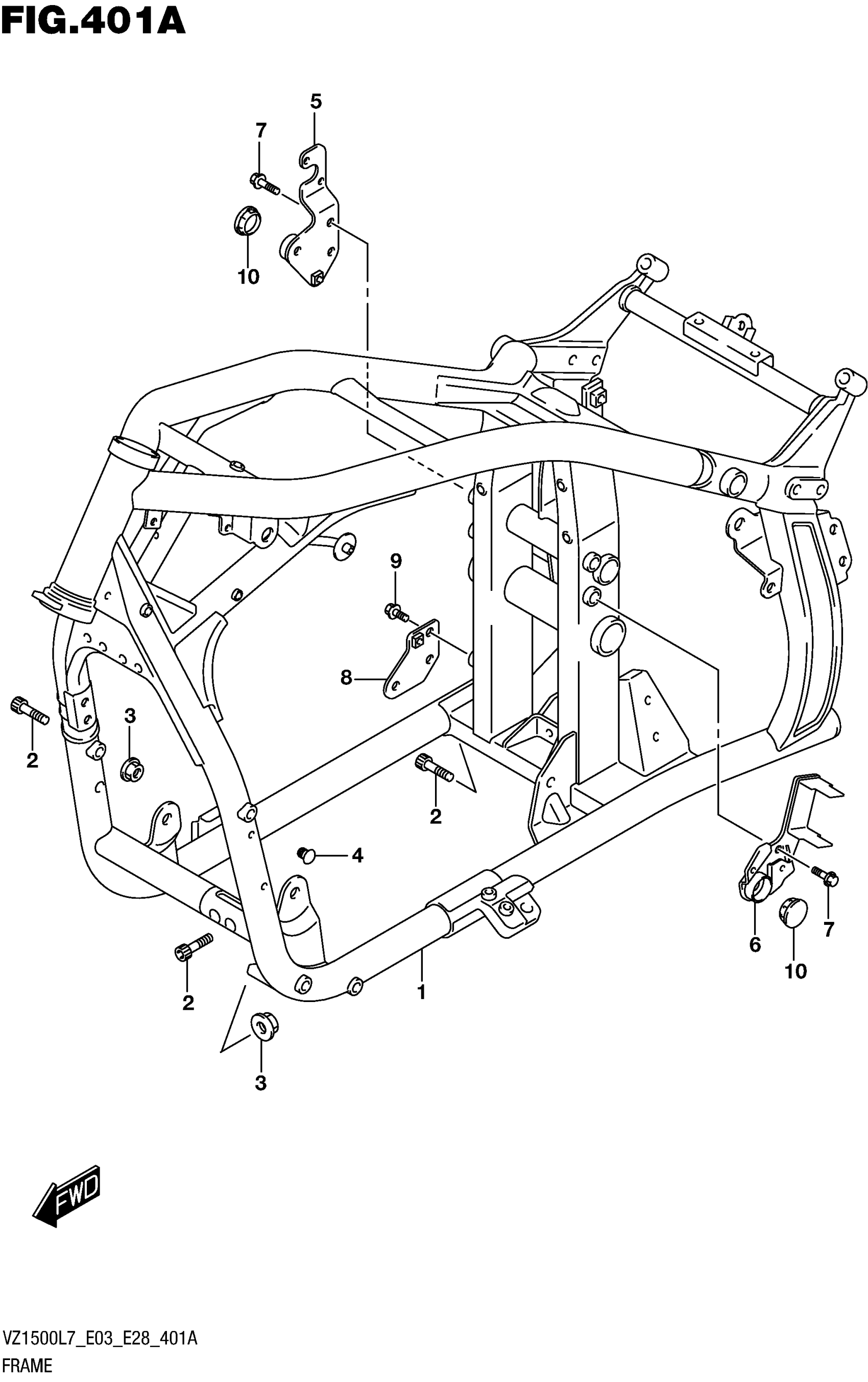

Suzuki VZ1500L7 (2017) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-40H30-019

Unavailable

2

BOLT

07130-1035B

$5.18

3

NUT

08319-3110A

$2.73

4

CAP This part replaces 09250-09001.

09250-09008

$1.54

5

PLATE, MOUNT REAR RH

41930-40H10

Unavailable

6

PLATE, MOUNT REAR LH

41940-40H10

Unavailable

7

BOLT

01550-0820A

$2.23

8

PLATE, MOUNT REAR LOWER RH

41951-40H01

Unavailable

9

BOLT

01550-0820A

$2.23

10

CAP

43585-48G10

$16.78
