Description

Price

1

CAMSHAFT, FRONT

12710-40H00

Unavailable

2

CAMSHAFT, REAR

12730-40H00

Unavailable

3

SPROCKET, CAMSHAFT FRONT

12741-41F00

$62.48

3

(NT:46)

12741-41F00

$62.48

4

WASHER

12747-44001

$2.50

5

PIN

04221-05109

$1.49

6

BOLT (6X12.5)

09100-06169

Unavailable

7

ARM, VALVE ROCKER INTAKE

12840-40H00

Unavailable

8

.SCREW

12842-38A00

$6.17

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM, VALVE ROCKER EXHAUST

12850-40H00

Unavailable

11

.SCREW

12842-38A00

$6.17

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, VALVE ROCKER ARM

12861-40H00

Unavailable

14

WASHER

09164-12018

$1.49

15

VALVE, INTAKE

12911-40H00

Unavailable

16

VALVE, EXHAUST

12912-40H00

Unavailable

17

COTTER, VALVE

12932-24400

$1.94

18

RETAINER, SPRING

12931-33201

$8.28

19

SPRING SET, VALVE

12920-32E00

$16.87

20

SEAT,VALVE SPRING

12933-81400

$5.17

21

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

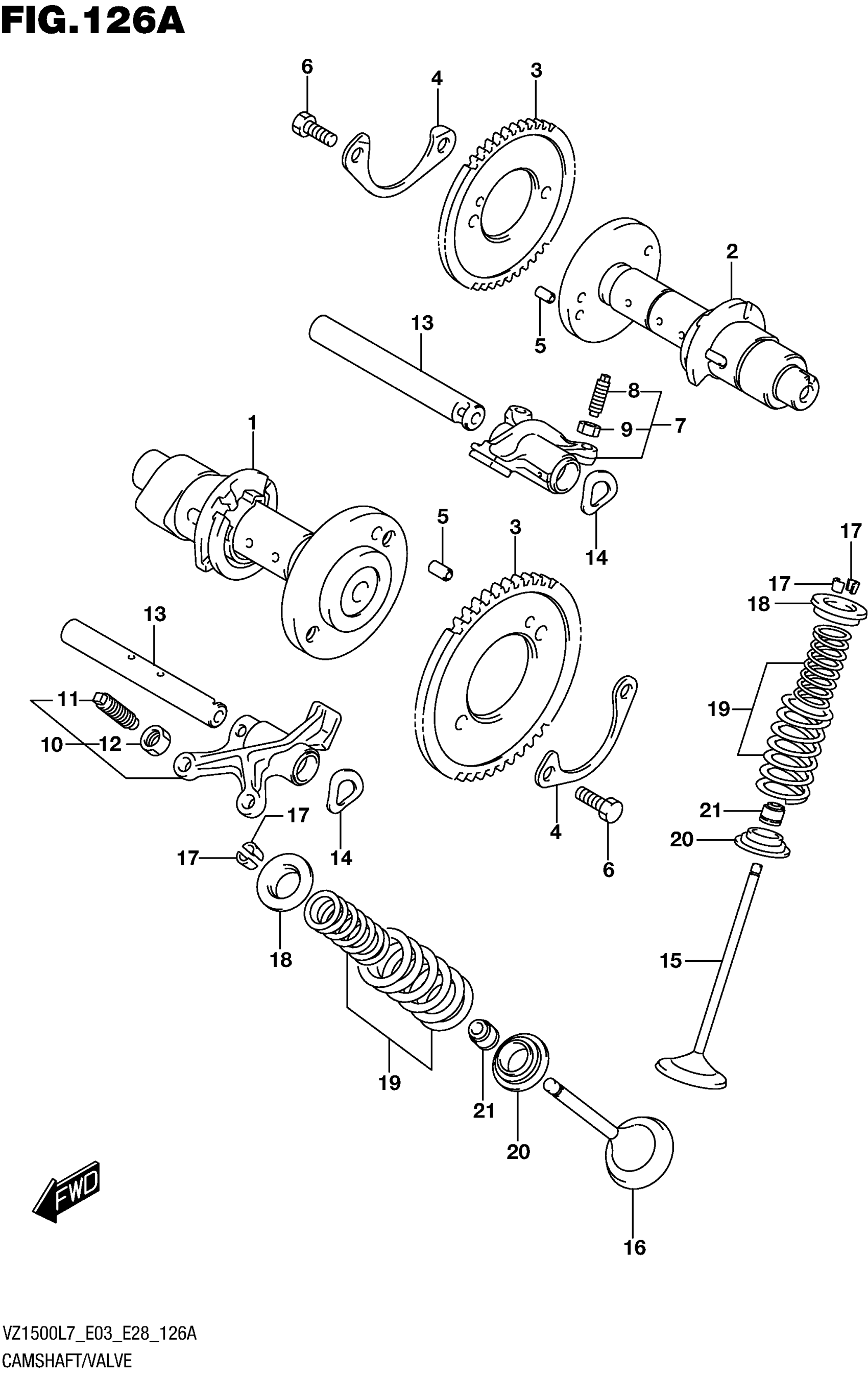

Suzuki VZ1500L7 (2017) CAMSHAFT/VALVE Diagram

CAMSHAFT, FRONT

CAMSHAFT, REAR

SPROCKET, CAMSHAFT FRONT

(NT:46)

WASHER

PIN

BOLT (6X12.5)

ARM, VALVE ROCKER INTAKE

.SCREW

.NUT, ADJUSTING SCREW

ARM, VALVE ROCKER EXHAUST

.SCREW

.NUT, ADJUSTING SCREW

SHAFT, VALVE ROCKER ARM

WASHER

VALVE, INTAKE

VALVE, EXHAUST

COTTER, VALVE

RETAINER, SPRING

SPRING SET, VALVE

SEAT,VALVE SPRING

OIL SEAL (5.5X11X8.2)
