2016 Suzuki VZ1500L6 Water Pump Diagram

← All diagrams

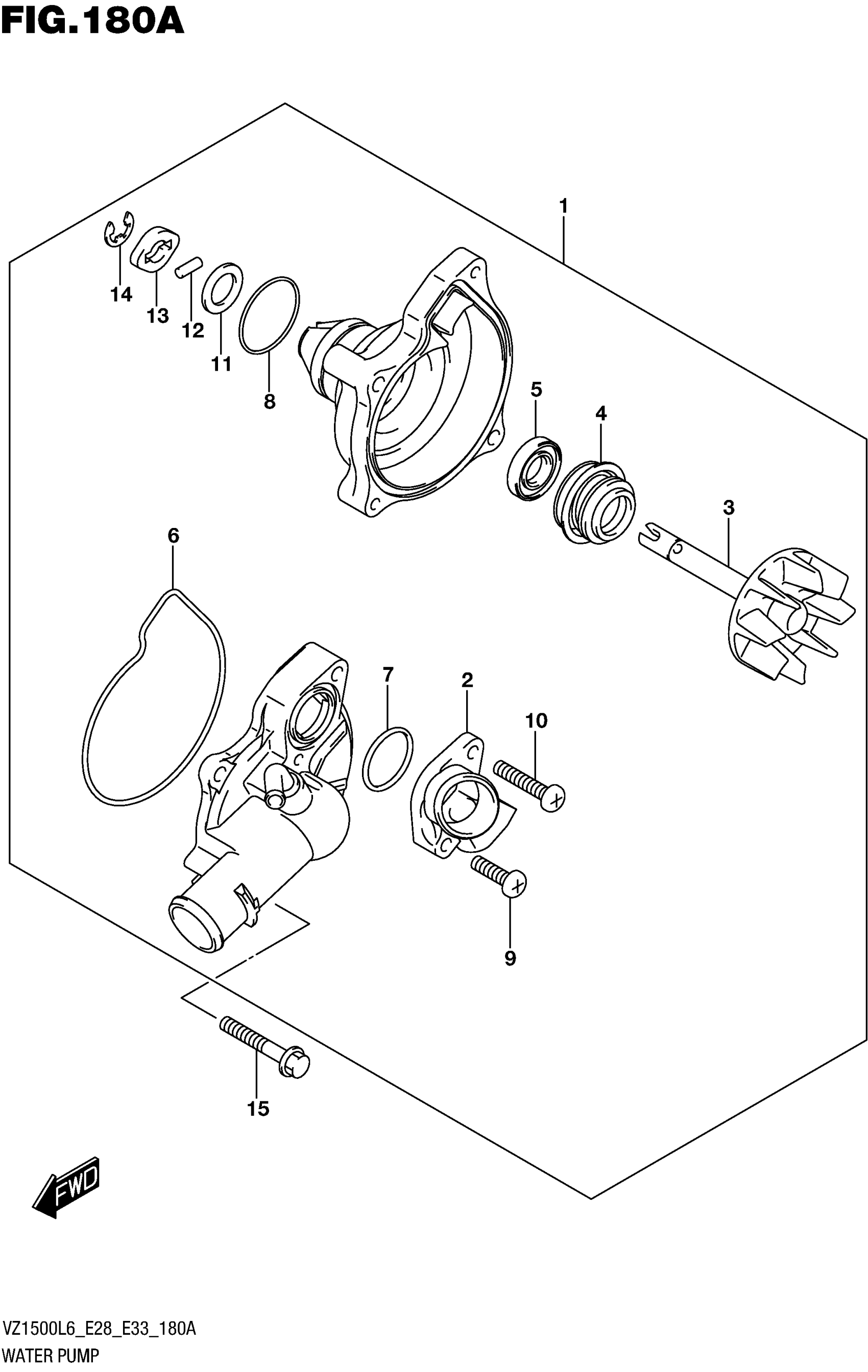

Find the part on the Water Pump diagram for your 2016 Suzuki VZ1500L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VZ1500L6 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER This part replaces 17400-40H00.

17400-40H01

1
Out of stock

2

.CONNECTOR

17412-40H00

1
Out of stock

3

.IMPELLER

17491-40H00

1
Out of stock

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

5

.SEAL,OIL (10X21X5)

17461-48G00

1
Out of stock

6

O RING This part replaces 17418-40H00.

17418-40H01

1
Out of stock

7

.O RING This part replaces 17417-38A00.

17417-38A01

1
Out of stock

8

.O-RING

17435-33400

1
Out of stock

9

.SCREW

02112-0620A

2

$1.55

In stock

10

.SCREW

02112-0635A

—
Out of stock

11

.WSHER

17432-07G00

1
Out of stock

12

.PIN

17482-03G00

1
Out of stock

13

.CAP

17432-11H00

—
Out of stock

14

.E-RING

08332-1108A

1
Out of stock

15

BOLT

01547-0645A

2
Out of stock
