2016 Suzuki VZ1500L6 Crankcase Cover Diagram

← All diagrams

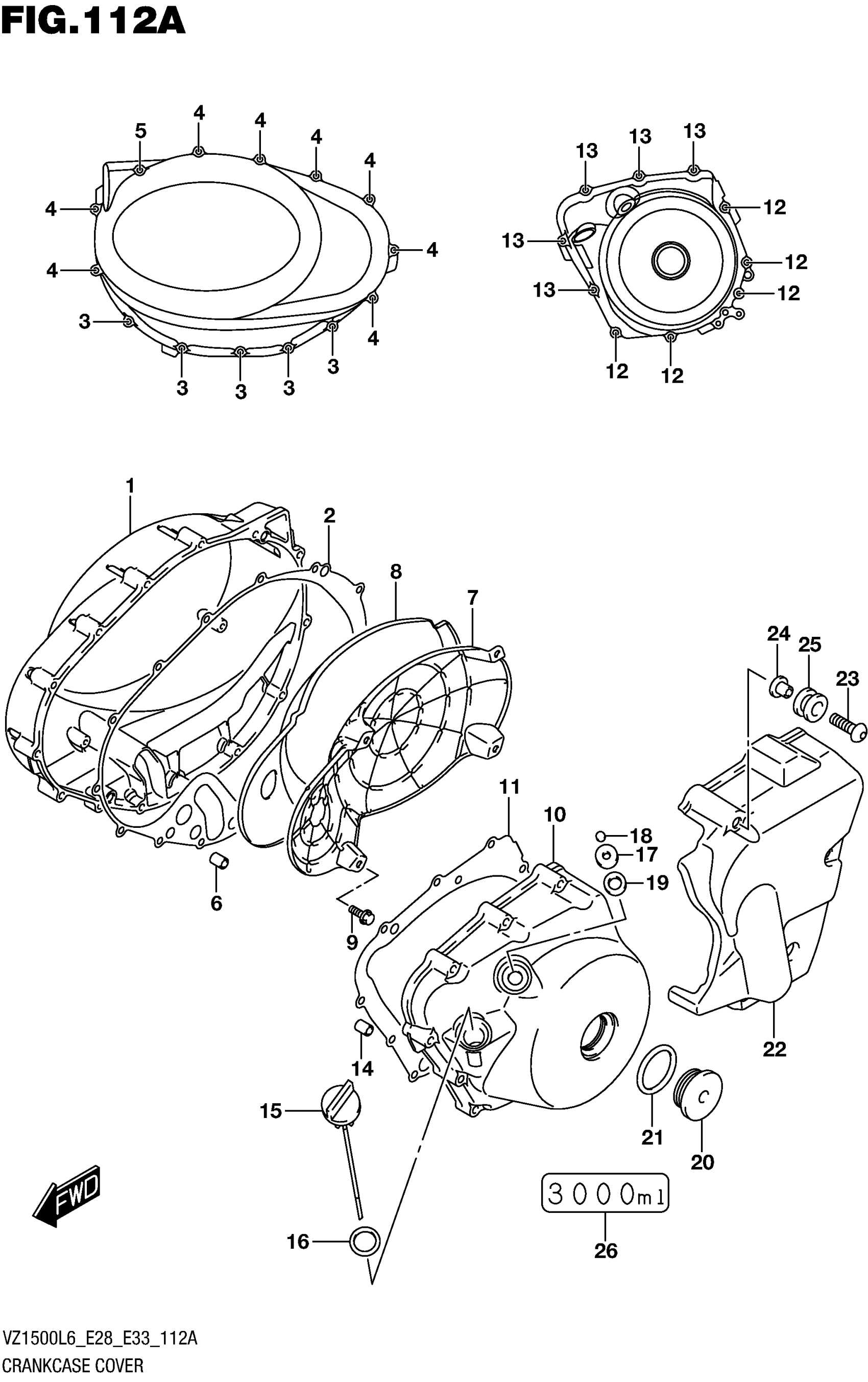

Find the part on the Crankcase Cover diagram for your 2016 Suzuki VZ1500L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VZ1500L6 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-40H20

1
Out of stock

2

GASKET, CLUTCH COVER

11482-40H00

1
Out of stock

3

BOLT (6X30)

09103-06213

5

$2.63

In stock

4

BOLT (6X40)

09103-06215

8
Out of stock

5

BOLT (6X50)

09103-06238

1

$2.85

In stock

6

PIN

04211-09189

2

$1.77

In stock

7

PLATE, CLUTCH COVER

11342-40H00

1
Out of stock

8

DAMPER, CLUTCH COVER

11343-40H00

1
Out of stock

9

BOLT

01547-0612A

4
Out of stock

10

COVER, MAGNETO

11351-40H20

1
Out of stock

11

GASKET, MAGNETO COVER

11483-40H00

1
Out of stock

12

BOLT (6X30)

09103-06213

5

$2.63

In stock

13

BOLT (6X40)

09103-06215

5
Out of stock

14

PIN

04211-09149

2
Out of stock

15

GAUGE, OIL LEVEL

11971-09403

1
Out of stock

16

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

17

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

18

CAP (OD:12)

09250-08012

1
Out of stock

19

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

20

PLUG (36X10)

09259-36008

1
Out of stock

21

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

22

COVER, SECONDARY DRIVE UNIT

11361-40H20

1
Out of stock

23

SCREW (6X20)

09139-06028

3

$3.58

In stock

24

WASHER

09169-06062

3
Out of stock

25

CUSHION

09320-09501

3
Out of stock

26

NOTE, ENGINE OIL

68322-40H00

1
Out of stock
