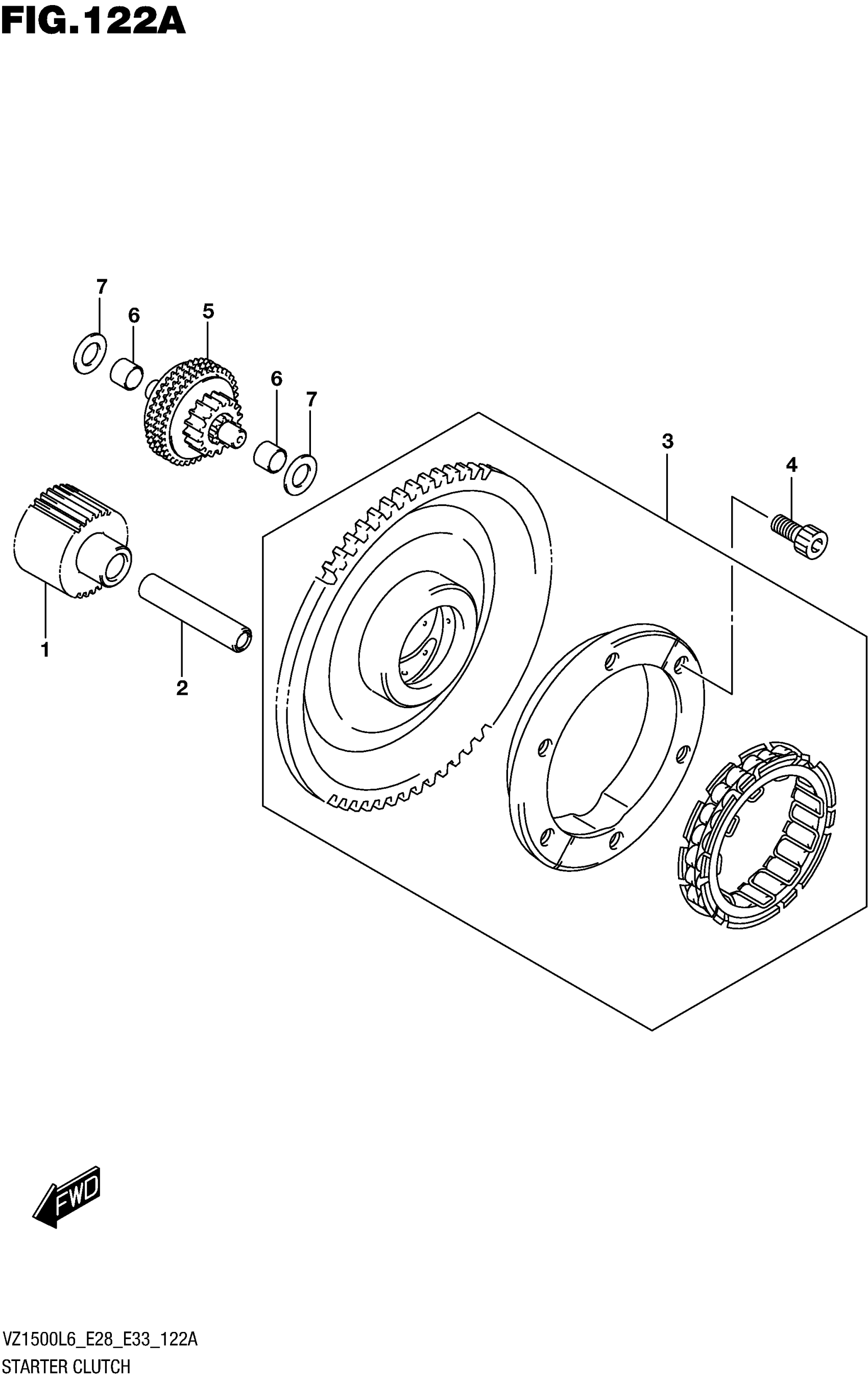

Suzuki VZ1500L6 (2016) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-10F00

Unavailable

1

(NT:31)

12611-10F00

Unavailable

2

PIN (7X11X55)

09206-11015

$12.92

3

CLUTCH SET, STARTER (NT:78)

12600-40840

Unavailable

4

.BOLT (8X16)

09106-08190

$2.88

5

LIMITER ASSY, STARTER IDLE

12600-24B01

$298.40

5

GEAR (NT:37)

12600-24B01

$298.40

6

BUSH

12618-31G00

$3.69

7

SHIM (10X20X1)

09181-10195

$2.00
