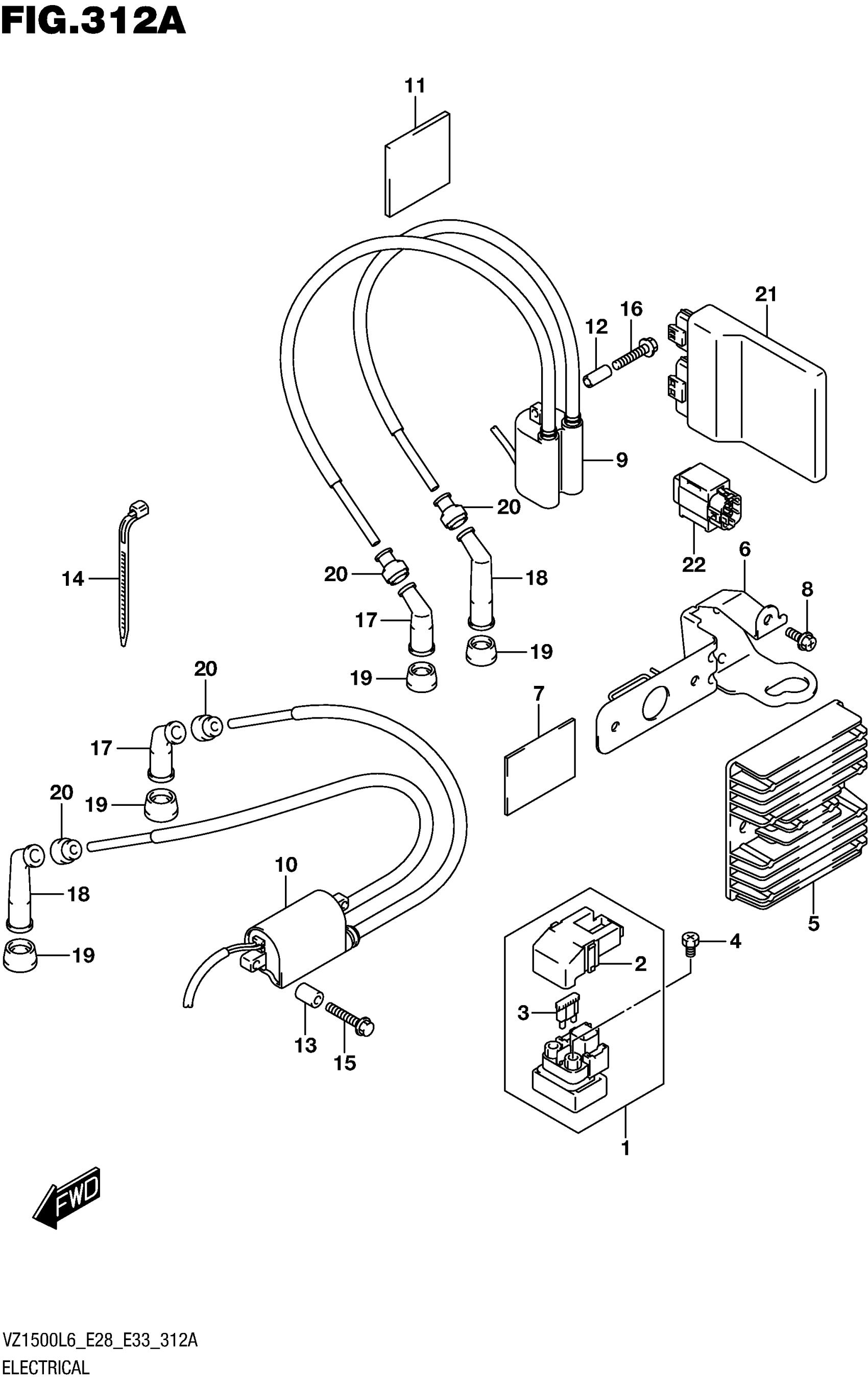

Suzuki VZ1500L6 (2016) ELECTRICAL (VZ1500L6 E28) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$61.62

2

.COVER

31861-47E00

$18.23

3

.FUSE (30A)

09481-30101

$2.28

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-10G30

$363.52

6

BRACKET, RECT FTG

32830-40H10

Unavailable

7

PROTECTOR,RECTIFIER | CUT AS REQUIRED

33652-07D00

$5.17

8

SCREW This part replaces 02162-0616A.

02162-0616B

$2.06

9

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$100.34

10

COIL ASSY, IGNITION, FRONT

33420-40H01

Unavailable

11

CUSHION, HIGH TENSION CORD

33442-41F00

Unavailable

12

SPACER (6.4X10X22)

09180-06178

$4.90

13

SPACER (6.2X12X16)

09180-06198

$4.70

14

CLAMP (L:165)

09407-18402

$2.21

15

BOLT

01547-0635A

$2.31

16

BOLT

01547-0640A

$2.31

17

CAP ASSY, SPARK (SIDE)

33510-38B00

$35.80

18

CAP ASSY, SPARK (CENTER)

33510-45010

$23.52

19

SEAL, SPARK PLUG

33541-47D00

$7.16

20

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

21

CONTROL UNIT, FI

32920-40HC0

$1,242.62

22

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31
