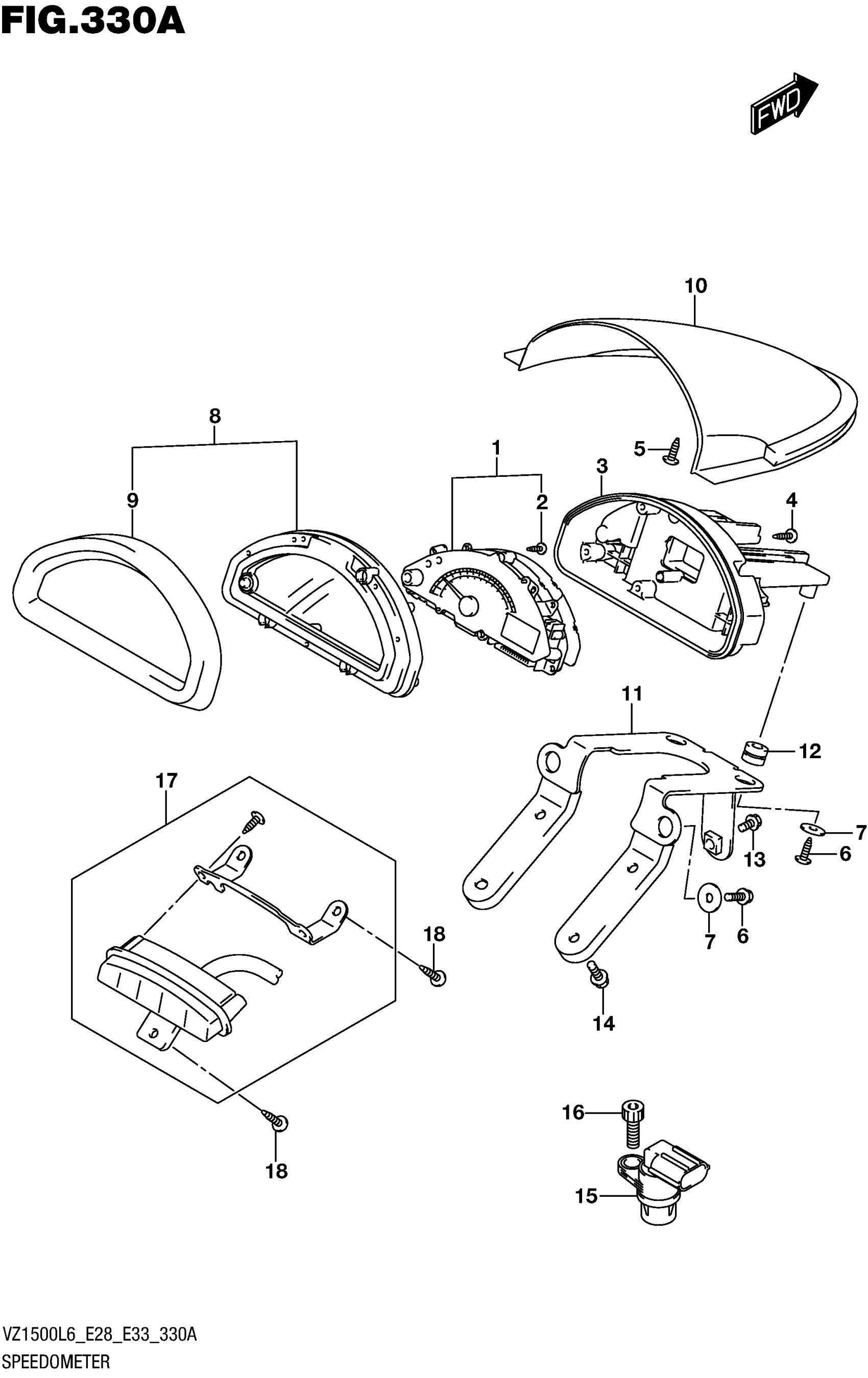

Find the part on the Speedometer diagram for your 2016 Suzuki VZ1500L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VZ1500L6 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COMBINATION METER

34120-40H00

—
Out of stock

2

.SCREW (3X14)

34149-03G00

4
Out of stock

3

COVER, CASE

34111-40H00

1
Out of stock

4

SCREW (3X14)

34149-03G00

5
Out of stock

5

SCREW (4X14)

34149-17E10

4
Out of stock

6

SCREW (5X16)

34149-40H00

4
Out of stock

7

WASHER (5.2X20X1.0)

34189-40H00

4
Out of stock

8

UPPER CASE

34150-40H20

1
Out of stock

9

.UPPER COVER

34256-40H20

1
Out of stock

10

LOWER COVER

34257-40H20

1
Out of stock

11

BRACKET

34952-40H00

1
Out of stock

12

DAMPER

34955-40H00

4
Out of stock

13

BOLT

01550-0610A

1
Out of stock

14

BOLT

07120-0612B

2
Out of stock

15

SENSOR, SPEED

34990-31G01

1
Out of stock

16

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

17

BOX ASSY, PILOT LAMP

36380-40H01

1
Out of stock

18

SCREW

03541-0512A

3
Out of stock
