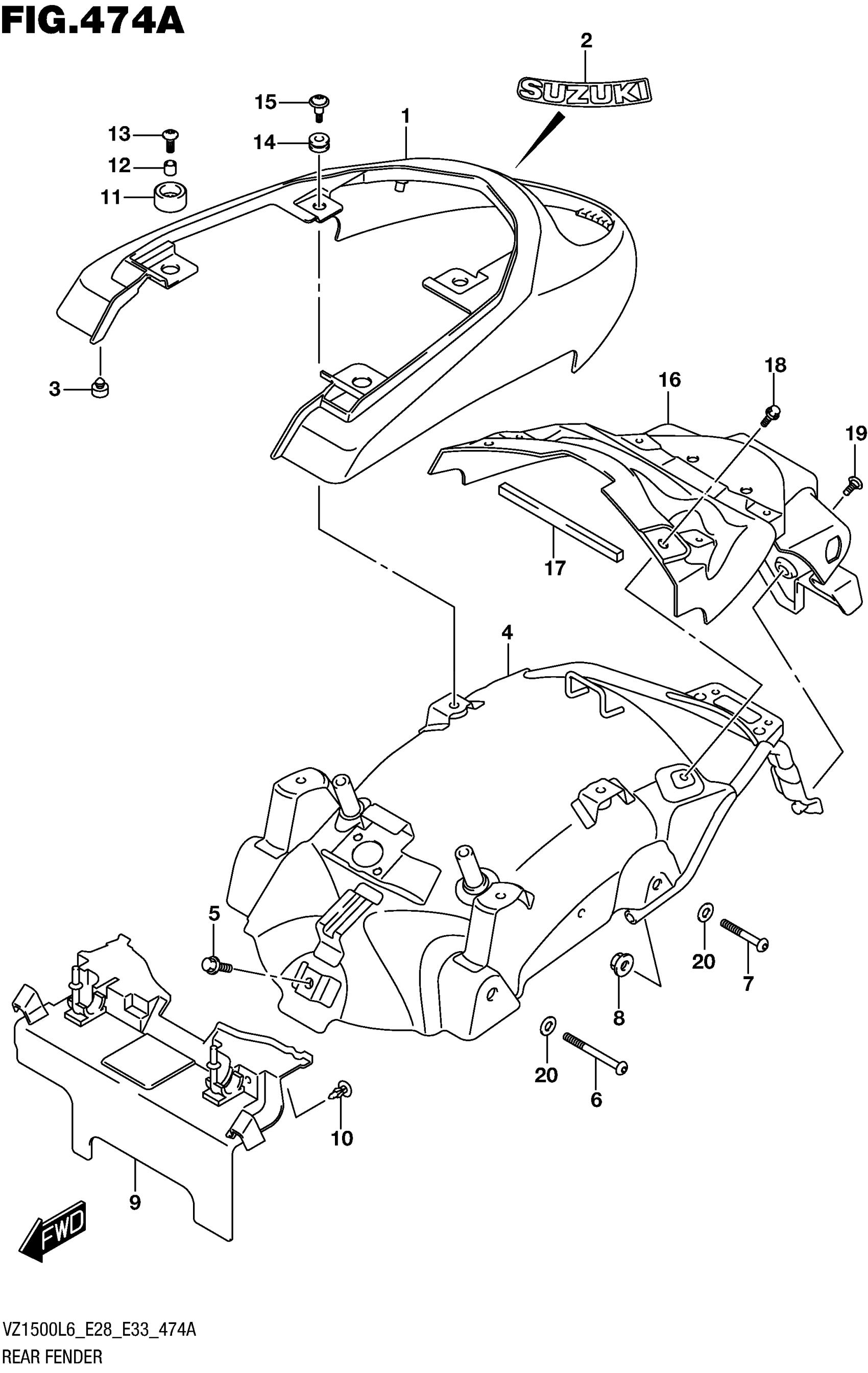

Suzuki VZ1500L6 (2016) REAR FENDER Diagram

#

Description
Price

1-1

FENDER,REAR | FOR YVB This part replaces 63110-40H00-6UX.

63110-40H01-6UX

$361.75

1-2

FENDER, REAR (RED) | FOR YYG

63110-40H00-YYG

$363.65

2-1

.EMBLEM,"SUZUKI" (GRAY) | FOR 6UX This part replaces 68641-19F00-YJH.

68641-19F01-YJH

$12.82

2-2

.EMBLEM,"SUZUKI" (BLACK) | FOR YYG This part replaces 68281-24F10-019.

68281-24F11-019

$10.89

3

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

4

BRACE, FENDER

63140-40H10

$431.08

5

BOLT (8X12)

01550-0812A

$2.32

6

BOLT (8X70)

09106-08182

$4.17

7

BOLT (8X50)

09106-08183

$3.70

8

NUT

08316-1008A

$2.45

9

MUDGUARD, FRONT

63112-40H00

Unavailable

10

CLIP

09409-06318

Unavailable

11

CUSHION

09320-10045

$3.76

12

SPACER (6.5X10X9.4)

09180-06286

$2.50

13

SCREW (6X16)

09139-06139

$3.23

14

CUSHION

09320-09016

$1.97

15

BOLT (6X20)

09139-06190

$4.17

16

EXTENSION

63311-40H00

$96.22

17

CUSHION

47161-29B00

$7.50

18

BOLT (6X12)

09111-06107

$2.60

19

SCREW (6X12)

09139-06144

$2.50

20

WASHER

08322-0108A

$1.92
