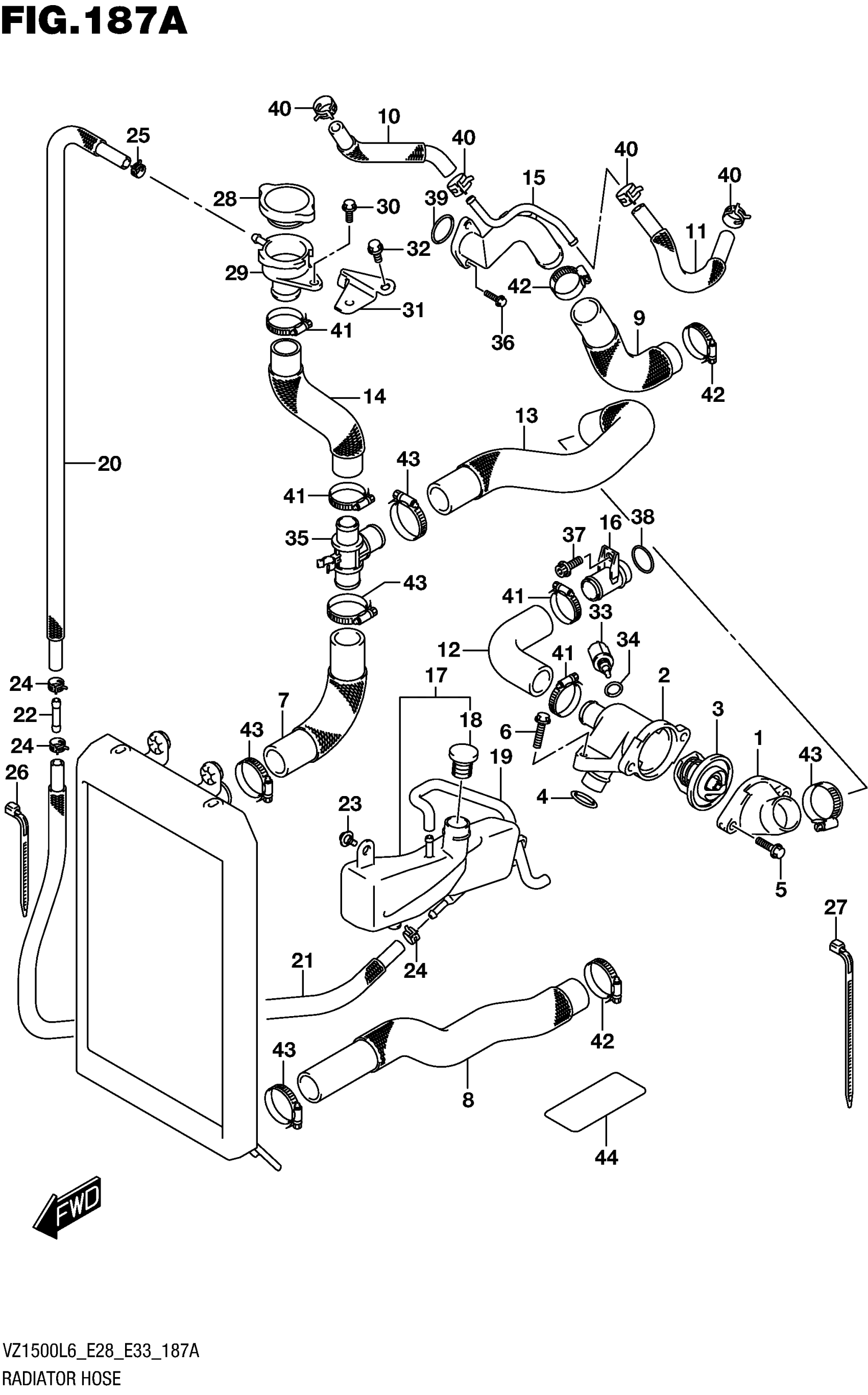

Suzuki VZ1500L6 (2016) RADIATOR HOSE Diagram

#

Description
Price

1

COVER, THERMOSTAT

17661-48G10

$29.83

2

CONNECTOR, THERMOSTAT INLET

17662-40H00

Unavailable

3

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$25.77

4

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

5

BOLT

01547-0620A

$2.03

6

BOLT

01547-0625A

$2.01

7

HOSE, RADIATOR INLET

17851-40H10

$26.40

8

HOSE, RADIATOR OUTLET

17852-40H00

$50.10

9

HOSE, CYLINDER INLET

17853-40H00

Unavailable

10

HOSE, WATER BYPASS UPPER

17854-40H00

Unavailable

11

HOSE, WATER BYPASS LOWER

17855-40H00

Unavailable

12

HOSE, REAR CYL HEAD OUTLET

17856-40H00

$23.63

13

HOSE, THERMOSTAT OUTLET

17857-40H00

Unavailable

14

HOSE, CONDUCTION

17858-40H00

$32.27

15

PIPE, CYL WATER INLET

17860-40H00

Unavailable

16

UNION

17890-06G20

$14.43

17

TANK ASSY, RESERVOIR

17910-40H00

Unavailable

18

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

19

HOSE, TANK OVERFLOW

17982-40H00

Unavailable

20

HOSE, TANK INLET NO.1

17981-40H00

Unavailable

21

HOSE (5X9X600) | L:600->500

09352-50901-600

$8.06

22

UNION

09364-06005

$5.72

23

BOLT (6X12)

09111-06085

$4.54

24

CLIP

09401-08411

$1.78

25

CLIP

09401-10411

$2.80

26

CLAMP (L:125)

09407-14403

$2.26

27

CLAMP (L:190)

09407-19401

$3.05

28

CAP

17730-14G00

$42.83

29

CONDUCTION

17791-14G00

$23.47

30

BOLT

01547-0512A

$1.49

31

BRACKET

17792-40H00

Unavailable

32

BOLT

01547-0612A

$2.03

33

SENSOR, WATER TEMP

13650-49X00

$90.19

34

GASKET (12X17X1)

09168-12017

$1.95

35

JOINT, 3 WAY

17891-48G00

$11.37

36

BOLT (6X16)

09103-06274

$2.03

37

BOLT

07130-0612A

$2.50

38

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

39

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

40

CLIP

09401-12414

$3.26

41

CLAMP

09402-32512

$12.85

42

CLAMP

09402-38512

$11.72

43

CLAMP

09402-35501

$7.29

44

TAPE

63131-10F00

$14.02
