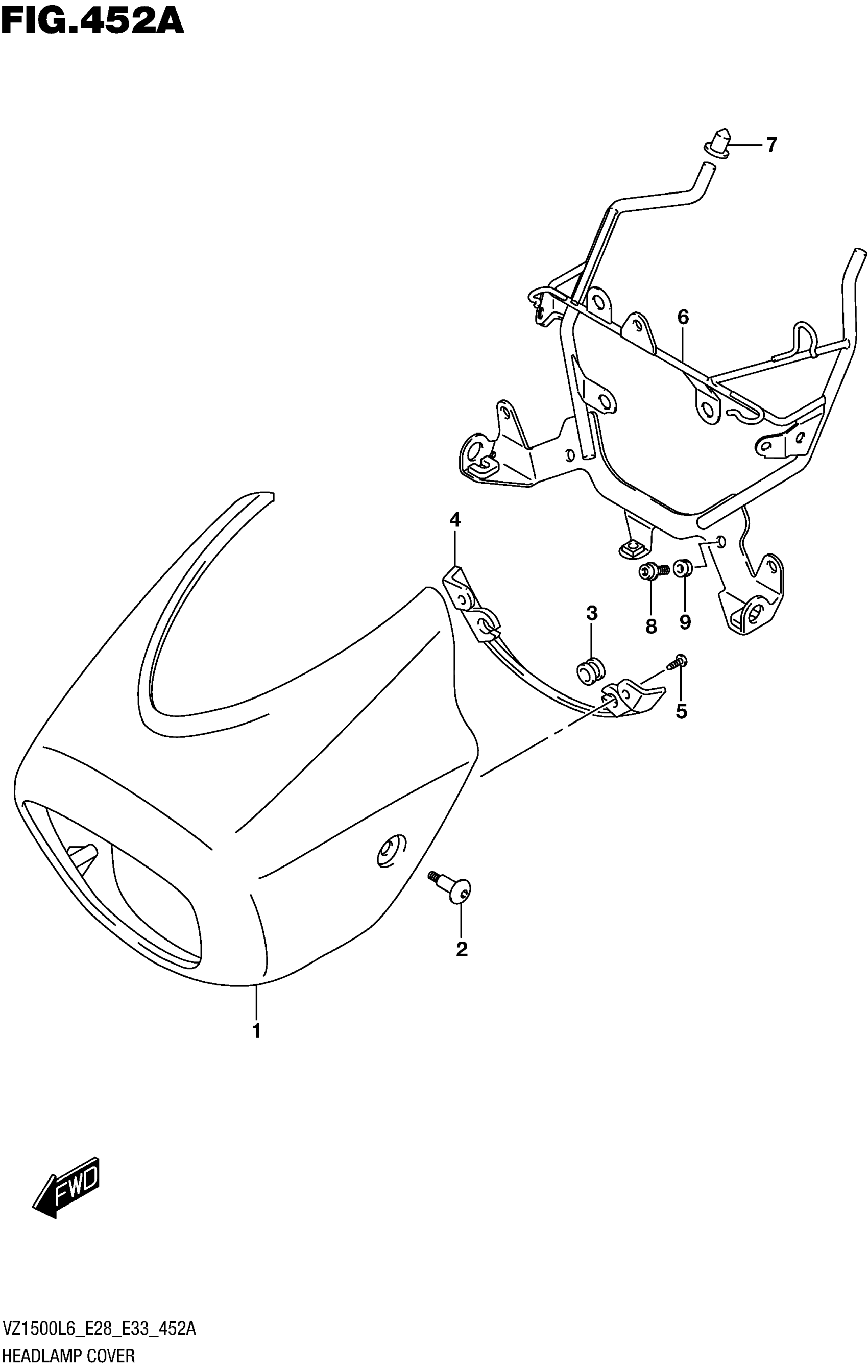

Suzuki VZ1500L6 (2016) HEADLAMP COVER Diagram

#

Description
Price

1-1

COVER, HEADLAMP (BLACK)

51811-40H00-YVB

$246.48

1-2

COVER, HEADLAMP (RED)

51811-40H00-YYG

$210.68

2

SCREW (6X22)

09139-06191

$4.03

3

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

4

PLATE

51812-40H00

$14.95

5

SCREW

03541-0516A

$1.49

6

BRACE, COVER

51850-40H10

$282.45

7

CUSHION

51831-21D00

$4.58

8

BOLT

07120-0816A

$3.05

9

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10
